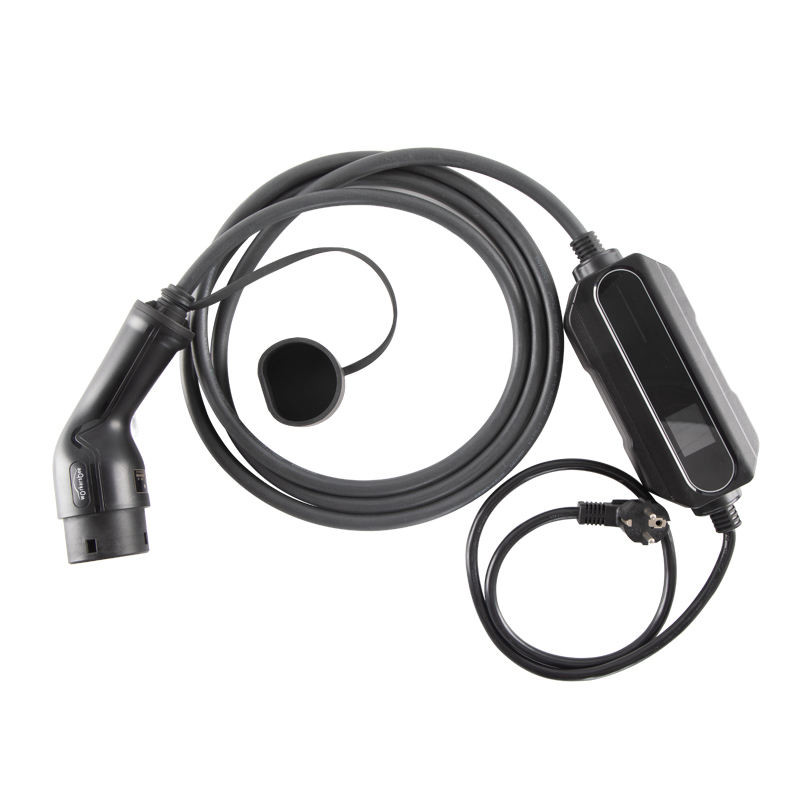

IEC 62196-2 Single Phase Type 2 Electric Car Charging Cable
IEC 62196-2 Single Phase Type 2 Electric Car Charging Cable
Contact Now

Detail Information
Product Name: EV Charger Charging Station Cable Length: 5M(16.4ft)
Charging Capacity: Up To 22KW Charging Standard: IEC 62196-2
Operating Temperature: -30℃~+50℃ Current: 8A 10A 13A 16A 32A
Nsulation Resistance: >1000MΩ Charging Standard: Level 1 Level 2 Level 3
High Light:

Single Phase type 2 charging cable

,

IEC 62196-2 type 2 charging cable

,

IEC 62196-2 electric car charging cable

Product Description

Ev Charger Cable Single Phase Level 2 Connector Chargers Gun



1. 3.6kw, 7.2kw ,11kw, 22kw with 5m black white cable, or customized, meet IEC 62196-2 standard
2. Higher safety level, support outdoor using
3. Authoritatively certificated from CE, CCC, ROHS and so on
4. 1-year warranty for after-sale service
5. Customized service on LOGO, length, color and inner box



Customized Serivce

Products accept OEM, ODM and related customization. Acceptable custom parts include but are not limited to.
· The color of the plug, LOGO
· Cable length, color, LOGO
· The pattern on the packing carton, LOGO



Cautions

· The charging cable is only for EV charging using
· Don't submerge the charging cable in water
· Don't put finger into the charging plug
· Don't use the device when the cable is damaged
· Don't dis-assemble or refit the product



Applied Materials
Shell Material:thermoplastics flame retardant grade UL94-voContact bush: Copper alloy, silver plating
Pin: Copper alloy silver + thermoplastic on the top



Features
1. Conform to the provisions and requirements of 62196-2 IEC 2010 SHEET
2-lle.
2. Product assembly conforms to IEC 61851-1 -2010 charging mode 3 connection mode B2.3.Reliable materials,flame retardant,pressure resis-
tance, abrasion resistance ,impact resistance,lmpact resistance and oil resistance.
3. Excellent protection performance,IP65 protection level of the plug (work-



Wallbox Product parameters
Product Name
7kw 11kw 22kw Wallbox AC Fast Electric EV Charging Station EV Car Charger
standrd
IEC standard
certificates
TUV,UKCA,CE,FCC
Product Type
FE-AM3-16
FE-AM3-16P3
FE-AM3-32
FE-AM3-32P3
AC Voltage Power Input
240v±10%
380V±10%
240v±10%
380V±10%
AC Power Output
16A/3.5kw
16A/11KW
32A/7KW
32A/22KW
Current Adjustable
8-16A
8-16A
8-32A
8-32A
Rated Frequency
50/60HZ
Charging Connector
IEC 62196-2 (Type 2/Mennekes) plug
Connector Type
SAE J1772 (Type 1)
IEC 62196-2 (Type 2)
Internet Connection
NFC/wifi
Insulation resistance:
>1000MΩ(DC500V)
Contact Resistance
0.5mΩMax
Operating temperature:-
-30℃~+50℃
Protection:Type B RCD
Over Voltage Protection
yes
Under Voltage Protection
yes
Over Load Protection
yes
Short Circuit Protection
yes
Earth Leakage Protection
yes
Ground Protection
yes
Over-temp Protection
yes
Surge Protection
yes
Charging Cable Length
5m or Customize Length
Application:
AC Home Charging
IP Degree
IP55
Control:
Auto/Button/Card
Withstand voltage:
2000V
Contact Resistance
0.5mΩMax
Mechanical life:
no-load plug in / pull out > 10000times



IEC 62196-2 Single Phase Type 2 Electric Car Charging Cable 0

IEC 62196-2 Single Phase Type 2 Electric Car Charging Cable 1
