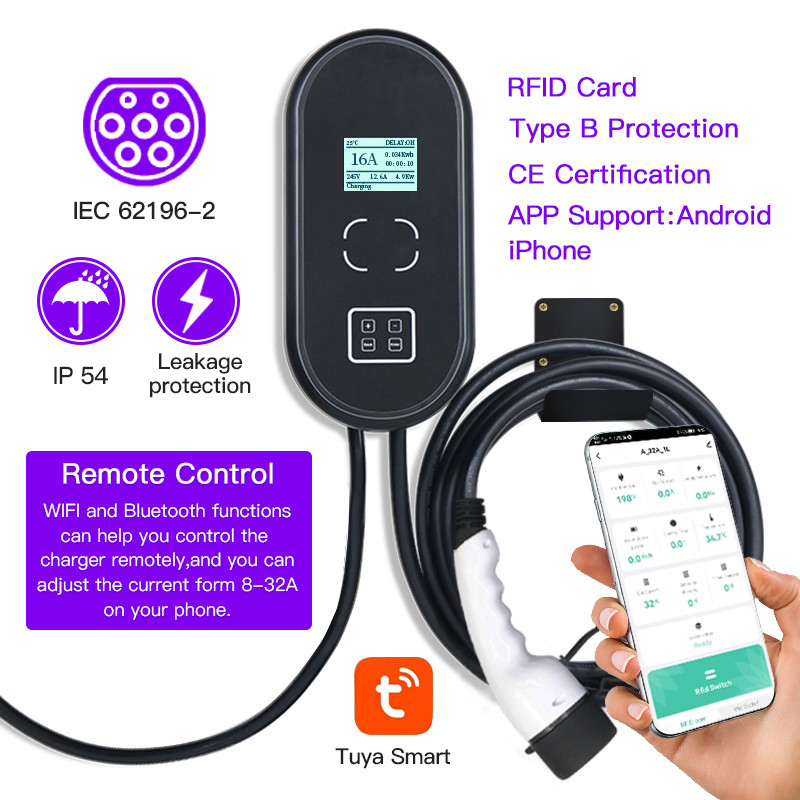

11KW 32A Ac Domestic Electric Charging Point OCPP 1.6 Ac Wall Box Charger

Contact Now

Detail Information
Product Name:	Home Car Charging Point	50Hz/60HZ Average Trouble-free Time 8760 Hours Charging Capacity Up To 22KW Operating Temperatur:	50Hz/60HZ
Output Power:	11KW/22KW	Input Voltage:	230vac± 10% / 380vac ± 10%
Charging Port:	3 Ports, 2 Ports, 1port, 4 Ports, Type C	IP:	IP65
Standard:	IEC 61851-1, IEC 62196-1/2	Protocol:	OCPP-1.6 (JSON)
High Light:	11KW 32A domestic electric charging point , domestic electric charging point OCPP 1.6 , 60HZ ac wall box charger

Product Description

16A 3P 11KW Electric Car Charging Station EV Charger Wall Box 400V

Each charger will be fully inspection to ensure product performance in good condition:

Product Definition		Electric Parameter
Stadnard	IEC 62196-2:2016/	Rated Current	32A
	SAEJ1772
Charging Mode	Mode 3	Rated Voltage	250V
Connector Manner	B	Power Pin Numbert	3 ( L, N, PE )
Current Type	AC	Signal Pin Numbert	2 ( PP, CP )
Housing Color	white	Signal Pin Current	2A
Cable Color	Black	Insulation Resistance	≥5MΩ
Ambient Condition		Mechanical Performance
AmbientTemperature	-30℃--50℃	Insertion & Pullout Times	＞10000 times
( working )
AmbientTemperature	-40℃--80℃	Insertion & Pullout Force	45N～100N
( storage )
Ingress Protection	IP54	Withstanding Impact Force	Affordable 1 meter height fell or 2 ton car run over presure

Withstand voltage insulation test - start high voltage machine test
Charging preparation -- measuring input voltage
Charging connection confirmation - measuring resistance
Ready to charge - measure current
Ready to charge - measuring frequency
Start up and charging stage - measure the output voltage
Start up and charging phase - measuring output current
Normal charge end test - measure output voltage
CP Disconnection Test: measure the output voltage after resuming charging
CP ground test - measure output voltage
Input overvoltage protection - measure output voltage
Input overvoltage protection - automatic recovery function, measuring output voltage
Input undervoltage protection - measure output voltage
Input undervoltage protection - automatic recovery function, measuring output voltage
Leakage protection - measuring output voltage
Overcurrent protection - measuring output current
Over current protection - automatic recovery function, measuring output current
