Product Description

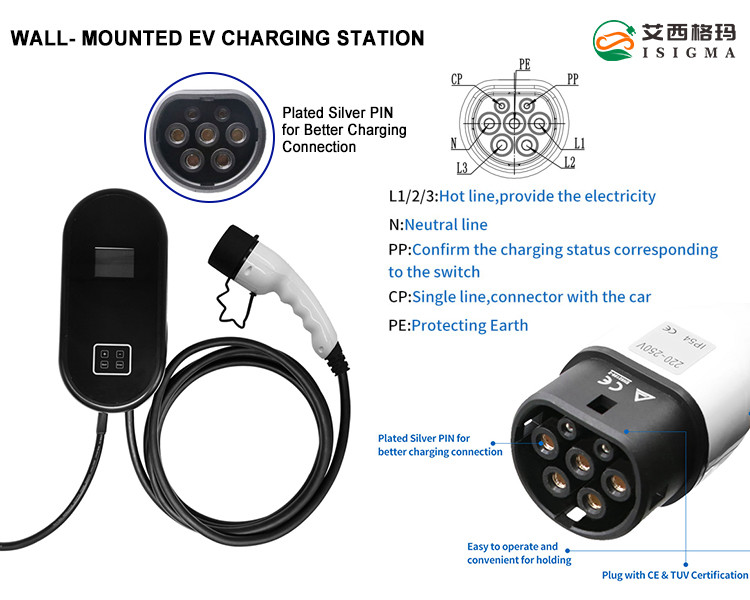

Wall Mounted Smart EV Charger Station Home Commercial Condo Residential Buildings

Brief manual

1. Insert the power plug into outlet, make sure the socket with reated current below 16A/32A
2. Press the Amp Selection button for test the current.Choose the current type you need.
3. Insert the vehicle connector charging gun into your vehicle's inlet.
4. The screen showing CONNECTED, then start charging.
5. Middle bottom you can make time delay chose the 1-9hour charge later.
6. Right bottom you can choose charging hours.

HIGH COMPATIBILITY
Our EV charger is compatible with the standard, IEC 62196-2 standard or KIAB GB/T 20234.2 standard and SAE J1772 standard

LCD SCREEN
The screen can show you the real-time charging date including charging time, voltage, current, power and tempera-ture of the AC EV Charger.

SAFE AND RELIABLE
The EV Charger has passed the strict test of CE and has multiple protection including overoltage, undervoltage, over-heating, overload, short circuit, leakage, lightning protection.

RFID FUNCTION
The EV Charger supports RFID function. start and stop through the RFID card and prevent the unauthorized use of the cardless user.

ROBUST ENCLOSURE
Water proof level IP55. You can use the even in rainy days.The shell is made of PA, light but robust, so it will not be easily damaged. The EV Charger uses anti-theft screws. You can add a lock at the EV Charger to prevent lost.

CMS
LAN or 4G. On the platform, you can formulate price templates, manage RFID cards, monitor and manage EV Charger, and display all operation records.
