220V 32A 7KW 11KW Ev Home Car Electric Charger Home Wall Mounted IP65

Contact Now

Detail Information
Product Name:	Home Car Charging Point	Enclosure:	Plastic PC940/ Galvanized Steel
Charging Capacity:	Up To 22KW	Input Voltage:	230vac± 10% / 380vac ± 10%
Charging Interface:	Type 2 Cable 5M	IP:	IP65
Function:	Voltage Monitoring, Temperature Monitoring, LCD SCREEN, AUTOMATICAL REPAIR, Leakage Protection	Charging Standard:	Level 1 Level 2 Level 3
High Light:	IP65 220V 32A car electric charger home , IP65 7KW 11KW car electric charger home , 11kw ev home charger IP65

Product Description

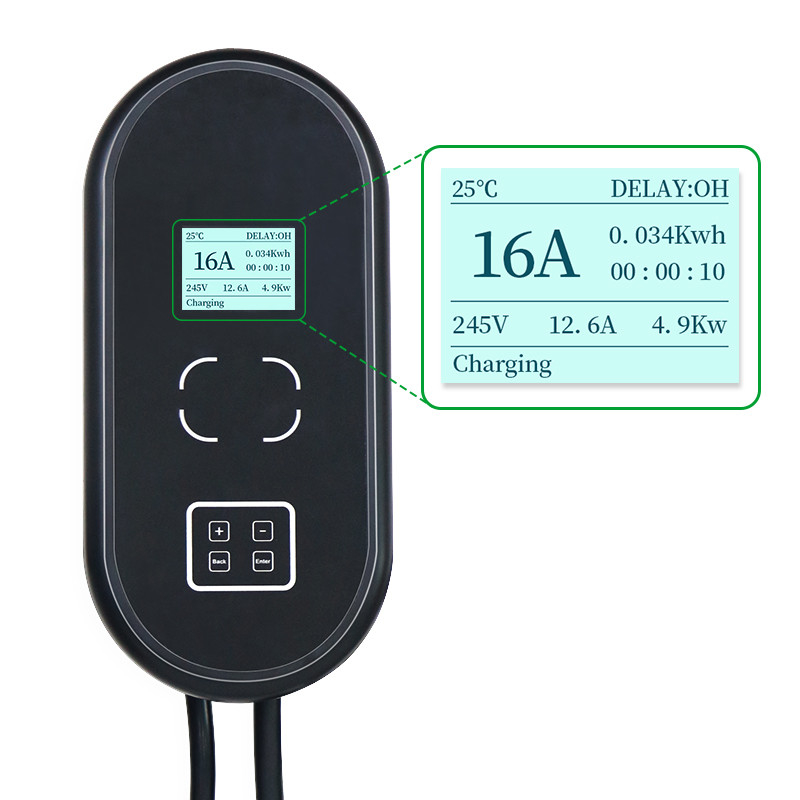

220V 32A 7KW 11KW Wall Mounted EV Charger Station

Main features:

Simple installation: no complicated installation process is required, it can be used when power is connected. △Wide Compatibility: compatible with AC charging and Tesla three-phase charging on the market. Charging Function: adaptive 220V/380V power supply. Emergency Stop Button: equipped with emergency stop button on the side to ensure charging safety. ☎️WARRANTY — 24-month warranty and life-time hassle-free technical support.

Products Description

Model	KW-PEVC2107
Material	ABS+PC
Installation	Wall-mounted/floor-standing
Size	Wall-mounted: 270132362mm(WDH) Floor-standing: 2701941500mm(WD*H)
Protection	IP55
Input/Output	220VAC±20%/ 50Hz±5Hz
Output current	32A	16A
Output Power	7KW	3.5KW
Cable length	5 Meters (Custom)
charging method	Swipe card
Charging connection method	Mode C (with gun)
Communication method	Blue tooth, WIFi, Ethernet/4G (Optional)
Protective function	Over voltage protection, over current protection, short circuit protection, lightning protection, emergency stop protection, PE connection detection protection, LIN reverse connection detection protection, over temperature protection, anti-dumping protection, leakage protection (A type leakage MCB)
Operating temperature	-30℃-60℃
Storage temperature	-40℃-85℃

Control box

Leakage protection
Over voltage/under voltage protection
Over load protection
Lighting protectionAmperew options
1. Fix ampere 10A
2. Fix ampere 16A
3. Fix ampere 32A
4. Adjustable 6-8-10-13-16A
5. Adjustable 10-16-20-24-32A
6. Adjustable 10-16A
7. Adjustable 6-8-10-13A
8. Adjustable 6-8-10-15A
9. Adjustable 6-8-10A
