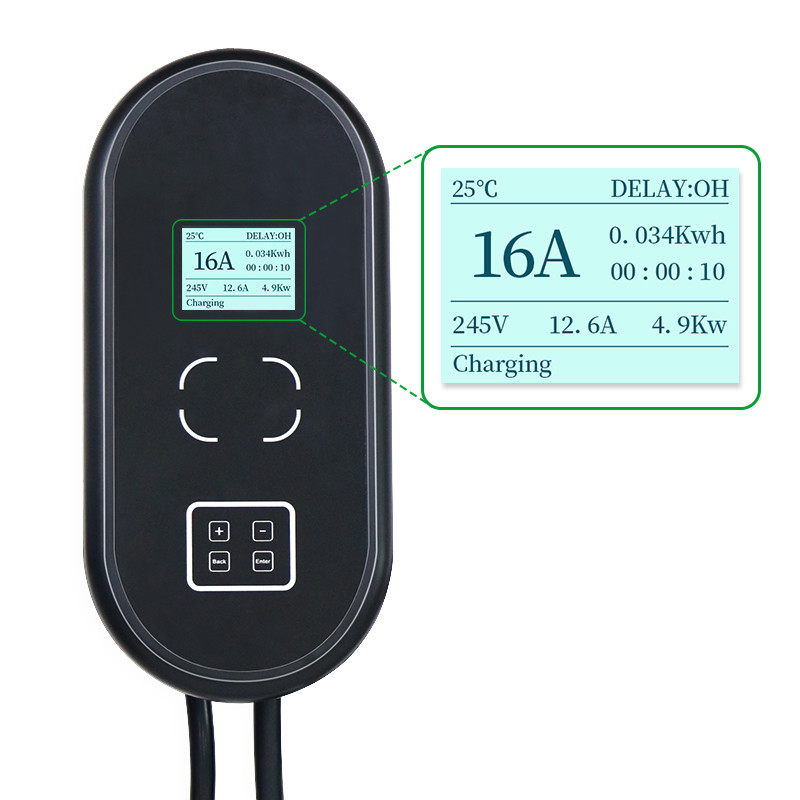

16A 22KW Car EV Charger IEC 7KW 11kw Home Car Charger Domestic Electric Car Charging Point

Contact Now

Detail Information
Product Name:	22kw Car Charging Point	Function:	Screen Display, RFID
Charging Capacity:	Up To 22KW	Input Voltage:	230vac± 10% / 380vac ± 10%
Operating Temperature:	-30 ℃ To 55 ℃	IP:	IP65
Connector:	Type2 Plug	Mechanical Life:	10000 Times
High Light:	16A 22KW Car EV Charger , Car EV Charger IEC 7KW , 11kw home car charger

Product Description

Wallbox Smart EV Charger Station 7KW 11KW 22KW Home Car Charging Point

Lighting protection Amperew options

1. Fix ampere 10A
2. Fix ampere 16A
3. Fix ampere 32A
4. Adjustable 6-8-10-13-16A
5. Adjustable 10-16-20-24-32A
6. Adjustable 10-16A
7. Adjustable 6-8-10-13A
8. Adjustable 6-8-10-15A
9. Adjustable 6-8-10A

Wallbox Product parameters
Product Name	7kw 11kw 22kw Wallbox
standrd	IEC standard
certificates	TUV,UKCA,CE,FCC
Product Type	FE-AM3-16	FE-AM3-16P3	FE-AM3-32	FE-AM3-32P3
AC Voltage Power Input	240v±10%	380V±10%	240v±10%	380V±10%
AC Power Output	16A/3.5kw	16A/11KW	32A/7KW	32A/22KW
Current Adjustable	8-16A	8-16A	8-32A	8-32A
Rated Frequency	50/60HZ
Charging Connector	IEC 62196-2 (Type 2/Mennekes) plug
Connector Type	SAE J1772 (Type 1)		IEC 62196-2 (Type 2)
Internet Connection	NFC/wifi
Insulation resistance:	>1000MΩ(DC500V)
Contact Resistance	0.5mΩMax
Operating temperature	-30℃~+50℃
Protection:Type B RCD
Over Voltage Protection	yes	Under Voltage Protection		yes
Over Load Protection	yes	Short Circuit Protection		yes
Earth Leakage Protection	yes	Ground Protection		yes
ver-temp Protection	yes	Surge Protection		yes
Charging Cable Length	5m or Customize Length
Application	AC Home Charging
IP Degree	IP55
Control:	Auto/Button/Card
Withstand voltage:	2000V
Contact Resistance	0.5mΩMax
Mechanical life	no-load plug in / pull out > 10000times
