3 Phase 62196-2 Type 2 Ev Cable Plug And Play 3 Ports
3 Phase 62196-2 Type 2 Ev Cable Plug And Play 3 Ports
Contact Now

Detail Information
Product Name: Charging Station For Electric Vehicle 50Hz/60HZ Average Trouble-free Time 8760 Hours Charging Capacity Up To 22KW Operating Temperatur: 50Hz/60HZ
Charging Power: 3.5KW/7KW/11KW/22KW Voltage: 220V 250V 380V
Operating Temperature: -30 ℃ To 55 ℃ Start Method: "Plug And Play" Or RFID Card
Output Current Range: 0~32A Charging Port: 3 Ports, 2 Ports, 1port, 4 Ports, Type C
High Light:

3 Phase type 2 ev cable

,

Plug and play type 2 ev cable

,

3 Phase type 2 ac charger

Product Description

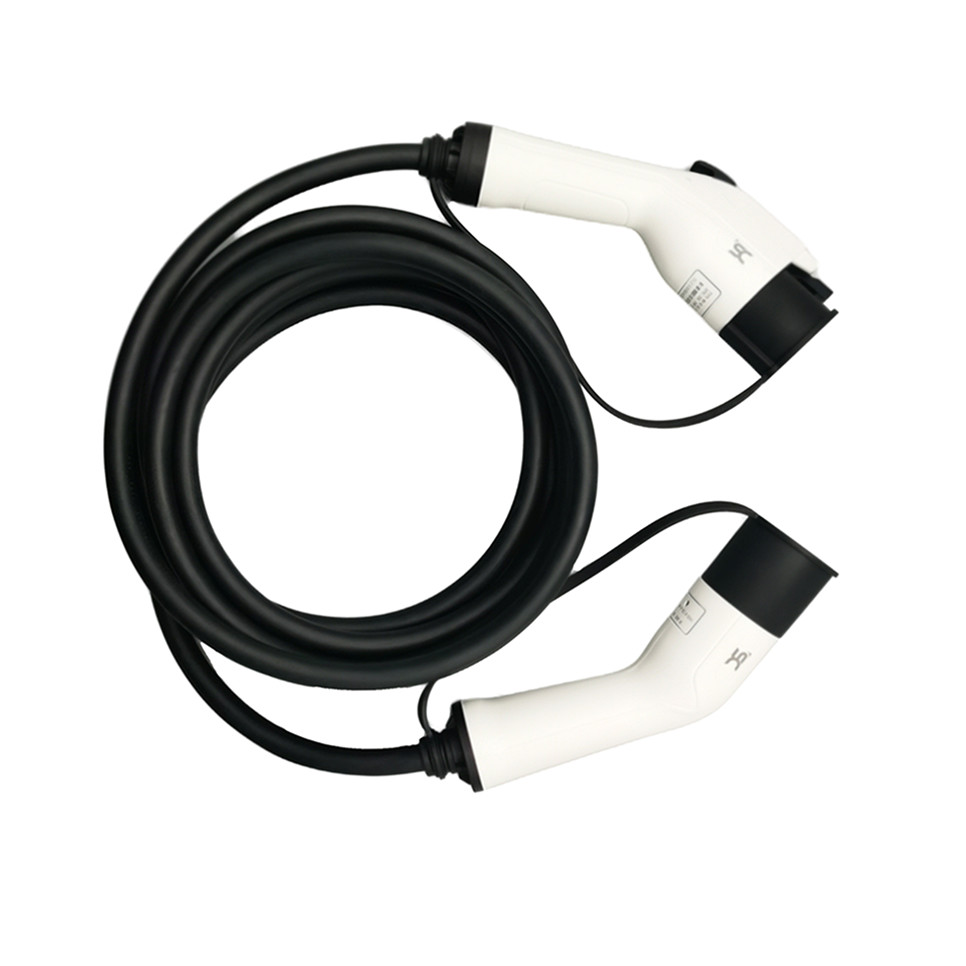

3 Phase 62196-2 Electric Vehicle Charging Cable Type 2 Charging Cable For Ev



  • EPOXY RESIN FILLED PLUGS: Creates a solid mass that fills the hollow spaces inside the plug to dissipate heat evenly and avoid over heating of the charging contacts. The sealed resin fill also improves water resistance.
  • fisher32A 3 phase 62196-2 electric vehicle charging cable type 2 charging cable for ev BEND RESISTANT CABLE STRAIN RELIEF: Protects against damage to the charging cable from over bending at the point the cable enters the plug
  • fisher32A 3 phase 62196-2 electric vehicle charging cable type 2 charging cable for ev ROBUST & FLEXIBLE CABLE: Internal cable wiring is padded to fill all available space inside the cable, reducing stress during bending and twisting of cable. Optimised insulation thickness to ensure durability, safety and maximum flexibility.
  • fisher32A 3 phase 62196-2 electric vehicle charging cable type 2 charging cable for ev CHIP RESISTORS: More stable than standard ‘axial’ resistors which can be vulnerable to fracturing if the plug is hit violently or dropped from a height.

Specification
Wall Mounted EV Charger Power Specification

EU Standard
Charging Connector Type
IEC 62196-2 (Type 2)
AC Power Input Rating
1 Phase
3 Phase
230V±15%
380V±15%
AC Power Output Rating
3.5kw/16A
11kw/16A
7kw/32A
22kw/32A

43kw/63A
Frequency Rating
50/60 Hz
User Interface & Control
Emergency Stop Button
Yes
Plug-and-Charging
Yes
RFID Card Charging
Yes
App Charging
Yes
Ethernet Interface
Yes
Wifi Function
Yes
OCPP Protocol
OCPP 1.6
4.3-inch LCD Screen
Optional
Protection
Over Voltage Protection
Yes
Under Voltage Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
Earth Leakage Protection
Yes
Ground Protection
Yes
Over-temp Protection
Yes
Surge Protection
Yes
RCD
Type B


Environmental
Storage Temperature
-40 ~ 75℃
Operating Temperature
-30 ~ 55℃
Operating Humidity
Up tp 95%, non-condensing
Altitude
≤2000m
Cooling Method
Natural Cooling


BC-EV32P Wallbox Mechanical
IP Code
IP65
Dimension(H×W×D,mm)
420×310×24
Weight
12kg
Charging Cable Length
5m or Customize
Enclosure Material
Front-panel: Tempered Glass, Back-cover: Plate Metal
BC-EV32P Mounting Pole(Optional)
Dimension(H×W×D,mm)
1400×200×100
Weight
＜8kg
Enclosure Material
Metal





All products must pass the following inspection before leaving the factory:


1. Function test:
A.charging function control test,
B.communication function test,
C.insulation detection function test,
D.vehicle plug locking function test,
E.pre-charging function test


2. Charging output test:
A.four ui large constant power output test,
B.power control test,
C.low-voltage auxiliary power test,
D.output current response time test,
E.transmission out current stopping rate test,
F.efficiency test,
G.power factor test.


3. control guide test:
A.charging control state test,
B.charging connection control timing test,
C.control guide voltage limit test,
D.communication interruption test,
E.protection grounding continuity loss test,
F.connection detection signal disconnection test,
G.battery voltage and communication message match test,
H.battery voltage exceeds the charger range test,
I.draw battery two protection function vehicle zu high allowable total voltage mismatch test,
J.charging demand is greater than Battery parameters test.
