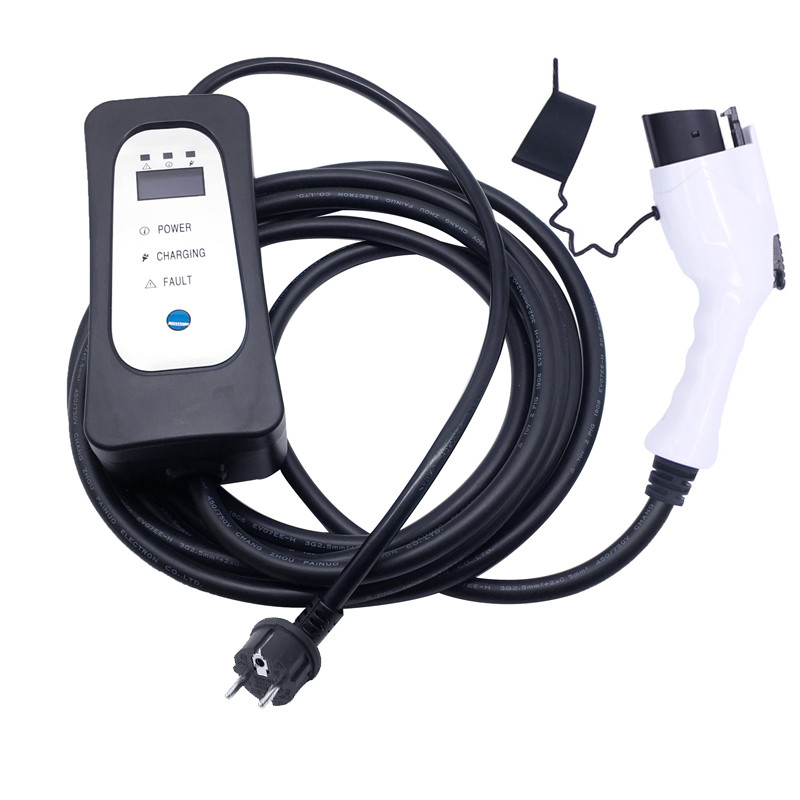

IP65 3 Phase 32Amp Ev Fast Charging Stations Residential At Home TUV
IP65 3 Phase 32Amp Ev Fast Charging Stations Residential At Home TUV
Contact Now

IP65 3 Phase 32Amp Ev Fast Charging Stations Residential At Home TUV

Minimum Order Quantity : 10 sets Packaging Details : Carton
Delivery Time : 15~30 days Payment Terms : T/T, L/C
Supply Ability : 10000 pcs per month
Place of Origin: China Brand Name: TOPSUN
Certification: TUV, CE, ETL Model Number: T-EN-EV32

Detail Information
Type: Type 3 Connector: Type 2
Rated Current: 32A 3 Phase Voltage: 110V~450V
Rate Frequency: 50/60 Hz RFID Card: Yes
Bluetooth: Yes Wifi: Yes
App: Download From Iphone/Android App Store Operating Temperature: -30℃ ~ +50℃
IP: IP65 Function: Socket/ Charging Cable
Certification: ETL, TUV, CE, FCC Warranty: 12 Months
Size: 34*16*16cm Weight: 3.4 Kgs With Socket
High Light:

IP65 3 Phase ev charging stations residential

,

32A ev charging stations residential

,

ev fast charging at home TUV

Product Description

32A 3 Phase Wall Box EV Charger Station



Over-voltage protection, under-voltage protection, overload protection, earth leakage protection, grounding protection, over-temperature protection, low-temperature protection, lightning protection





Detailed Specification



Product Model

 -32A/220V 16A/380V



Appearance structure



Product name



AC pile



Product type



Simple home version



Shell material



Black tempered glass panel, PC body



Equipment dimension

 310*161*79.8mm ( L*W*H )



Installation method



Wall-mountedportable



Wiring method



Getting in and going out from the bottom



Equipment weight

 <6kg



Gun length

 5m



Electrical indexes



Input voltage

 220V 380V



Input frequency

 50Hz/60Hz



Max. power

 7KW 11KW



Output voltage

 220V 380V



Output current

 32A 16A




Standby power consumption

 <3W



Environmental indexes　



Applicable scene



Indoor / Outdoor



Operating temperature

 -30℃ ~ +55℃



Operating humidity



5% ~ 95%, without condensation



Height above sea level

 <2000m



Protection level

 IP65



Cooling method



Natural cooling



Safety certification

 GBT 20234,NBT 33008,NBT 33002,CE,ETL
MTBF



100,000 hours



Special protection



UV protection design



Safety design

,

Over-voltage protection, under-voltage protection, overload protection, earth leakage protection, grounding protection, over-temperature protection, low-temperature protection, lightning protection
