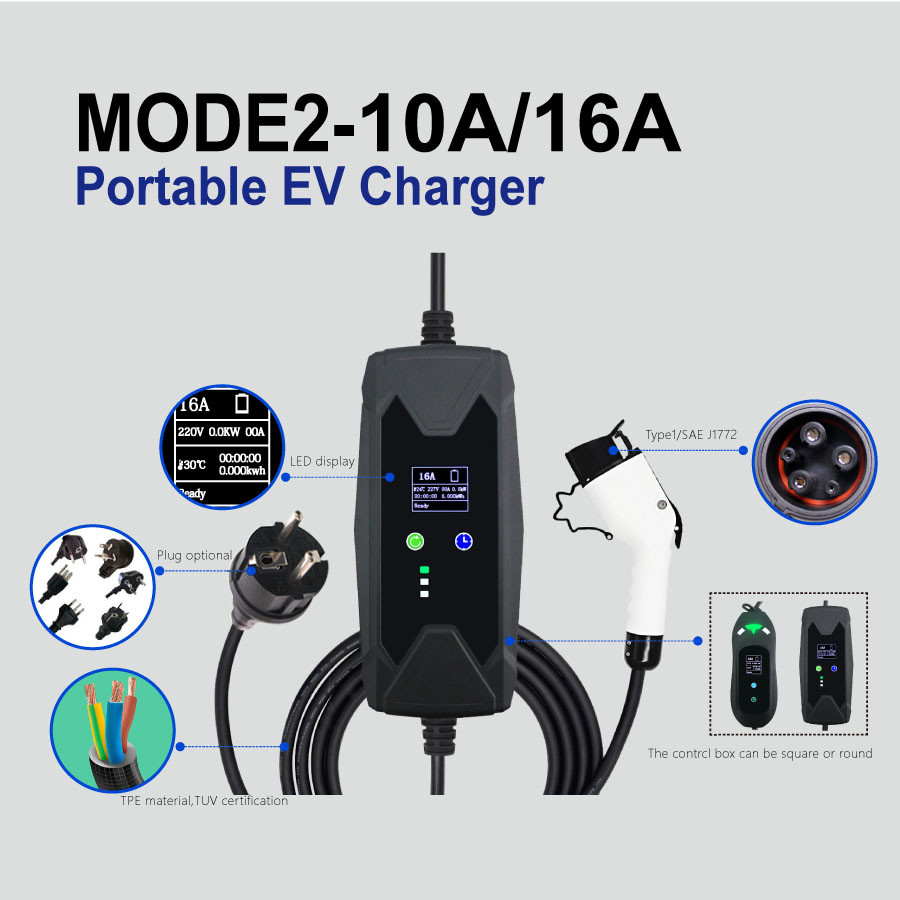

IP55 EV Car Charging Station 3 Pin Plug Ev Charger SAEJ1772 IEC62196

Contact Now

Detail Information
Product Name:	AC EV Charger Station	Charging Port:	No USB Port
RCD:	Type A	Charging Standard:	SAE J1772/IEC 62196
Start Mode:	Automatic/Card/APP	Enclosure Rating:	IP55
Communication Interface:	Ethernet/4G(Optional)	Function:	APP Control, Screen Display, Voltage Monitoring, Lighting-proof, Overheat Protection, Overcurrent Protection, Overvoltage Protection
High Light:	EV Car Charging Station SAEJ1772 , EV Car Charging Station IEC62196 , IP55 3 pin plug ev charger

Product Description

IEC62196 Waterproof IP65 Electric Car Charging Wallbox 32A 1 Phase AC EV Charger Station With APP

* Compact design
Attractive appearance, 7‘ LCD screen, simple but elegant.
* Full protection
Full electrical protection, over/under temperature protection, Protection
against lightning, leakage, short circuit, over current, etc.
* Stable
IP65 protection grade, capable for harsh environment, salt-mist condition.
* Intelligent
4G/ethernet/Wifi/ Background monitoring, RFID/QR payment support.
* European standard
OCPP v1.6 standard open communication protocol, IEC62196-2 type 2 connector.
* Easy to install and operation
Wall-mounting or pole-mounting optional.

Wallbox Product parameters
Product Name	7kw 11kw 22kw Wallbox
standrd	IEC standard
certificates	TUV,UKCA,CE,FCC
Product Type	FE-AM3-16	FE-AM3-16P3	FE-AM3-32	FE-AM3-32P3
AC Voltage Power Input	240v±10%	380V±10%	240v±10%	380V±10%
AC Power Output	16A/3.5kw	16A/11KW	32A/7KW	32A/22KW
Current Adjustable	8-16A	8-16A	8-32A	8-32A
Rated Frequency	50/60HZ
Charging Connector	IEC 62196-2 (Type 2/Mennekes) plug
Connector Type	SAE J1772 (Type 1)		IEC 62196-2 (Type 2)
Internet Connection	NFC/wifi
Insulation resistance:	>1000MΩ(DC500V)
Contact Resistance	0.5mΩMax
Operating temperature	-30℃~+50℃
Protection:Type B RCD
Over Voltage Protection	yes	Under Voltage Protection		yes
Over Load Protection	yes	Short Circuit Protection		yes
Earth Leakage Protection	yes	Ground Protection		yes
ver-temp Protection	yes	Surge Protection		yes
Charging Cable Length	5m or Customize Length
Application	AC Home Charging
IP Degree	IP55
Control:	Auto/Button/Card
Withstand voltage:	2000V
Contact Resistance	0.5mΩMax
Mechanical life	no-load plug in / pull out > 10000times

The charging pile is adopt the column-type or wall-mounted type. The frame is stable and the convenient
installation and construction . The friendly human-computer interaction interface makes the operation
easier and the modular design makes the long-term maintenance convenient, therefore, it is an efficient AC
charging device for new energy vehicles with AC chargers.
