Home ProductsEV Car Charging Station250VAC Level 2 Evse Portable Charger Electric Vehicle Wall Mounted Ev Car Home Charging Station

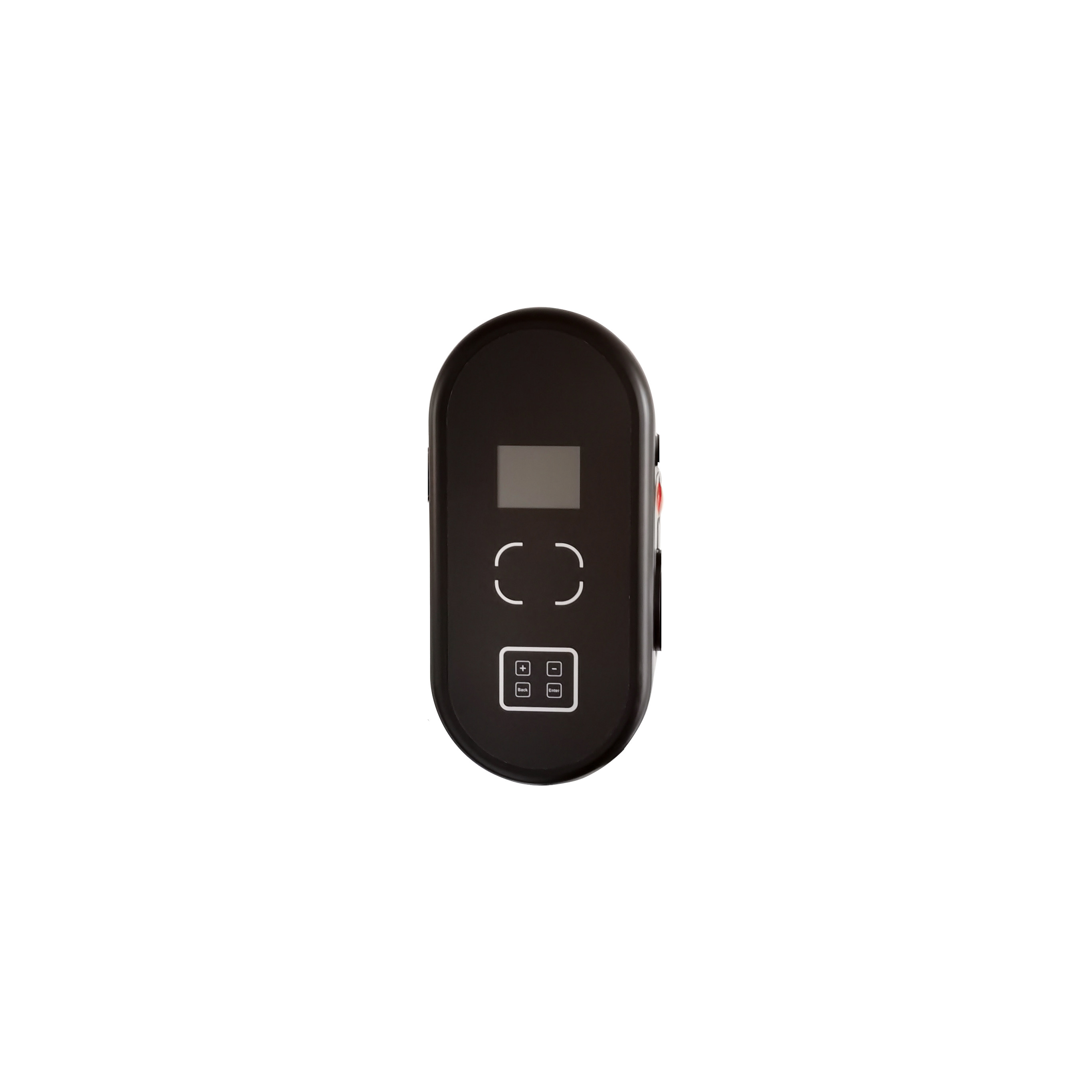

250VAC Level 2 Evse Portable Charger Electric Vehicle Wall Mounted Ev Car Home Charging Station
250VAC Level 2 Evse Portable Charger Electric Vehicle Wall Mounted Ev Car Home Charging Station
Contact Now

Detail Information
Product Name: AC DC EV Charger Operating Voltage: 110 -250V AC
Average Trouble-free Time: 8760 Hours Application: Automotive
Start Mode: Automatic/Card/APP Enclosure Rating: IP55
Mechanical Life: No-load Socket In/pull Out >10000 Times Rated Current:: 6A 8A 10A 12A 16A
High Light:

250VAC level 2 evse portable charger

,

IEC62196 level 2 evse portable charger

,

110V electric vehicle wall charger

Product Description

EVSE Portable EV Charger Car Mobile Home Charging Station



Mechanical Performance Mechanical Life ＞10000 times no-load plug in/out.
Coupled Insertion Force 45N～100N
Withstandable Impact Dropping from a 1m-height and running-over by a 2T vehicle.
Material Enclosure Thermoplastic, flame retardant grade UL94 V-0
Cable Material TPE
Terminals/Pins Copper alloy, silver plating
Safety and Warranty Ingress Protection IP55
Certification CE/ TUV/ UL
Certification Standard IEC 62196-1-2016/ IEC 62196-2-2016
Charging Protection Over current, residual current, short circuit, surge, over/under
voltage, over/under frequency, and over/under temperature
protection;
Warranty 3 years
Environment Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000m



Electrical Data
Max. output current
16A

Input voltage/Output voltage
220-240V AC
Input frequency
50-60Hz

Charging Plug
IEC 62196 Type 2
Max. output power
3KW

Wall side Plug
Schuko
Protection
Over Voltage Protection
Yes

Leakage Protection
Type A
AC 30mA
Under Voltage Protection
Yes

Over-temp Protection
Yes
Over Load Protection
Yes

Lightning Protection
Yes
Short Circuit Protection
Yes

Flame Retardant
Yes
PE Protection
Yes

Crushing Force
No damage under 5000N
Electrostatic Protection
Yes

Ingress Protection Degree
IP65 for Box , IP54 for Plug
Function and Accessory
Ethernet/WIFI/4G/Bluetooth
No

LED Indicator light
Flash
LCD
Yes

Intelligent Current adjustment
Yes , 6A-16A adjustable
RCD
Type A

Timing Function
Yes / By RFID Card
Working environment
Protection degree
IP65 for Box , IP54 for Plug

Maximum altitude
<2000m
Environment temperature
-40℃ ~ +50℃

Cooling
Natural air cooling
Relative humidity
0-95% non-condensing

salt mist at +35 °C
Pass
Package
Dimension (W/H/D)
410/390/10mm

Weight
3.5KG
Certification
CE

Packing Method
Neutral Color Box


250VAC Level 2 Evse Portable Charger Electric Vehicle Wall Mounted Ev Car Home Charging Station 0
