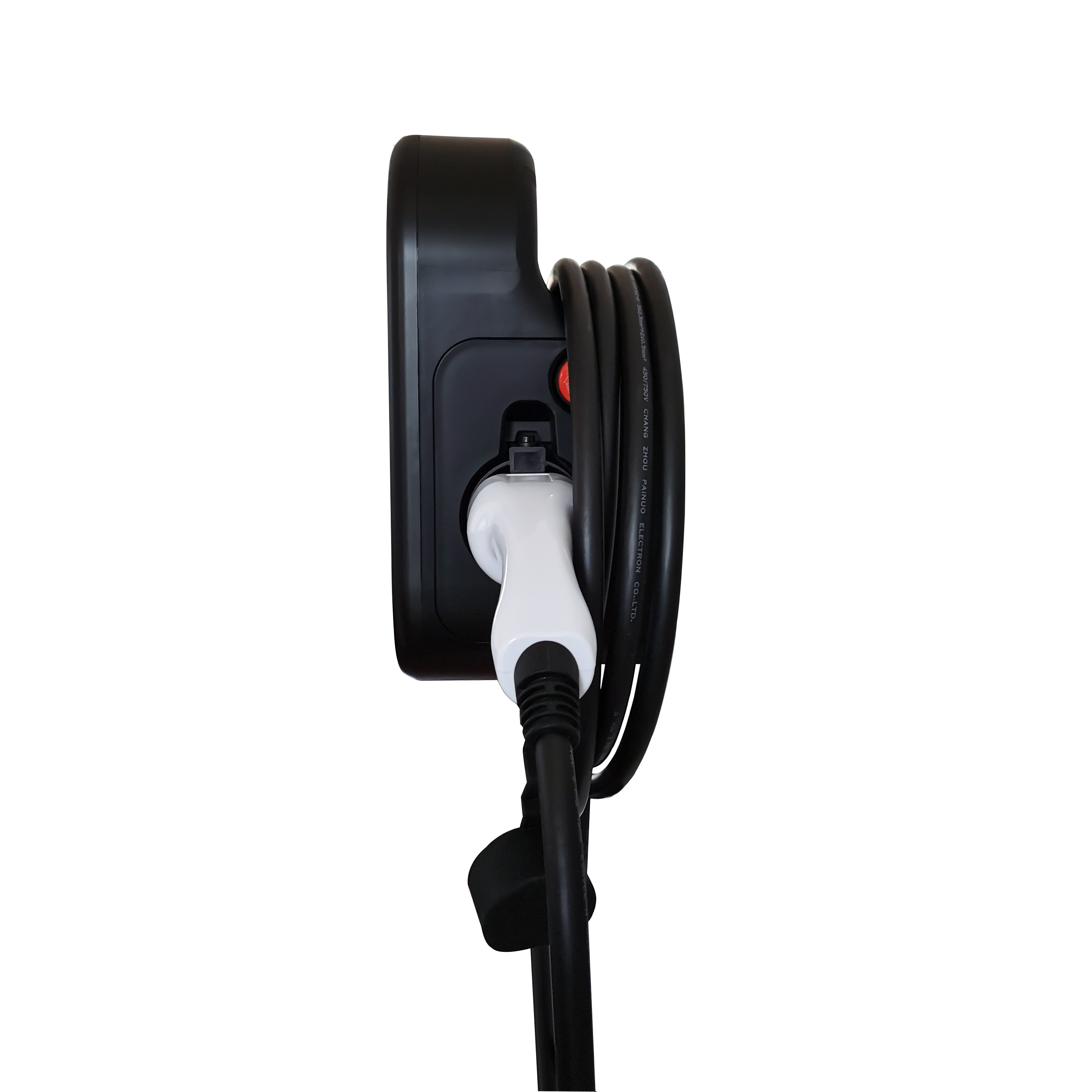

IP55 240Vac EV Car Charging Station Electric Vehicle Charging Equipment FCC
IP55 240Vac EV Car Charging Station Electric Vehicle Charging Equipment FCC
Contact Now

Detail Information
Product Name: Wallbox, EV Charger, Charging Station Connection: Type 1, Type 2
Warranty: 3 Years Screen: 4.3" LCD Screen
Start Mode: Automatic/Card/APP Enclosure Rating: IP55
Communication Interface: Ethernet/4G(Optional) Power: 11KW
High Light:

IP55 EV Car Charging Station

,

240Vac EV Car Charging Station

,

electric vehicle charging equipment FCC

Product Description

11.5 KW Power Level 2 Electric Vehicle Car Charge Station



1. AC Charger (With Charging Cable)
2. Wall-Mounted Bracket
3. User Manual
4. M5 Teeth Screws
5. M6 Hexagonal Expansion Screws
6. RFID Card (RFID Version Only)



Product Specification

Regional Standard
Regional Standard
NA Standard
EU Standard
Power Specification
Voltage
208–240Vac
230Vac±10%
(Single phase)
400Vac±10%
(Three phase)


Power / Amperage
3.5kW / 16A
-
11kW / 16A
7kW / 32A
7kW / 32A
22kW / 32A
10kW / 40A
-
-
11.5kW / 48A
-
-
Frequency
50-60Hz
50-60Hz
50-60Hz
Function
User Authentication
RFID (ISO 14443)
Network
LAN Standard (4G or Wi-Fi Optional with Surcharge)
Connectivity
OCPP 1.6 J
Protection & Standard
Certificate
ETL & FCC
CE (TUV)
Charging Interface
SAE J1772 , Type 1 Plug
IEC 62196-2 , Type 2 Socket or Plug
Safety Compliance
UL2594 , UL2231-1/-2
IEC 61851-1 , IEC 61851-21-2
RCD
CCID 20
TypeA + DC 6mA
Multiple Protection
UVP , OVP , RCD , SPD , Ground Fault Protection , OCP , OTP , Control Pilot Fault Protection
Environmental
Operating Temperature
-22°F to 122°F
-30°C ~ 50°C
Indoor / Outdoor
IK08, Type 3 enclosure
IK08 & IP54
Relative Humidit
Up to 95% non-condensing
Cable Length
18ft (5m) Standard , 25ft (7m) Optional with Surcharge



IP55 240Vac EV Car Charging Station Electric Vehicle Charging Equipment FCC 0
