UL94 Bluetooth Wall Charger For Electric Car 10AMP Type 2 Connector At Home

Name: UL94 Bluetooth Wall Charger For Electric Car 10AMP Type 2 Connector At Home
Brand: TOPSUN
SKU: T-EN-EV32
Price: 1 USD
Availability: InStock
Rating: 4.6 (190 reviews)

Minimum Order Quantity :	10 sets	Packaging Details :	Carton
Delivery Time :	15~30 days	Payment Terms :	T/T, L/C
Supply Ability :	10000 pcs per month

Place of Origin:	China	Brand Name:	TOPSUN
Certification:	TUV, CE, ETL	Model Number:	T-EN-EV32

Detail Information
Type:	Type 1/ Type 2/Type 3	Rated Current:	32A 1 Phase
Voltage:	110V~250V	Rate Frequency:	50/60 Hz
RFID Card:	Yes	Bluetooth:	Yes
Wifi:	Yes	App:	Download From Iphone/Android App Store
IP:	IP65	Function:	Socket/ Charging Cable
High Light:	UL94 wall charger for electric car , Bluetooth UL94 wall charger for electric car , UL94 10AMP type 2 connector at home

Product Description

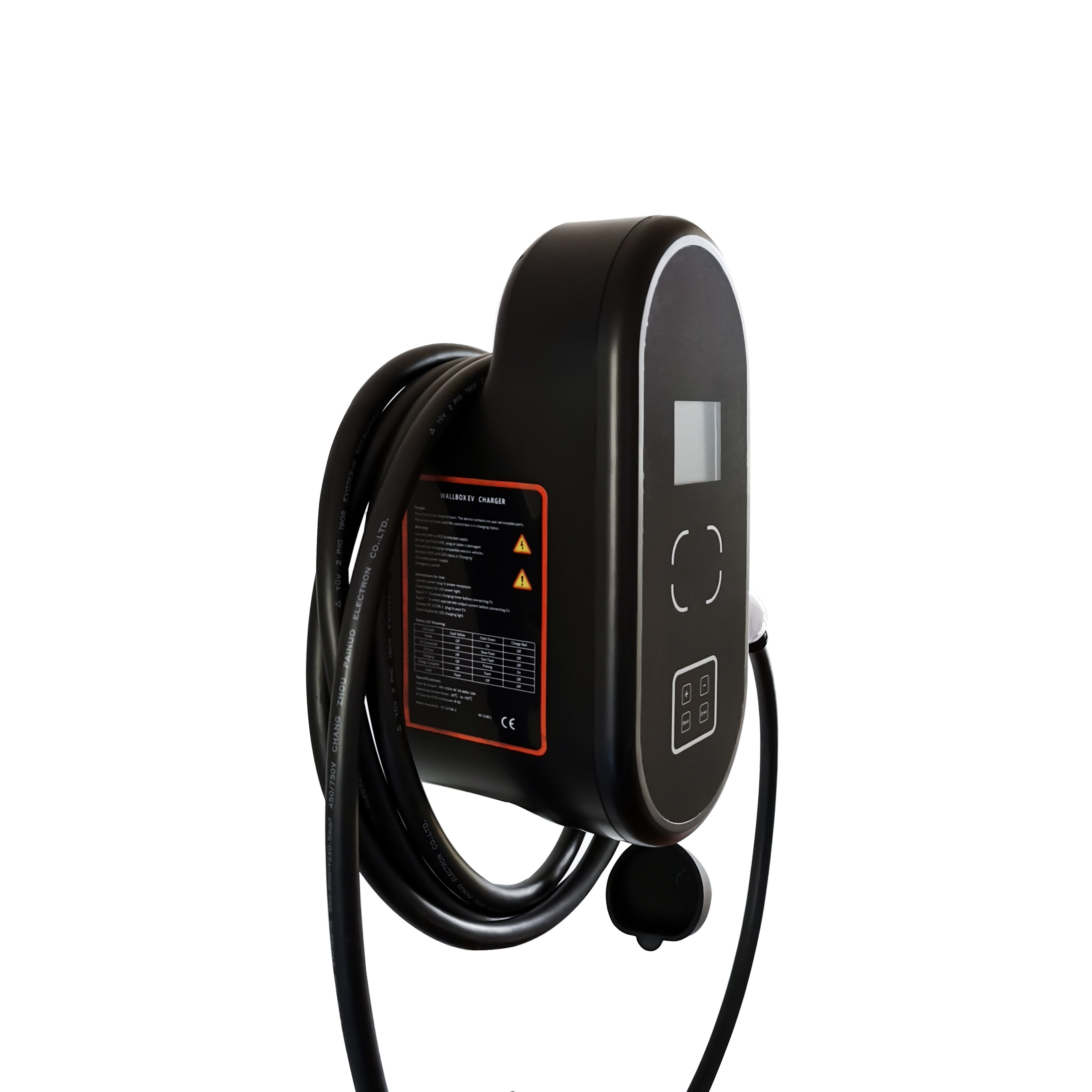

TOPSUN Wall Box EV Charger Station Bluetooth Wifi RFID Card

Control box

Leakage protection
Over voltage/under voltage protection
Over load protection
Lighting protectionAmperew options
1. Fix ampere 10A
2. Fix ampere 16A
3. Fix ampere 32A
4. Adjustable 6-8-10-13-16A
5. Adjustable 10-16-20-24-32A
6. Adjustable 10-16A
7. Adjustable 6-8-10-13A
8. Adjustable 6-8-10-15A
9. Adjustable 6-8-10A

Inlet plug

Mechanical Properties
Mechanical life:No-load plug in /out >10000 times
Coupled insertion force: 45NImpact of external force: Can afford 1M height drop and 2T vehicle run over pressure

Environmental Performance:
Working Temperature: -30°C ~+ 50°C

Plug Material
ABS+thermoplastic, flame retardant grade UL94 V-0
Terminal: copper alloy, silver plating

Shell color: black/white optional

Mechanical Performance	Mechanical Life	＞10000 times no-load plug in/out.
	Coupled Insertion Force	45N～100N
	Withstandable Impact	Dropping from a 1m-height and running-over by a 2T vehicle.
Material	Enclosure	Thermoplastic, flame retardant grade UL94 V-0
	Cable Material	TPE
	Terminals/Pins	Copper alloy, silver plating
Safety and Warranty	Ingress Protection	IP54
	Certiﬁcation	CE/ TUV/ UL
	Certiﬁcation Standard	IEC 62196-1-2016/ IEC 62196-2-2016
	Charging Protection	Over current, residual current, short circuit, surge, over/under
		voltage, over/under frequency, and over/under temperature
		protection;
	Warranty	2 years
Environment	Work Temperature	-30℃~+50℃
	Work Humidity	5%~95%
	Work Altitude	<2000m
