OCPP 1.5S 6mA DC Wallbox Dc Fast Charger Ocpp Smart Charging 3 Phase 400V

Brand Name:	LINKIN

Detail Information
Type:	Wallbox EV Charger	Material:	ABS+PC
Function:	Screen Display, Voltage Monitoring, Colorful Light	Charging Port:	Type 1, Type 2
Combination:	LED/LCD/ RFID/Emergency Stop Button, AC Charging Station	OCPP:	OCPP1.6J/OCPP1.5S
Cable Length:	5 Meters/ Customized	Input Voltage:	3-phase 400V±20%
High Light:	OCPP 1.5S wallbox dc fast charger , 6mA DC wallbox dc fast charger , ocpp smart charging 3 phase 400V

Product Description

OCPP 1.6J AC EV Charger Wall Box 22KW With Type 2 Connector For Public EV Charging Station

Specification

Protection:
* RCD Type B inside,it is more safe than Type A.
* High quality production and design standards for safe and reliable use with multiple fault protection: Overvoltage Protection,Undervoltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection, Over-temp Protection, Surge Protection and etc.

ower Input	Input Voltage	3-phase 400V±20%
ower Input	Input Frequency	50/60Hz
Power Output	Output Voltage	3-phase 400V±20%
	Output Power	22kW
	Output Current	32A
	Cold-Load Pickup	Randomized delay before charge resume after power failure
Protection	RCD	30mA AC & 6mA DC
	Display	2.8' LCD (Optional)
	Electrical Protection	Over/under voltage protection, overload protection, short circuit protection, current leakage protection, grounding protection, over temp protection, lightning surge protection
	Plug-Out Protection	Power output is terminated upon detection of charging connector plug-out
	Emergency Stop Button	Yes
Environment	Operating Temperature	-30 ° C ~ +50 ° C
	Storage Temperature	-40 ° C ~ +70 ° C
	Working Humidity	5%~95% without condensation
	Working Altitude	<2000m
Mechanical	Charging Outlet	One connector type 2
	Cable Length	5M (optional)
	Housing Material	Plastic
	Protection Grade	IP54
	Mounting Type	Wall-mount(standard); Pedestal-mount, Pole-Mount(optional)
	Dimension(W x H x D)	360 * 269 * 146 mm
	Net Weight	7Kg

1. APP Control
* Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market

2. Load balance management:
* Restricting the total charging load protects the local grid
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.

3. Specification
* Material: The front panel is tempered glass, which has the advantage of Anti- scratch and high-quality visual effects. The back cover is high quality plate metal with Special Integral molding, it is safe for indoor and outdoor applications.
* OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;

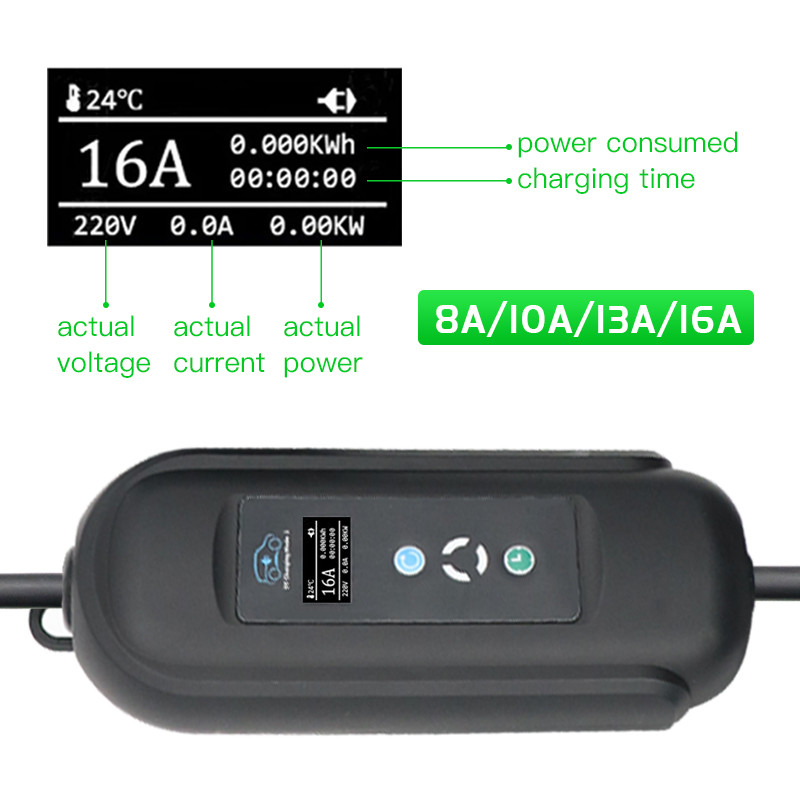

* 3 inch highlight LCD display: Shows live charging current, voltage, power consumption, time
* Versatile Installation wall mount or pedestal applications

OCPP 1.5S 6mA DC Wallbox Dc Fast Charger Ocpp Smart Charging 3 Phase 400V 0
