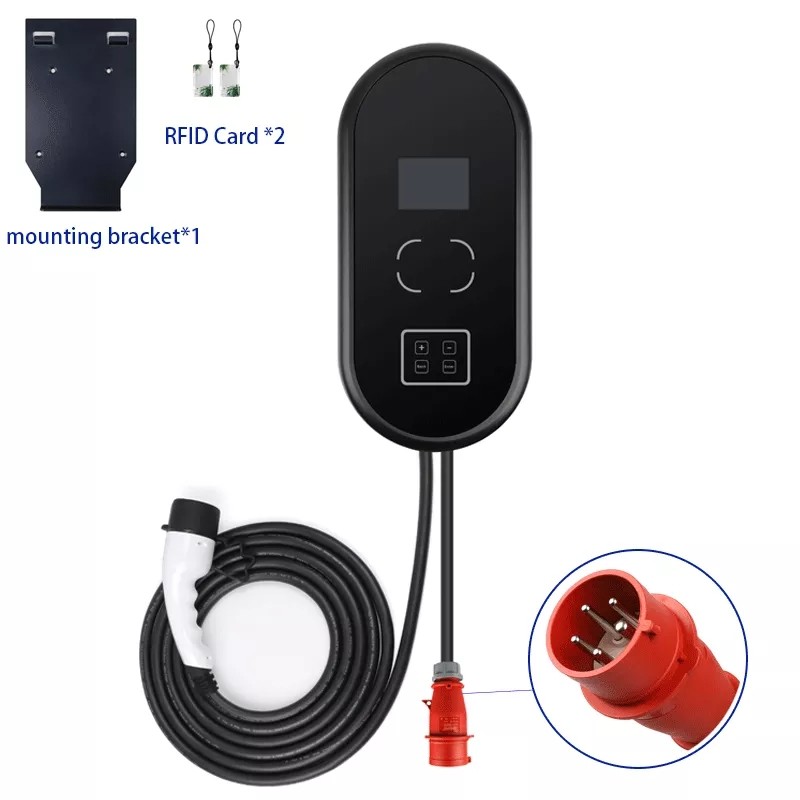

32Amp AC 5m Home Charging Wall Box Electric Car Charger 7kw OCPP1.6J Wall Box

Brand Name:	LINKIN

Detail Information
Type:	Wall Box Charger	Charging Port:	Type 1, Type 2
Feature:	Waterproof	Rated Current:	32A
Cable Length:	5 Meters/ Customized	Size:	350380160mm
Connection:	RFID Card
High Light:	32Amp home charging wall box , 5m home charging wall box , electric car charger 7kw OCPP1.6J

Product Description

AC EV Charger Wall Box Charger OCPP1.6J IEC 62196-2 With 2.4 Inch Screen

11/43KW- AC400V type 2 specification
Outlet specifications	(option)
Connection standard	IEC 61851-1
Connector/socket type	IEC 62196-2 Type 2 Mode 3
Vehicle Safety Communication	IEC 61851-1 PWM (AC Type 2)
System output voltage range	400VAC
Number of output interface configuration modules	11kW×1		22kW×1	43kW×1
Connector maximum output current	16A		32A	63A
Compliance and safety	CE		CE	CE
Cable length	4m		4m	4m
General specifications
Environment	Indoor / outdoor
Operating temperature	,-20 ºC to +50 ºC(de-rating characteristic applies) Option: -35 ºC to +50 ºc
Storage temperature	,-40 ºC to +70 ºC
RFID system	ISO/IEC14443A/B,
Payments	Smart Card, Server based Online Payments or equivalent
Network connection	10/100 Base-T Ethernet(3G/4G option)
Interaction Display	Full-color (4.3 in 480x270 TFT ) LCD display for driver interaction
Visual Indicators	Error indication, Presence of input supply indication, Charge process indication and other relevant information
safety protection	Over current, under voltage, over voltage, Residual current, Surge protection, Short circuit, Earth fault at input and output, Input phase reversal, Emergency shut-down with alarm, Over temperature, Protection against electric shock
Push Button	Mushroom type emergency stop switch (Red)
Supported Communication Protocols	OCPP1.6
Residual Current Device	30mA Type B
Protection	IP54
Dimensions (D x W x H)	205×450×650mm
Input Chracteristics
AC Supply System	Three-Phase, 5 Wire AC system (3Ph.+N+PE)
Nominal Input voltage	400VAC,±10%
Input Frequency	50Hz, ±10Hz
Input Supply Failure backup	Battery backup for minimum 1 hour for the control system and billing unit. Data logs should be synchronized with CMS during back up time, in case battery drains out
Connector parameters 1#
Rated voltage	AC480V
Rated current	3AC / 16A	3AC / 32A			3AC / 63A
standard	IEC 62196-2 Type 2
Electromagnetic lock	NO
Temperature Sensor	NO
communication interface	PWM

HIGH COMPATIBILITY
Our EV charger is compatible with the standard, IEC 62196-2 standard or KIAB GB/T 20234.2 standard and SAE J1772 standard

LCD SCREEN
The screen can show you the real-time charging date including charging time, voltage, current, power and tempera-ture of the AC EV Charger.

SAFE AND RELIABLE
The EV Charger has passed the strict test of CE and has multiple protection including overoltage, undervoltage, over-heating, overload, short circuit, leakage, lightning protection.

RFID FUNCTION
The EV Charger supports RFID function. start and stop through the RFID card and prevent the unauthorized use of the cardless user.

ROBUST ENCLOSURE
Water proof level IP55. You can use the even in rainy days.The shell is made of PA, light but robust, so it will not be easily damaged. The EV Charger uses anti-theft screws. You can add a lock at the EV Charger to prevent lost.

CMS
LAN or 4G. On the platform, you can formulate price templates, manage RFID cards, monitor and manage EV Charger, and display all operation records.
