SAE J1772 IEC 62196 Wall Box EV Charger Electric Charging Point Home 15M Cable

Brand Name:	LINKIN

Detail Information
Type:	7.2 Kw Ac Wallbox Charger	Combination:	LED/LCD/ RFID/Emergency Stop Button, AC Charging Station
Rated Current:	32A	Cable Length:	5M/10M/15M
Connector Type:	IEC 62196 / SAE J1772	Start Method:	"Plug And Play" Or RFID Card
Installation:	Wall-mounted	Charging Power:	3.5KW/7KW/11KW/22KW
High Light:	SAE J1772 Wall Box EV Charger , IEC 62196 Wall Box EV Charger , electric charging point home 15M Cable

Product Description

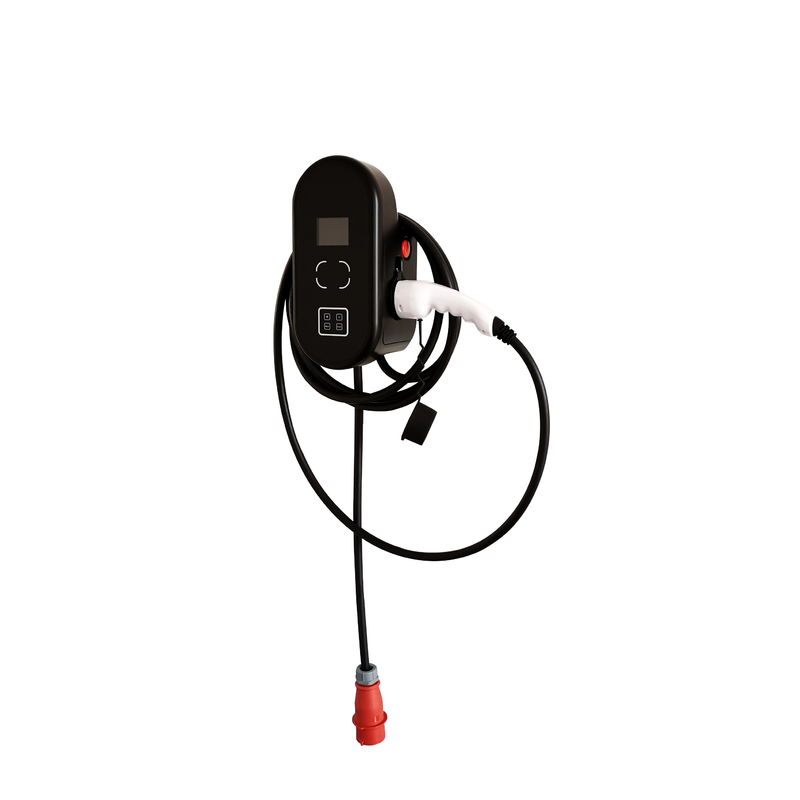

Wall Mounted Car EV Wall Box Home Charging Station For Electric Vehicle Car

Specification

All products must pass the following inspection before leaving the factory:

1. Function test:
A. charging function control test,
B. communication function test,
C. insulation detection function test,
D. vehicle plug locking function test,
E. pre-charging function test

2. Charging output test:
A. four ui large constant power output test,
B. power control test,
C. low-voltage auxiliary power test,
D. output current response time test,
E. transmission out current stopping rate test,
F. efficiency test,
G. power factor test.

Wall Mounted EV Charger Power Specification
	EU Standard
Charging Connector Type	IEC 62196-2 (Type 2)
AC Power Input Rating	1 Phase	3 Phase
AC Power Input Rating	230V±15%	380V±15%
AC Power Output Rating	3.5kw/16A	11kw/16A
	7kw/32A	22kw/32A
		43kw/63A
Frequency Rating	50/60 Hz
User Interface & Control
Emergency Stop Button	Yes	Plug-and-Charging	Yes
RFID Card Charging	Yes	App Charging	Yes
Ethernet Interface	Yes	Wifi Function	Yes
OCPP Protocol	OCPP 1.6	4.3-inch LCD Screen	Optional
Protection
Over Voltage Protection	Yes	Under Voltage Protection	Yes
Over Load Protection	Yes	Short Circuit Protection	Yes
Earth Leakage Protection	Yes	Ground Protection	Yes
Over-temp Protection	Yes	Surge Protection	Yes
RCD	Type B
Environmental
Storage Temperature	-40 ~ 75℃	Operating Temperature	-30 ~ 55℃
Operating Humidity	Up tp 95%, non-condensing	Altitude	≤2000m
Cooling Method	Natural Cooling
M3P Wallbox Mechanical
IP Code	IP54	Dimension(H×W×D,mm)	410×260×164
Weight	12kg	Charging Cable Length	5m or Customize
Enclosure Material	Front-panel: Tempered Glass, Back-cover: Plate Metal
M3T Mounting Pole(Optional)
Dimension(H×W×D,mm)	1400×200×100	Weight	＜8kg
Enclosure Material	Metal

3. control guide test:
A. charging control state test,
B. charging connection control timing test,
C. control guide voltage limit test,
D. communication interruption test,
E. protection grounding continuity loss test,
F. connection detection signal disconnection test,
G. battery voltage and communication message does not match the test,
H. battery voltage exceeds the charger range test,
I. draw battery two protection function vehicle zu high allowable total voltage mismatch test,
J. charging demand is greater than Battery parameters test.
