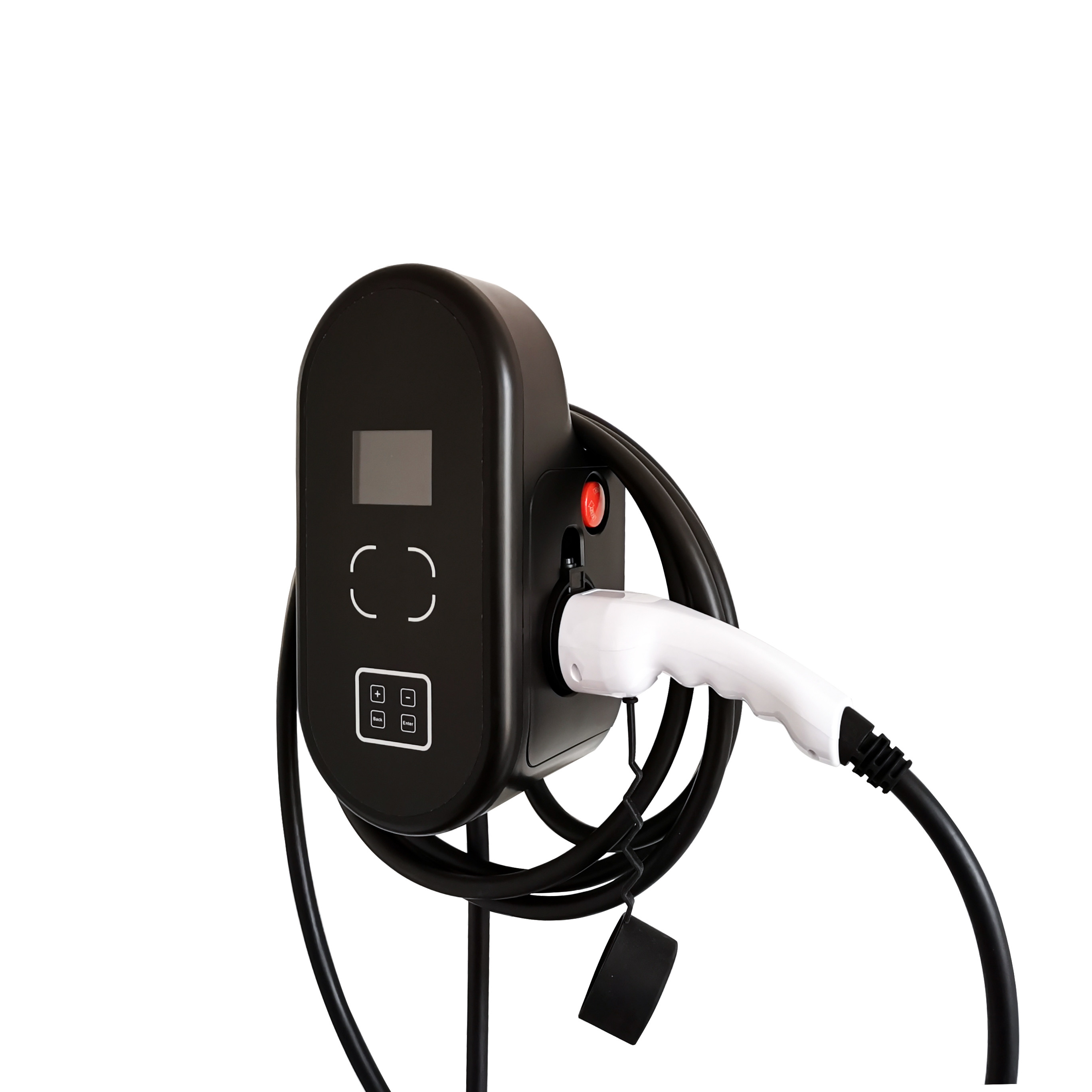

IP65 Wallbox Electric Car Wall Box EV Charger 11kw 22KW IEC 62196

Brand Name:	LINKIN

Detail Information
Rated Current:	32A	Cable Length:	5 Meters/ Customized
Package:	Color Box	Connection:	RFID Card
Protection Level:	IP65	Input Voltage:	110-380V
Output Power:	7/11/22KW	Warranty:	36 Months
High Light:	IP65 Wall Box EV Charger IEC 62196 , Wall Box EV Charger 11kw , wallbox electric car charger 22KW

Product Description

Business OCPP WIFI APP LEC 62196 Type 2 7KW 11KW 22KW 16A 32A AC Charging Station For Electric Vehicles

Power Specification
AC Power Input Rating	SAE Standard	IEC Standard
	AC Level 2	1-Phase	3-Phase
	110-220V ± 15%	110-220V ± 15%	110-380V ± 15%
AC Power Output Rating	7kW/32A	7kW/32A	11kW/16A
	10kW/40A	N/A	22kW/32A
Rated Frequency	50/60Hz	50/60Hz	50/60Hz
Connector Type	SAE J1772 (Type 1)	IEC 62196-2 (Type 2)
User Interface & Control
Charging Control	Plug and Play, RFID Card or app,ocpp1.6
Display Screen	4.3-inch LCD Screen
Indicators	4 LED indicators-Power/Connect/Charging/Fault
Environmental
Storage Temperature	-40 to 75℃ (-40 to 167℉) ambient
Operating Temperature	-30 to 55℃ (-22 to 131℉) ambient
Operating Humidity	Up to 95% non-condensing
Altitude	≤2000m
Protection
Protection Ratings	IP 65	RCD	Type A / Type B
Over Voltage Protection	Yes	Under Voltage Protection	Yes
Over Load Protection	Yes	Short Circuit Protection	Yes
Earth Leakage Protection	Yes	Ground Protection	Yes
Over-temp Protection	Yes	Surge Protection	Yes
Wallbox Mechanical
Dimension (H x W x D, mm)	320 x 197 x 90MM
Weight	1-phase＜7kg; 3-phase＜8kg
Charging Cable Length	5m or Customize Length
Enclosure Material	Front-Panel: Tempered Glass; Back-cover: Metal Plate

Each charger will be fully inspection to ensure product performance in good condition:

Withstand voltage insulation test - start high voltage machine test
Charging preparation -- measuring input voltage
Charging connection confirmation - measuring resistance
Ready to charge - measure current
Ready to charge - measuring frequency
Start up and charging stage - measure the output voltage
Start up and charging phase - measuring output current
Normal charge end test - measure output voltage
CP Disconnection Test: measure the output voltage after resuming charging
CP ground test - measure output voltage
Input overvoltage protection - measure output voltage
Input overvoltage protection - automatic recovery function, measuring output voltage
Input undervoltage protection - measure output voltage
Input undervoltage protection - automatic recovery function, measuring output voltage
Leakage protection - measuring output voltage
Overcurrent protection - measuring output current
Over current protection - automatic recovery function, measuring output current

IP65 Wallbox Electric Car Wall Box EV Charger 11kw 22KW IEC 62196 0
