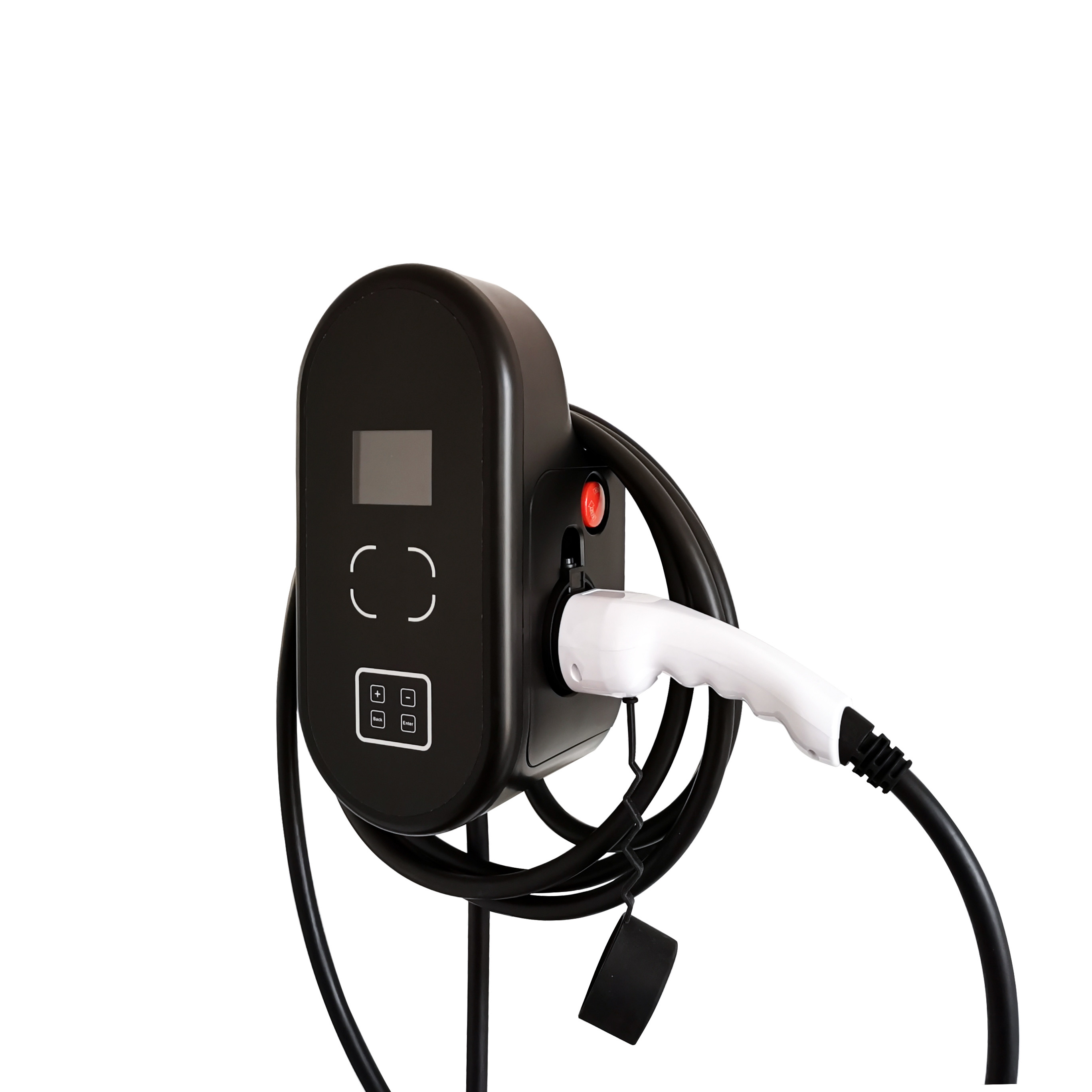

IP54 Protection 250V At Home Level 2 Charger Evse Electric Car House

Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T

Place of Origin:	China	Brand Name:	LINKIN

Detail Information
Type:	Portable Type 2 Ev Charger	Rated Current:	10-32A Adjustable
Pin:	Copper Alloy + Silver Plating	Function:	Screen Display, Power Off Memory, Signal Stabilization, Voltage Monitoring
Package:	Standard Cartons	Cable Length:	5m/10m
Operating Voltage:	110V~220V, 250V	Operating Temperature:	-30℃~50℃
Operation Mode:	Touch Button	Protection:	IP54 IP65 IP66
High Light:	IP54 at home level 2 charger , IP54 250V at home level 2 charger , Evse electric car house charger IP54

Product Description

10-32A Current Adjustable Home Evse Portable Ev Charger Type 2 Iec 62196 Electric Car Charger

Description

IEC 62196 Type2 to Schuko 5m cable for Mode 2 charging with Control Box. A portable and easy charging solution for when you are traveling or you are away from a traditional charging station. This cable allows you to charge your EV/PHEV that has Type 2 port from main household/public sockets. Although is not recommended for everyday use, it is advised to have this charger as a spare for emergency situations.

Specifications	Product Name	Portable EV Charger
	Plug for EV	IEC 62196 Type 2
	Plug for Wall Socket	Blue CEE plug, red CEE plug, etc.
Electric Parameters	Rated Voltage	220～250V AC
	Rated Current	10-32A VC,1 phase
	Frequency	50/60Hz
	Insulation Resistance	＞1000MΩ
	Terminal Temperature Rise	＜50K
	Withstand Voltage	2000V
	Contact Resistance	0.5mΩ
Mechanical Performance	Mechanical Life	＞10000 times no-load plug in/out.
	Coupled Insertion Force	45N～100N
	Withstandable Impact	Dropping from a 1m-height and running-over by a 2T vehicle.

Control Box Function

Leakage protection

Over voltage/under voltage protection

Over load protection

Lighting protection

Environmental Performance:
Working Temperature: -30°C ~+ 50°C

Plug Material
ABS+thermoplastic, flame retardant grade UL94 V-0
Terminal: copper alloy, silver plating

Shell color: black/white optional

IP54 Protection 250V At Home Level 2 Charger Evse Electric Car House 0
