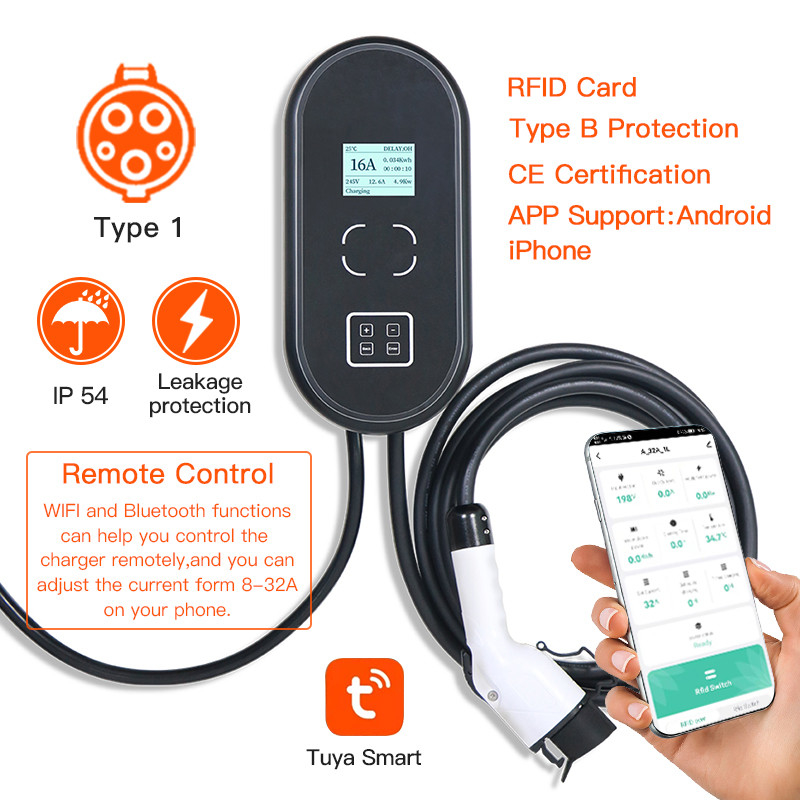

Type 1 24Amp Hybrid Charging Point At Home 32 Amp Level 2 Charger 10m

Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T

Place of Origin:	China	Brand Name:	LINKIN

Detail Information
Type:	EV Charger Portable Type 1	Cable Length:	5m/10m
Operating Voltage:	110V-250V AC; Single Phase	Charging Plug:	Type 1 Type 2
Connector:	SAE J1772 Type1 (5 Pins) / IEC62196 (7 Pins)	Warranty:	1 Year
Color:	White/Black	Charging Protocol:	OCPP 1.6J Option
Function:	APP Control
High Light:	Type 1 hybrid charging point at home , 24Amp hybrid charging point at home , 32 amp level 2 charger 10m

Product Description

Electric Car Home Charger Box Charging Station 16A /32A EV Charger Portable Type 1

How to start charging

1. Carefully check the MAX AC charging current & MAX AC charging power (KW) of your E-vehicle. (Ensure the Charger’s plug matches the outlet you want to use)

2. Firmly insert the wall side plug into the wall socket.
3. Change the charging current by pressing the button.
4. Put the charginig plug into the vechicle

How to stop charging

1. Disconnect the power plug from the wall socket.
2. Disconnect the Type1 plug from the vehicle.

Rated current	16A Version: 8A-10A-13A-16A Switchable 32A Version: 8A-12A-24A-32A Switchable
Rated voltage	110V-250V AC
Charging connector type	IEC 62196 Type2 (7 pins) Or SAE J1772 Type1 for option
Charging connector color	White or Black option (Default color is BLACK)
RCD	RCD TypeA or RCD TypeA + 6ma DC for option
Wall side power plug	Customized
Impact of external force	can afford 1m drop test and 2T vehicle run over pressure
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 66
Protections	Overvoltage, Undervoltage, Overvcurrent, Overload, Overtemperature, Lightning, Leakage, Grounding protections
Warranty	12 months

Mechanical Performance	Mechanical Life
	Coupled Insertion Force
	Withstandable Impact
Material	Enclosure
	Cable Material
	Terminals/Pins
Safety and Warranty	Ingress Protection
	Certiﬁcation
	Certiﬁcation Standard
	Charging Protection


	Warranty
Environment	Work Temperature
	Work Humidity
	Work Altitude

All the charger will test following functions to ensure the product in perfect condition:

CP Disconnection Test: measure the output voltage after resuming charging
CP ground test - measure output voltage
Input overvoltage protection - measure output voltage
Input overvoltage protection - automatic recovery function, measuring output voltage
Input undervoltage protection - measure output voltage
Input undervoltage protection - automatic recovery function, measuring output voltage
Leakage protection - measuring output voltage
Overcurrent protection - measuring output current
Over current protection - automatic recovery function, measuring output current

Type 1 24Amp Hybrid Charging Point At Home 32 Amp Level 2 Charger 10m 0
