1 2 GbT Home EV Charger Level 2 Home Charging Station IP66

Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T

Place of Origin:	China	Brand Name:	LINKIN

Detail Information
Type:	Ev Electric Car Charger	Charging Plug:	Type 1 Type 2
Charging Standard::	SAE J1772	Color:	White/Black
Warranty:	12months	Voltage:	100~450V AC
Socket Stardard:	EU/AU/UK/US	Working Place:	Indoor / Outdoor
High Light:	1 GbT Home EV Charger , 2 GbT Home EV Charger , level 2 home charging station IP66

Product Description

16A Level 2 Ac 264V Ev Electric Car Charger Pole Type 1 2 Gb/T Home Charging Station

All the charger will test following functions to ensure the product in perfect condition:

Withstand voltage insulation test - start high voltage machine test
Charging preparation -- measuring input voltage
Charging connection confirmation - measuring resistance
Ready to charge - measure current
Ready to charge - measuring frequency
Start up and charging stage - measure the output voltage
Start up and charging phase - measuring output current
Normal charge end test - measure output voltage

name	16A ev charger
Socket Type	GB/T 20234-2015
Rated Voltage	176-264V AC
Certificate	CE
Degree of Protection	IP66(control box) IP55(Tip-coupled state)
Operating Temperature	-25°C ~ +55°C
Cable length	5 meters
Max Output Power	7KW

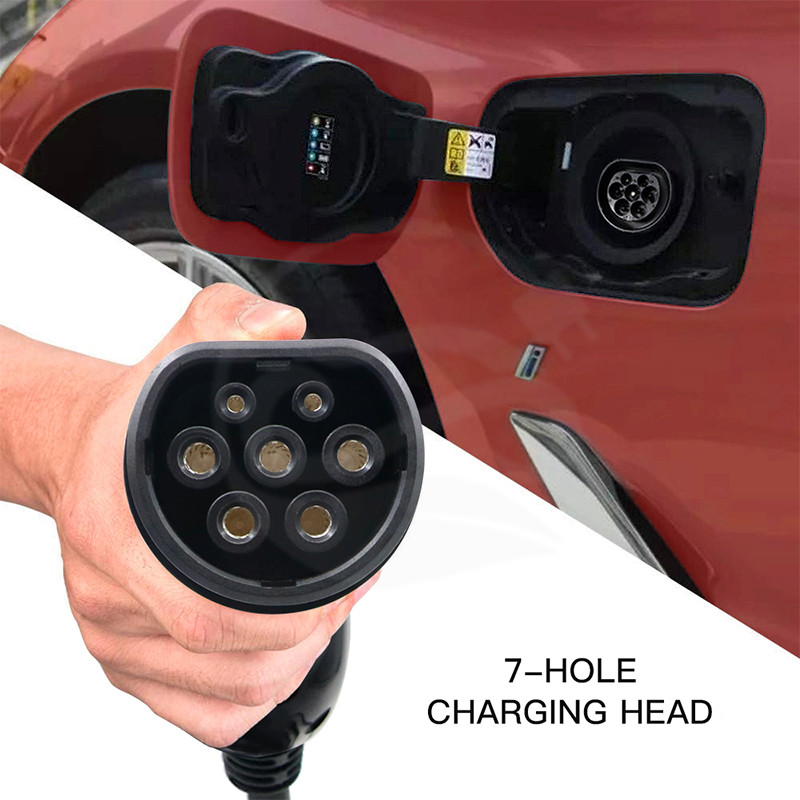

Number of jacks	New national standard seven holes
Conductive pin	Copper alloy silver plated
Three plug end	32A coupling socket
Core material	Copper core
Cable specifications	36+1*1²
