IEC62196 2 16A 3.6KW Home EV Charger Level 2 Charging Cable Box EU Standard

Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T

Place of Origin:	China	Brand Name:	LINKIN

Detail Information
Type:	Home EV Charging Cable	Cable Length:	5m/10m
Charging Port:	No Usb	Voltage:	220VAC
Waterproof:	IP54	Gun Type:	IEC 62196-2 (type 2)
Charging Standard::	SAE J1772	Function:	Colorful Lights
High Light:	IEC62196 2 Home EV Charger , 16A 3.6KW Home EV Charger , 16a level 2 charger EU Standard

Product Description

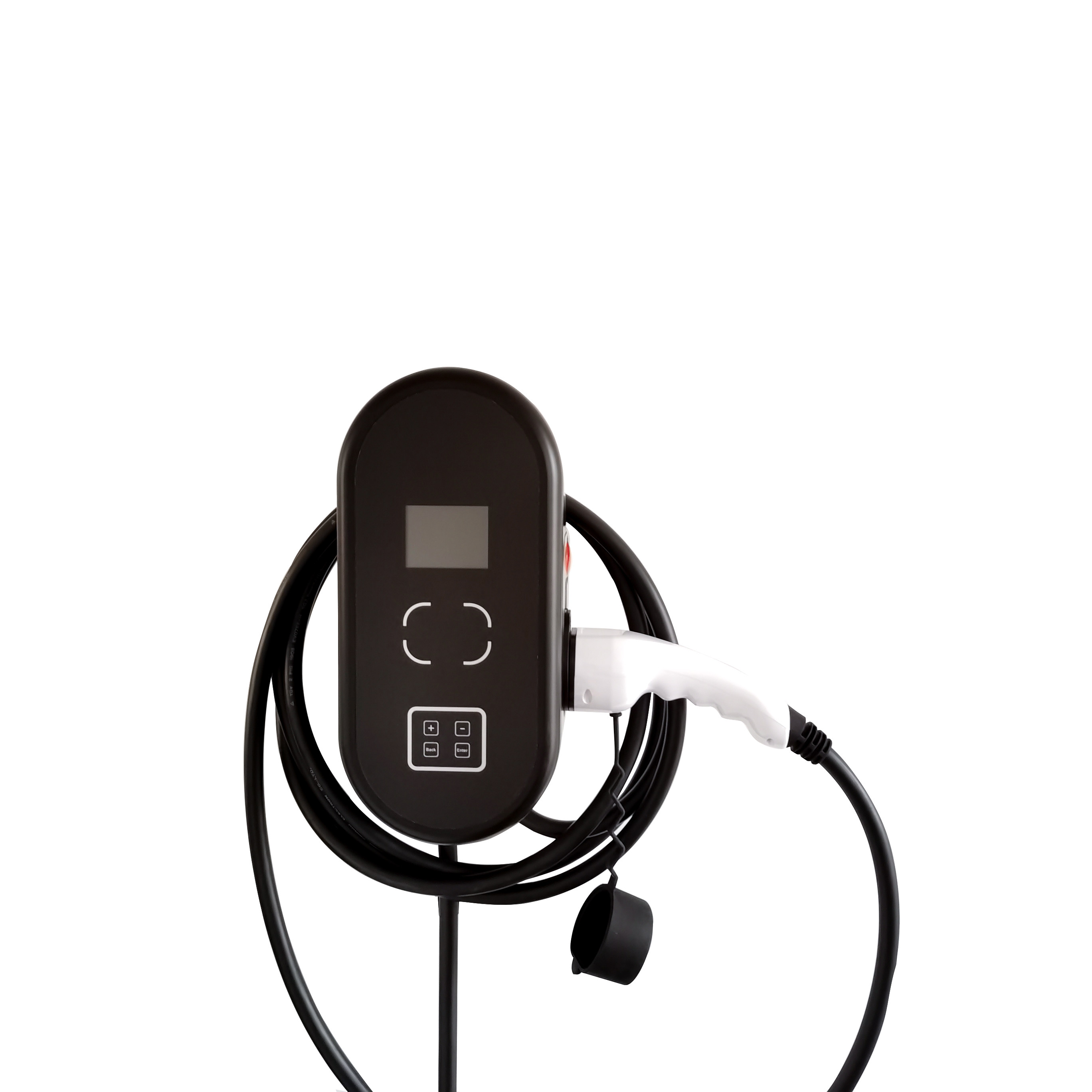

IEC62196-2 Electric Car Charger 16A 3.6KW Home EV Charging Cable Box EU Standard

Name:Home EV Charging Cable mobile charger

This 5 meter mobile charger can be used to charge your electric vehicle equipped with a Type 2 connector from a household socket. It is rated at a safe 10A charging limit, because household sockets are not made to deliver high loads for a long duration of time. Your electric vehicle will charge at 2.3 kW
Please make sure you charge from a correctly installed household socket that is able to deliver 10A, and is electrically protected with an RCBO.

The charger features:

Earth leakage protection
Over current protection
Over voltage protection
Low voltage protection
Short circuit protection
Overheat protection

Material	Enclosure	Thermoplastic, flame retardant grade UL94 V-0
	Cable Material	TPE
	Terminals/Pins	Copper alloy, silver plating
Safety and Warranty	Ingress Protection	IP54
	Certiﬁcation	CE/ TUV/ UL
	Certiﬁcation Standard	IEC 62196-1-2016/ IEC 62196-2-2016
	Charging Protection	Over current, residual current, short circuit, surge, over/under
		voltage, over/under frequency, and over/under temperature
		protection;
	Warranty	2 years
Environment	Work Temperature	-30℃~+50℃
	Work Humidity	5%~95%
	Work Altitude	<2000m

Appearance	Rated power	Type 2: 7/22kw Type 1: 9kw
	Input Voltage	Single phase:230V±10% Three phase:400V±10%
	Output Current	Type 2:7kw-single phase 32A 22kw-three phase 32A Type 1:9kw-single phase 40A
Functional Features	User Interface	Emergency Stop/LED indicator/RFID
Functional Features	Safety Features	Overvoltage/undervoltage protection, overload protection, leakage protection, Overcurrent protection
Communication	Internet Interface	Ethernet(WIFI, 3g/4gLTE as optional)
Communication	OCPP	OCPP 1.6J
Working environment	Working latitude	<2000m
	Working temperature	-30° C～+55° C
	Working humidity	5 %~ 95%
	Protection level	IP55
	Cooling	Natural cooling
	Safety standards	IEC61851-1/2017
	Special protection	Anti-UV protection
