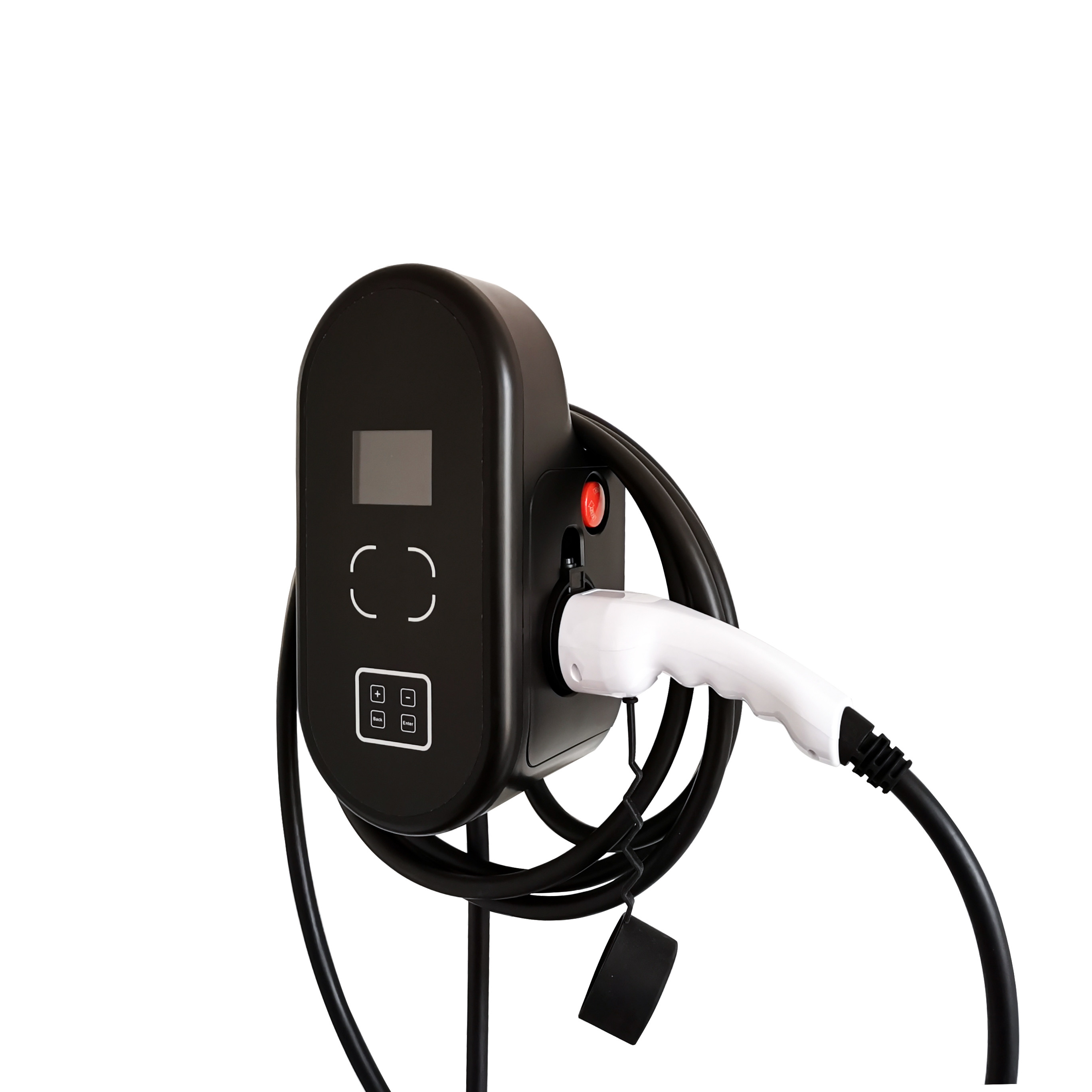

ETL FCC EV Car Charging Station Wall Box Outdoor Level 2 Ev Charger 3.6kW

Minimum Order Quantity :	10 sets	Packaging Details :	Carton
Delivery Time :	15~30 days	Payment Terms :	T/T, L/C
Supply Ability :	10000 pcs per month

Place of Origin:	China	Brand Name:	TOPSUN
Certification:	TUV, CE, ETL	Model Number:	T-EN-EV32

Detail Information
Type:	Type 3	Connector:	Type 2
Rated Current:	16A 3 Phase	Voltage:	110V~450V
Rate Frequency:	50/60 Hz	RFID Card:	Yes
Bluetooth:	Yes	Wifi:	Yes
App:	Download From Iphone/Android App Store	Operating Temperature:	-30℃ ~ +50℃
IP:	IP65	Function:	Socket/ Charging Cable
Certification:	ETL, TUV, CE, FCC	Warranty:	12 Months
Size:	341616cm	Weight:	3.4 Kgs With Socket
High Light:	ETL EV Car Charging Station , FCC EV Car Charging Station 3.6kW , outdoor level 2 ev charger 3.6kW

Product Description

16A 3 Phase Wall Box EV Charger Station

Each charger will be fully inspection to ensure product performance in good condition:

Withstand voltage insulation test - start high voltage machine test
Charging preparation -- measuring input voltage
Charging connection confirmation - measuring resistance
Ready to charge - measure current
Ready to charge - measuring frequency
Start up and charging stage - measure the output voltage
Start up and charging phase - measuring output current
Normal charge end test - measure output voltage

CP Disconnection Test: measure the output voltage after resuming charging
CP ground test - measure output voltage
Input overvoltage protection - measure output voltage
Input overvoltage protection - automatic recovery function, measuring output voltage
Input undervoltage protection - measure output voltage
Input undervoltage protection - automatic recovery function, measuring output voltage
Leakage protection - measuring output voltage
Overcurrent protection - measuring output current
Over current protection - automatic recovery function, measuring output current

EV Charging Power and Time
Charger	AC/DC	Rated Power	30kWh Battery	60kWh Battery	90kWh Battery
Schuko 16A	AC	3.6kW	8hrs	16hrs	24hrs
Schuko 32A	AC	7.2kWh	4hrs	8hrs	12hrs
1-phase 16A	AC	3.6kW	8hrs	16hrs	24hrs
1-phase 32A	AC	7.2kWh	4hrs	8hrs	12hrs
3-phase 16A	AC	11kW	3hrs	6hrs	9hrs
3-phase 32A	AC	22kW	1.5hrs	3hrs	4.5hrs
DC Fast charge	DC	50kWh	40mins	80mins	120mins
Tesla Supercharger	DC	120kW	15mins	30mins	45mins
