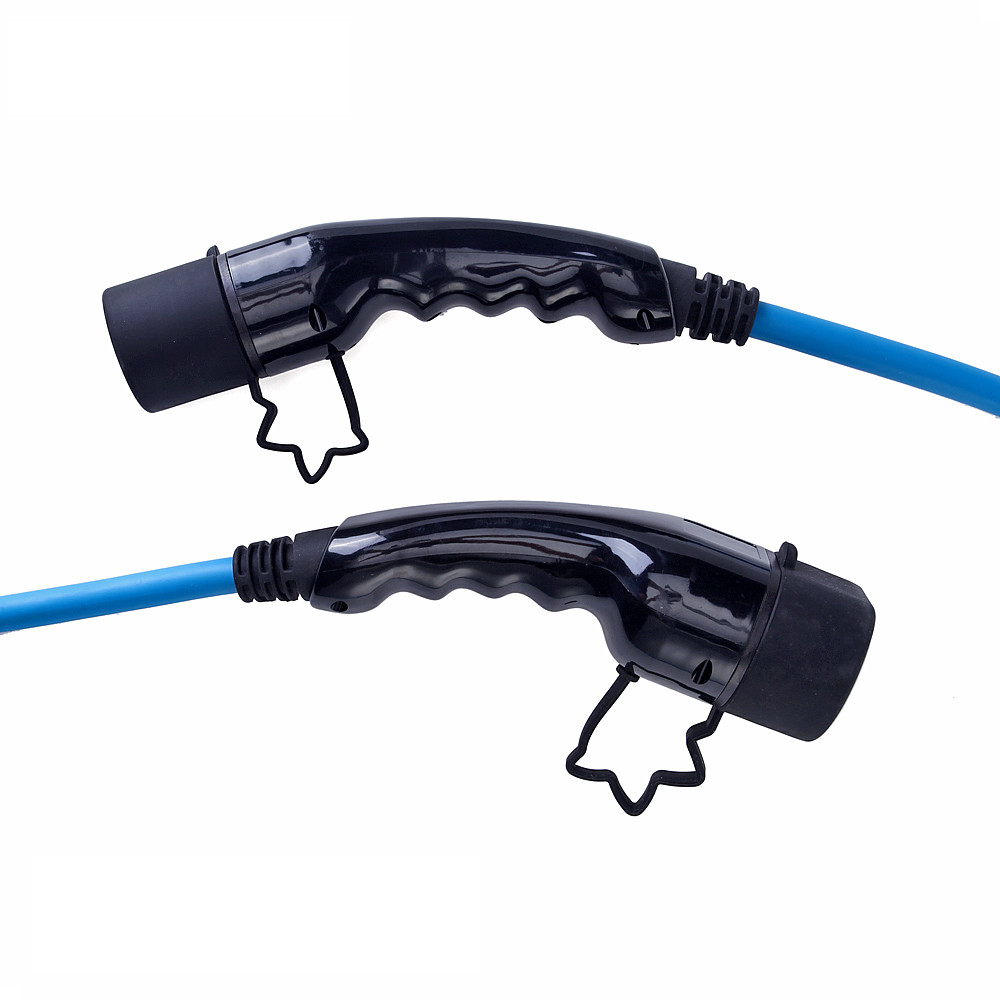

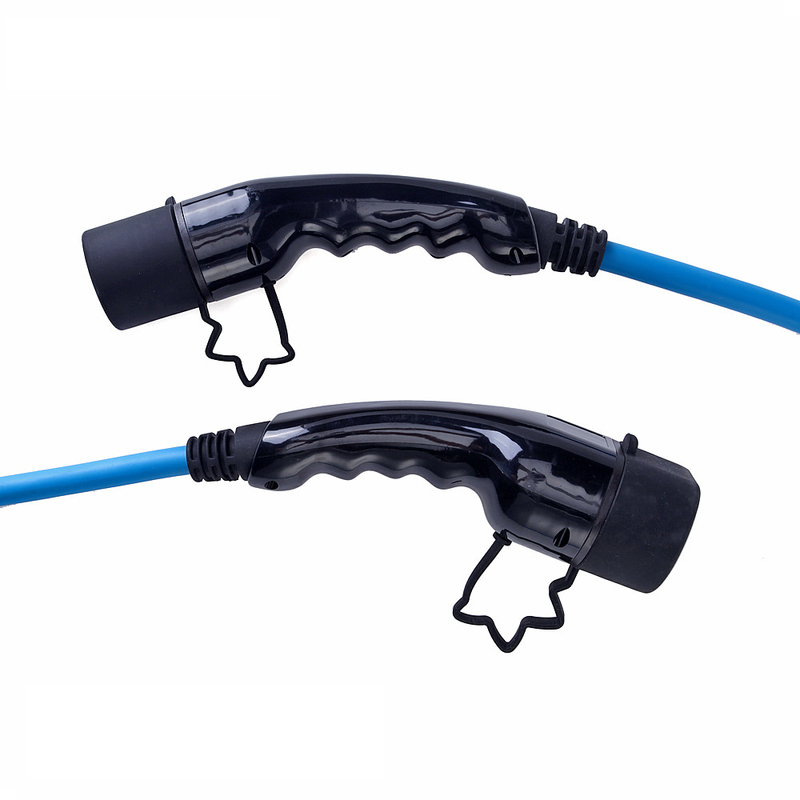

AC Connector Type 2 To J1772 Car Charger To Wall Outlet Converter Car Adapter ODM
AC Connector Type 2 To J1772 Car Charger To Wall Outlet Converter Car Adapter ODM
Contact Now

Detail Information
Type: EV Charging Adapter Operating Temperature: -30℃ ~50℃
Rated Current: 32A Voltage: 220-250V
Phase: Single Phase / 3 Phases Case Materrial: Thermoplastic,UL94V-0
Standard: IEC62196-3 Cable Length: 5M/Other
High Light:

AC Connector wall outlet car adapter

,

ul94 32A wall outlet car adapter

,

type 2 to j1772 adapter ODM

Product Description

Type 1 Type 2 Convertor SAE J1772 IEC 62196 2 EV Adaptor And Charging Adapter



Features

1. Conform to the provisions and requirements of IEC 62752, IEC 61851.
2. Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3. TPE for cable insulation prolonging the aging resistance life-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4. Excellent protection performance, protection grade achieved IP67 (working condition).



Type
EV Charging Adapter
The main material
Thermo Plastic/Silicon Rubber/Copper Alloy
Plug color
Black/White/Color
Patch life
≥10000
Rated Current
32A
Fire rating
UL94 V-0
Rated Voltage
220-250V
Waterproof rating
IP54
Resistance Voltage
2000v
Operating temperature
-30°C~+50°C
Insulation resistance
>1000MΩ
Cable Specification
3*6mm2+2*0.5mm2
Contact resistance
less than 0.5mΩ
Cable Length
5M/Other



Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPE insulation,TPE Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196



Application
Nissan LEAF, Nissan eNV-2000, VW eGolf Chevy Volt, Chevy Bolt, Chevy Spark Toyota Prius Plug-In, Prius Prime,Toyota Rav4 EV Hyundai Ioniq,Kia Soul EV, Mercedes B Class Electric Drive,BMW i3 and i8 Ford Focus Electric, Ford C-Max Energy, Ford Fusion Energy, Fiat 500e ZERO motorcycle , Brammo motorcycle ,Smart Electric Drive, Karma Fisker, Mitsubishi iMiev, Cadillac ELR Porsche Cayenne S-E, Porsche Panamera S-E ,Honda Accord Plug-In Hybrid, Honda Fit EV ,Smart ,Honda
Tesla Model S, Tesla Model X (* need to use with Tesla charging adapter)

AC Connector Type 2 To J1772 Car Charger To Wall Outlet Converter Car Adapter ODM 0
