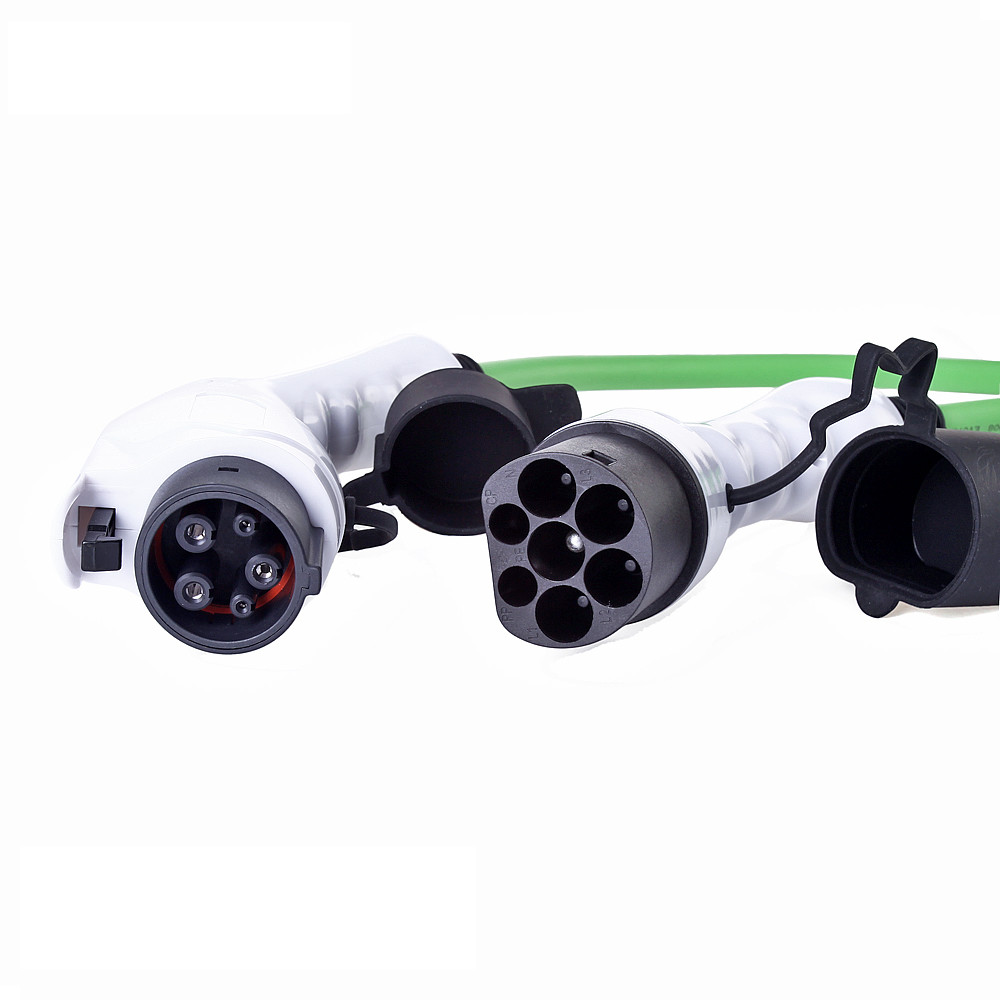

2000V Electric Vehicle Charging Adapters EV Charger Plug 1000M Ohm
2000V Electric Vehicle Charging Adapters EV Charger Plug 1000M Ohm
Contact Now

Detail Information
Type: EV Charging Adapter Rated Current: 16A/32A
Operating Temperature: -30℃ ~50℃ Shell Material: Thermo Plastic
Voltage: 100~450V Phase: Single Phase / 3 Phases
Case Materrial: Thermoplastic,UL94V-0 Standard: IEC62196-3
High Light:

2000v electric vehicle charging adapters 450V

,

450V electric vehicle charging adapters

,

1000M ohm ev charger plug adapter

Product Description

Type 1 Type 2 Convertor SAE J1772 IEC 62196 2 EV Adaptor And Charging Adapter



Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPE insulation,TPE Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196



Type
EV Charging Adapter
The main material
Thermo Plastic/Silicon Rubber/Copper Alloy
Plug color
Black/White/Color
Patch life
≥10000
Rated Current
32A
Fire rating
UL94 V-0
Rated Voltage
220-250V
Waterproof rating
IP54
Resistance Voltage
2000v
Operating temperature
-30°C~+50°C
Insulation resistance
>1000MΩ
Cable Specification
3*6mm2+2*0.5mm2
Contact resistance
less than 0.5mΩ
Cable Length
5M/Other



Features

1.Conform to the provisions and requirements of IEC 62752, IEC 61851.
2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.TPE for cable insulation prolonging the aging resistance life-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4.Excellent protection performance, protection grade achieved IP67 (working condition).



Application
Nissan LEAF, Nissan eNV-2000, VW eGolf Chevy Volt, Chevy Bolt, Chevy Spark Toyota Prius Plug-In, Prius Prime,Toyota Rav4 EV Hyundai Ioniq,Kia Soul EV, Mercedes B Class Electric Drive,BMW i3 and i8 Ford Focus Electric, Ford C-Max Energy, Ford Fusion Energy, Fiat 500e ZERO motorcycle , Brammo motorcycle ,Smart Electric Drive, Karma Fisker, Mitsubishi iMiev, Cadillac ELR Porsche Cayenne S-E, Porsche Panamera S-E ,Honda Accord Plug-In Hybrid, Honda Fit EV ,Smart ,Honda

Tesla Model S, Tesla Model X (* need to use with Tesla charging adapter)
