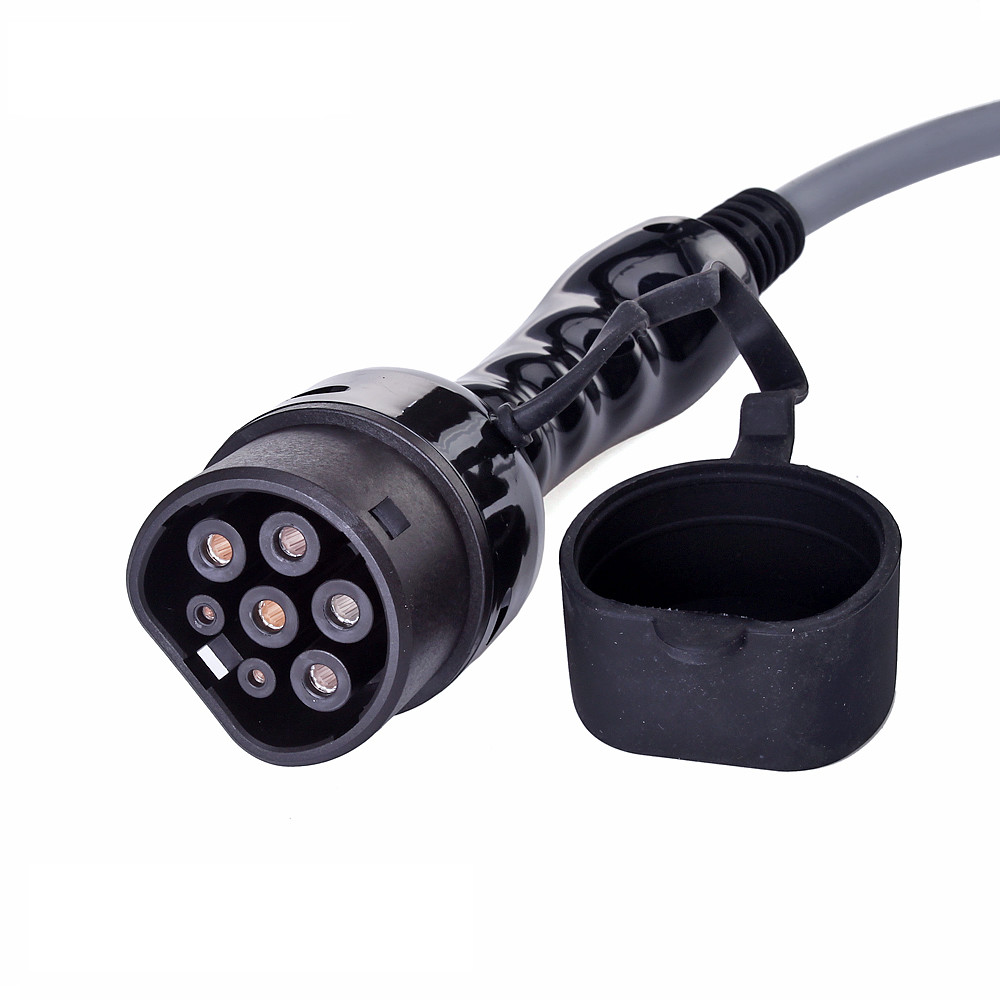

16A 3 Phases 450V EV Charging Adapters Car Charger With 3 Pin Socket

Contact Now

Detail Information
Type:	EV Charging Adapter	Rated Current:	16A/32A
Operating Temperature:	-30℃ ~50℃	Connection:	AC
Voltage:	100~450V	Phase:	Single Phase / 3 Phases
Case Materrial:	Thermoplastic,UL94V-0	Standard:	IEC62196-3
High Light:	16A 3 Phases 450V EV Charging Adapters , 450V EV Charging Adapters , 450V car charger with 3 pin socket ODM

Product Description

Type 1 Type 2 Convertor SAE J1772 IEC 62196 2 EV Adaptor And Charging Adapter

Current:150Amp/200Amp

DC max charging power:90KW

AC max charging power: 41.5KW

Applied Materials

Case Material:Thermoplastic,flame retardant grade UL94 V-0

Contact bush:Copper alloy,silver palting

Product entire insertion and extraction force < 100N

Protection class: IP55

Max charging power:127.5KW

Type	EV Charging Adapter	The main material	Thermo Plastic/Silicon Rubber/Copper Alloy
Plug color	Black/White/Color	Patch life	≥10000
Rated Current	150Amp/200Amp	Fire rating	UL94 V-0
Rated Voltage	220-250V	Waterproof rating	IP54
Resistance Voltage	2000v	Operating temperature	-30°C~+50°C
Insulation resistance	>1000MΩ	Cable Specification	36mm2+20.5mm2
Contact resistance	less than 0.5mΩ	Cable Length	5M/Other

Features

1.Conform to the provisions and requirements of IEC 62752, IEC 61851.
2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.TPE for cable insulation prolonging the aging resistance life-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4.Excellent protection performance, protection grade achieved IP67 (working condition).

Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPE insulation,TPE Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196
