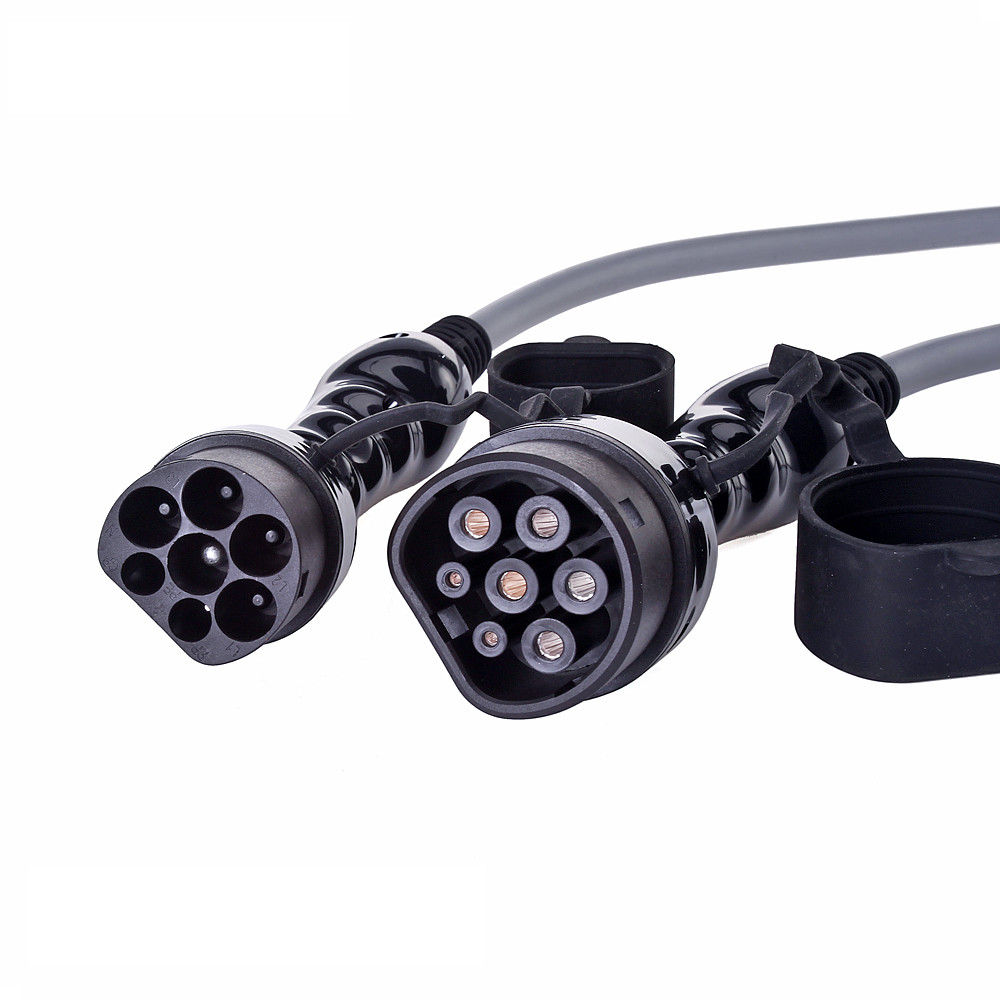

UL94V Electrical Outlet Plug Socket To Car Charger Converter Type 1 To Type 2 Charging Adapter
UL94V Electrical Outlet Plug Socket To Car Charger Converter Type 1 To Type 2 Charging Adapter
Contact Now

Detail Information
Type: EV Charging Adapter Rated Current: 16A/32A
Operating Temperature: -30℃ ~50℃ Connection: AC
Voltage: 100~450V Phase: Single Phase / 3 Phases
Case Materrial: Thermoplastic,UL94V-0 Standard: IEC62196-3
High Light:

ip54 UL94V electrical outlet car adapter

,

32a 125A electrical outlet car adapter

,

type 2 type 1 adapter ISO9001

Product Description

Type 1 Type 2 Convertor SAE J1772 IEC 62196 2 EV Adaptor And Charging Adapter



Material:
Shell: Thermoplastics
Insulator: Thermoplastic
Sealing Ring: Rubber Material
Insulator Flame Retardant Grade: Ul94-v0
Contact: Copper Alloy, Power Contact with Gold-plated, Signal Contact with Gold-plated

Environmental Performance:
Operating Temperature:-30℃~+50℃
Relative Humidity : 98% At40℃
Degree of Protection: Ip55 (during Charging)

Rating Current and Contact Resistance:
Rating Voltage: 250 / 440V AC, 750V DC
Insulation Resistance: ≥1000mΩ( AC Charging Connector);

Type
EV Charging Adapter
The main material
Thermo Plastic/Silicon Rubber/Copper Alloy
Plug color
Black/White/Color
Patch life
≥10000
Rated Current
32A
Fire rating
UL94 V-0
Rated Voltage
220-250V
Waterproof rating
IP54
Resistance Voltage
2000v
Operating temperature
-30°C~+50°C
Insulation resistance
>1000MΩ
Cable Specification
3*6mm2+2*0.5mm2
Contact resistance
less than 0.5mΩ
Cable Length
5M/Other



Features

1.Conform to the provisions and requirements of IEC 62752, IEC 61851.
2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.TPE for cable insulation prolonging the aging resistance life-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4.Excellent protection performance, protection grade achieved IP67 (working condition).



Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPE insulation,TPE Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196



UL94V Electrical Outlet Plug Socket To Car Charger Converter Type 1 To Type 2 Charging Adapter 0

Tag:

type 1 charger plug 250V

16A EV Charging Adapters

SAE J1772 EV Charging Adapters
