3 Phase 32A EV Charger Electric Vehicle EV Charging Cable APP Control

Product Description

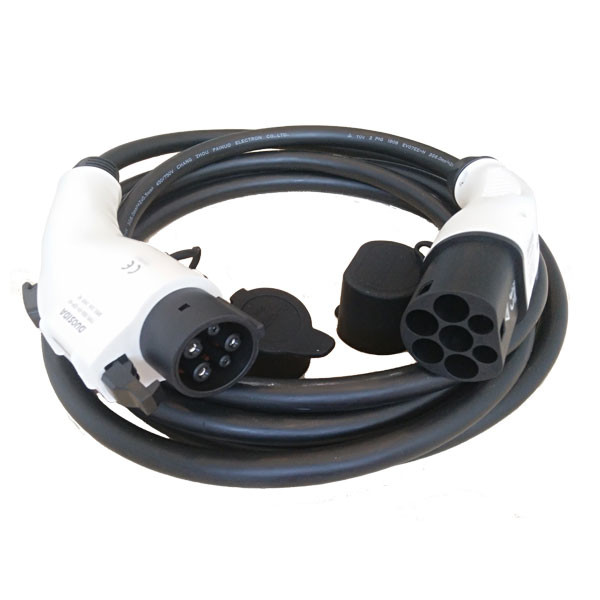

Three-Phase 32A Mode 2 Type 2 To Type 2 EV Charger Electric Vehicle EV Charging Cable APP Control

• IP54 Rated Ergonomic Pistol Grip Style
• Impact Resistant Run Over Proof
• 10,000 Mating Cycles
• Cable Strain Relief Feature
• Insulated Terminal Design
• Single and 3 Phase Cable
• Dust Cap on Lanyard
• High Viz Orange or Black Cable
• Custom Options on Cable Length and Color
• CE & TUV Approved

Inlet plug

Mechanical Properties
Mechanical life:No-load plug in /out >10000 times
Coupled insertion force: 45NImpact of external force: Can afford 1M height drop and 2T vehicle run over pressure

Environmental Performance:
Working Temperature: -30°C ~+ 50°C

Plug Material
ABS+thermoplastic, flame retardant grade UL94 V-0
Terminal: copper alloy, silver plating

Shell color: black/white optional

Each charger will be fully inspection to ensure product performance in good condition:

Withstand voltage insulation test - start high voltage machine test
Charging preparation -- measuring input voltage
Charging connection confirmation - measuring resistance
Ready to charge - measure current
Ready to charge - measuring frequency
Start up and charging stage - measure the output voltage
Start up and charging phase - measuring output current
Normal charge end test - measure output voltage
CP Disconnection Test: measure the output voltage after resuming charging
CP ground test - measure output voltage
Input overvoltage protection - measure output voltage
Input overvoltage protection - automatic recovery function, measuring output voltage
Input undervoltage protection - measure output voltage
Input undervoltage protection - automatic recovery function, measuring output voltage
Leakage protection - measuring output voltage
Overcurrent protection - measuring output current
Over current protection - automatic recovery function, measuring output current
