32A EV Charger Cable Type 2 22kw Charger Plug Cable 250V 3 Phase

Minimum Order Quantity :	10 sets	Packaging Details :	Carton
Delivery Time :	5~10 days

Brand Name:	TOPSUN	Certification:	TUV, CE, UL
Model Number:	T-EN-EV32

Detail Information
Connector:	Type 2 Electric Car Charger	Rated Voltage:	220V~250V
Rated Current:	32A	No. Of Phases:	3-phase
Grounding:	Standard Grounding	Working Temperature:	-30℃~+50℃
Logo:	Customer Logo	Warrenty:	3 Years
High Light:	32A EV Charger Cable , 250V 22kW EV Charger Cable , type 2 22kw charger 250V

Product Description

Type 2 To Type 2 Electric Car Charger LEC 62196-2 EV Plug Charging Cable

Feature of product

1. The EV charging connector interface design conforms to ICE62198-2 TYPE2 regulations and standards;
2. The charging plug is ergonomic and easy to operate
3. The product has excellent protection and can withstand harsh outdoor environment and climate;
4. Anti-vehicle rolling;
5. The EV charging plug has passed CE certification;
6. Applicable to connection method B of IEC61851.

Product name	EV Charging Extension Cable
Infrastructure plug:	AC-YCX4-32A-LT
Rated power	22kW
Output	32A
No. of phases	3-phase
Contact resistance	≤0.3mΩ (L/N)
Isolation resistance	500MΩ (1000V AC)
High voltage resistance	2600V AC
Resistor coding	680Ω
Contact thermal rise	≤50K
Charge mode	IEC 62196-2, IEC 61851-1
Working humidity	5%-95%non condensed
Protection type	IP55 (plugged in)
Flammability standard	UL94 V-0
Withdrawal force	45N…80N
Pluging cycles	≥10000x (no load)
Operating temperature	-25°C...+55°C
Cable	52.5mm2 + 10,75mm2
Weight	2100g

Each charger will be fully inspection to ensure product performance in good condition:

Withstand voltage insulation test - start high voltage machine test
Charging preparation -- measuring input voltage
Charging connection confirmation - measuring resistance
Ready to charge - measure current
Ready to charge - measuring frequency
Start up and charging stage - measure the output voltage
Start up and charging phase - measuring output current
Normal charge end test - measure output voltage
CP Disconnection Test: measure the output voltage after resuming charging
CP ground test - measure output voltage
Input overvoltage protection - measure output voltage
Input overvoltage protection - automatic recovery function, measuring output voltage
Input undervoltage protection - measure output voltage
Input undervoltage protection - automatic recovery function, measuring output voltage
Leakage protection - measuring output voltage
Overcurrent protection - measuring output current
Over current protection - automatic recovery function, measuring output current

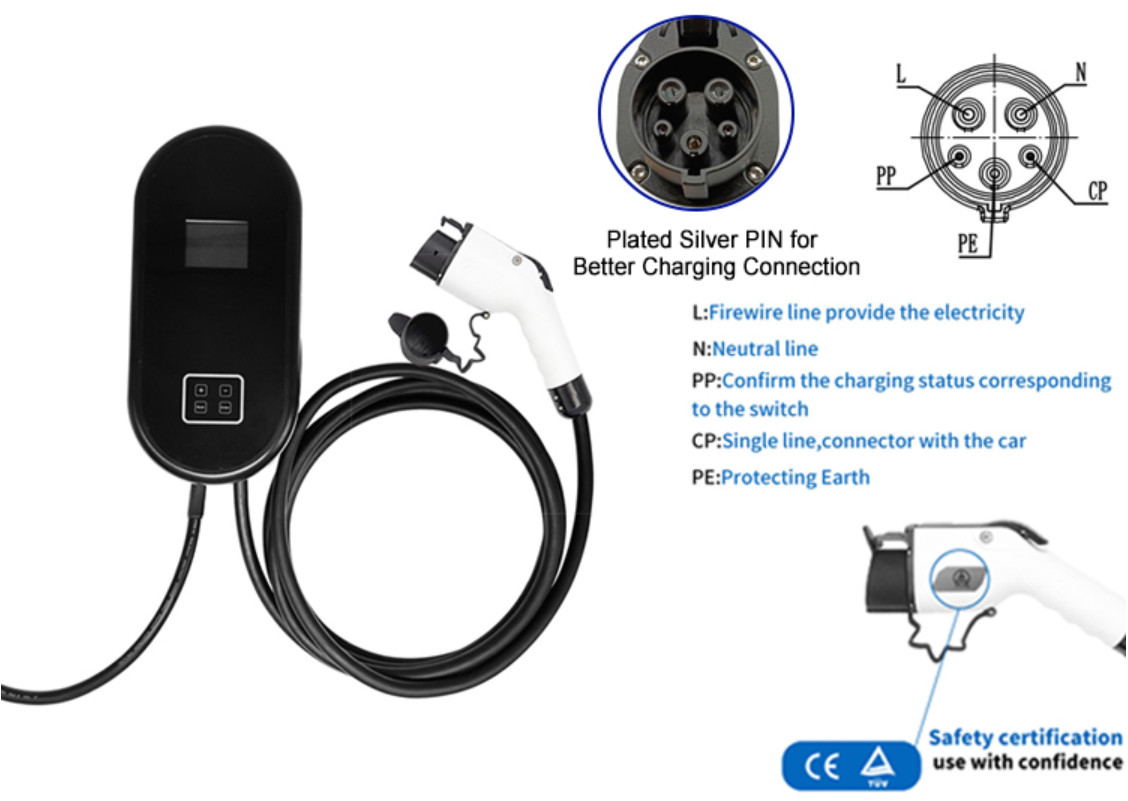

32A EV Charger Cable Type 2 22kw Charger Plug Cable 250V 3 Phase 0
