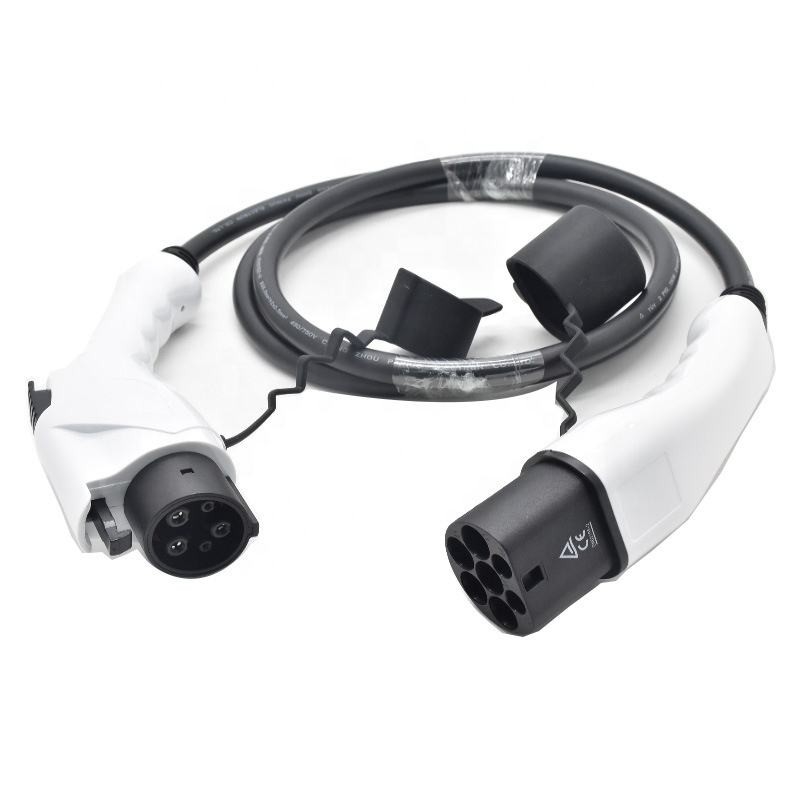

TUV Three Phase Type 2 EV SE Cable , Electric Car Type 2 Cable

Name: TUV Three Phase Type 2 EV SE Cable , Electric Car Type 2 Cable
Brand: TOPSUN
SKU: T-EN-EV32
Price: 1 USD
Availability: InStock
Rating: 4.7 (161 reviews)

Minimum Order Quantity :	10 sets	Packaging Details :	Carton
Delivery Time :	5~10 days

Brand Name:	TOPSUN	Certification:	TUV, CE, UL
Model Number:	T-EN-EV32

Detail Information
Connector:	Type 2 Portable EV Charger Cable	Working Voltage:	110V~240V AC
Rated Current:	32A 1 Phase	IP:	IP54
Standard:	IEC 62196	Certificate:	TUV, CE
Working Temperature:	-30℃~+50℃	Contact Impedance:	0.5M Max
Warrenty:	3 Years
High Light:	Three Phase EV SE Cable , TUV electric car type 2 cable , IEC 62196 electric car type 2 cable

Product Description

Three Phase 32A 22kw Portable Ev Charger Level 2 Type 2 EV SE cable

Electrical Performance
Protection rank	IP54
Fire retardant level	94 V-0
Rated Current	16A / 32A
Rated voltage	250V / 480V~
Insulation resistance	> 1000M ohm (DC 500V)
Terminal temperature rise	<50K
Withstand voltage	2000V
Contact resistance	0.5m ohm Max
Coupled insertion force	0.5m ohm Max
Coupled insertion force	>45N <80N
Operating temperature	30℃to 50℃
Mechanical Testing
Mechanical life	no load plug in / pull out > 10000 times
Impact of external force	qualify 1m drop or 2 Ton vehicle run over
Materials Applied
Connector	by copper alloy with nickel bottom plating and 3um silver surface plating
Shell	white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
Cable	black with TPU jacket. Other color optional by customizing
Features
Features	Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014 IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance
Package
Package	Each in PE bag, then in Pizza box, then 5 Pizza boxes into 1 master carton Deluxe pack: each in Oxford cloth with zipper & handle, easy for end users to keep
Customizing
Customizing	Logo put on shell by laser or flexible tooling; on Oxford cloth bag by printing
Certificate
Certificate	CE, UKCA, ROHS, ISO

Parameters

Rated current: 32A
Working voltage: 220V AC
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Vibration resistance: Meet JDQ 53.3 requirements
Working temperature: -30°C ~+ 50°C
UL, TUV approved
