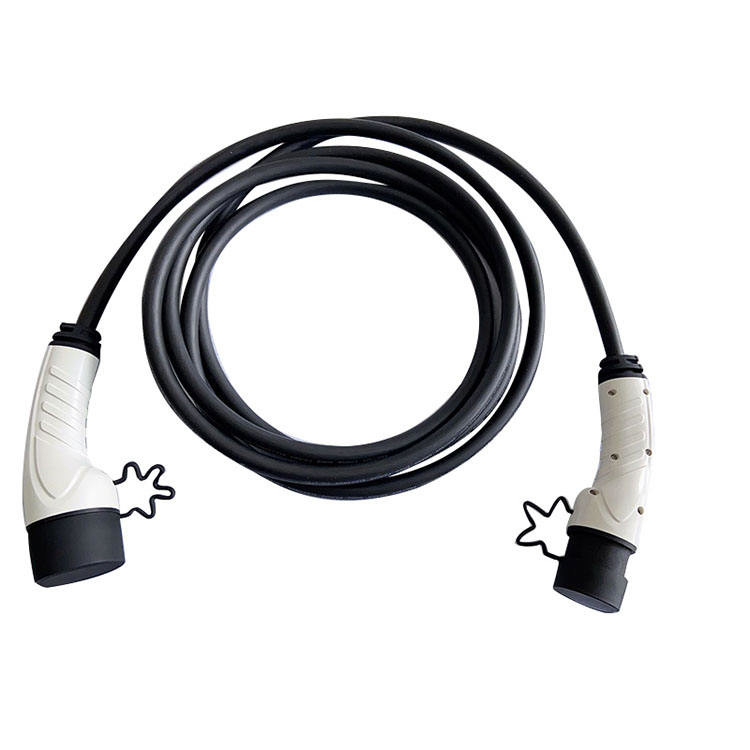

SAE J1772 Level 3 Ev Charging Cable Type 2 Reinforced Thermoplastic

Minimum Order Quantity :	10 sets	Packaging Details :	Carton
Delivery Time :	5~10 days

Brand Name:	TOPSUN	Certification:	TUV, CE, UL
Model Number:	T-EN-EV32

Detail Information
Connector:	SAE J1172	Rated Voltage:	220V~250V
Rated Current:	32A 1 Phase	IP:	IP54
Standard:	IEC 62196	Color:	Blue, Green, Orange, Black, White, Grey
Working Life::	More Than 10000 Times	Warrenty:	3 Years
High Light:	Level 3 EV Charging Cable , SAE J1772 EV Charging Cable , SAE J1772 type 2 charging cable

Product Description

Ev Charger Mode Level 3 Electric Ev Charging Cable Car Type 2 Type 1 To Type 2

Type 1/SAE J1772 to Type 2/IEC 62196-2 EV Charging Cable
Meet SAE J1772(Type 1 EV Plug) and IEC 62196-2 (Type 2 EV Plug)
Meet SAE J1772(Type 1 EV Connector) and IEC 62196-2 (Type 2 EV Plug)
EV Cable length: 3m, 5m, 10m or customized EV Portable Charger
Color of EV Charging Cord : Orange ,Green and Black.

Product Paramenters

Product Definition
Stadnard	IEC 62196-2:2016
Charging Mode	Mode 2
Power Plug Type	Schuko/Other
Current Type	AC
Housing Color	white/black
Cable Color	Black

Electric Parameter
Rated Current	16A, 1Phase
Rated Voltage	220V-250V
Power Pin Numbert	3 ( L1, N, PE )
Signal Pin Numbert	2 ( PP, CP )
Signal Pin Current	2A
Insulation Resistance	≥5MΩ

Ambient condition
AmbientTemperature ( working )	-30℃--50℃
AmbientTemperature ( storage )	-40℃--80℃
Ingress Protection	IP54

Mechanical Performance
Insertion & Pullout Times	＞10000 times
Insertion & Pullout Force	45N～100N
Withstanding Impact Force	Affordable 1 meter height fell or 2 ton car run over presure

Major Material
Plug Material		Reinforced Thermoplastic, UL94V-0
Housing Material		Reinforced Thermoplastic, UL94V-0
Cap Material		PUR
Pin Material		Copper Alloy, Silver Plated
Cable Configuration
Single Phase 16A		32.5mm²+10.5mm²
Cable Style		flat cable
Cable Material		TPE

Functional definition:

Nissan LEAF, Nissan eNV-2000, VW eGolf Chevy Volt, Chevy Bolt, Chevy Spark Toyota Prius Plug-In, Prius Prime,Toyota Rav4 EV Hyundai Ioniq,Kia Soul EV, Mercedes B Class Electric Drive,BMW i3 and i8 Ford Focus Electric, Ford C-Max Energy, Ford Fusion Energy, Fiat 500e ZERO motorcycle , Brammo motorcycle ,Smart Electric Drive, Karma Fisker, Mitsubishi iMiev, Cadillac ELR Porsche Cayenne S-E, Porsche Panamera S-E ,Honda Accord Plug-In Hybrid, Honda Fit EV ,Smart ,Honda
