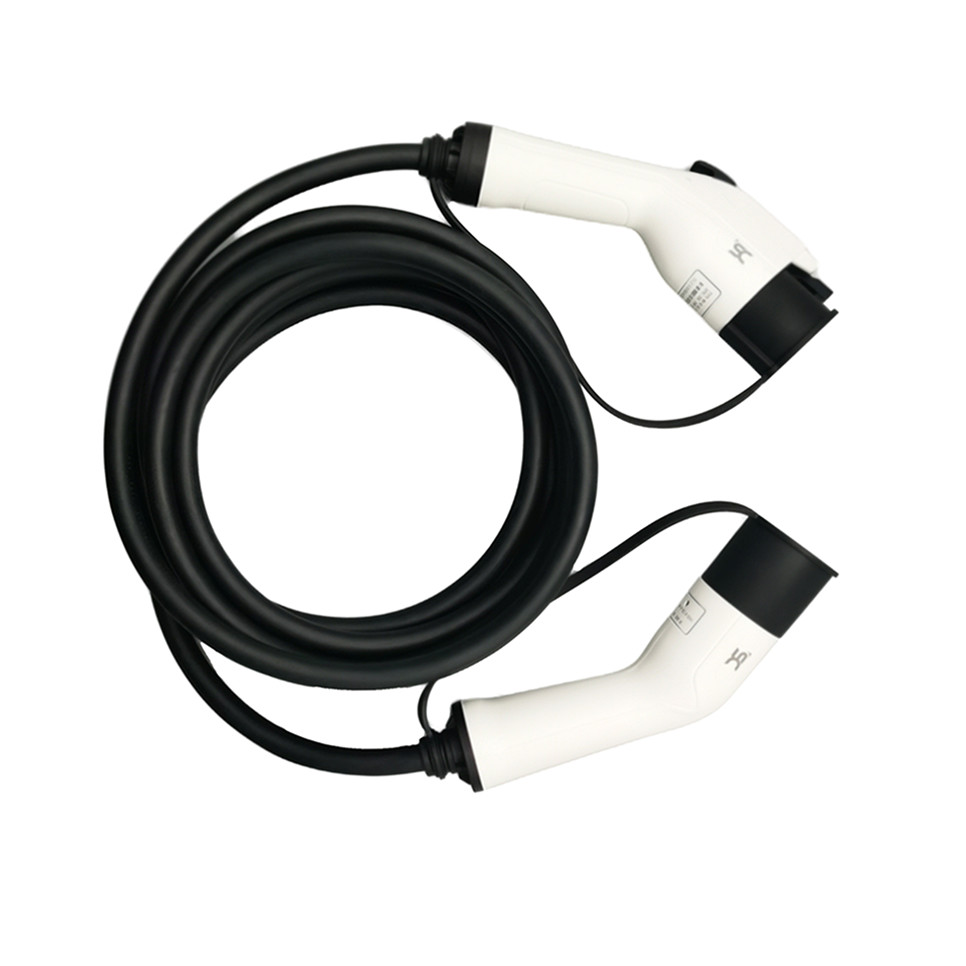

IP67 Type1 SAE J1772 EV Charger Cable Charging Plug

Product Description

IP67 Type1 SAE J1772 EV Charger Cable Charging Plug
Features

• APP remote intelligent control to turn on and stop charging；
• Waterproof grade IP65, can be installed and used outdoors；
• Temperature monitoring, high temperature automatic power off；
• Leakage protection；
• automatic protection when the voltage is too high, when the voltage is too low
• LED display shows charging status；
• Optional wall mounting and column mounting (purchase column type)；
• Two payment methods when used in commercial places: card and APP payment


Electric vehicle charging control box to meet the requirements of the SAEJ1172 also has the following functions:
With input overvoltage protection under-voltage protection over-current protection with automatic stop function and
over temperature protection function.
Over voltage protection: 230 * 1.2 AC
Under voltage protection: 230 * 0.8 AC
Over current protection: 16A
Automatic power off: when the charging current lasting 0.5 hours less than 0.3 A, automatically disconnect output,
when the charging time lasted 36 hours, disconnect the output automatically
Over temperature protection: built-in temperature sensor, the internal temperature reaches 80 degrees, suspension of
work, the temperature dropped to 70 degrees to return to work.
Leakage protection: After the leakage current is larger than 100 ma, cut off the output within 100 mm, and tip leakage
The above protection error in 3%.

Electric vehicle charging control box of working state

Brief manual
1. Insert the power plug into outlet, make sure the socket with reated current below 16A.
2. Press the Amp Selection button for test the current.Choose the current type you need.
3. Insert the vehicle connector charging gun into your vehicle's inlet.
4. The screen showing CONNECTED, then start charging.
5. Middle bottom you can make time delay chose the 1-9hour charge later.
6. Right bottom you can choose charging hours.
