Product Description

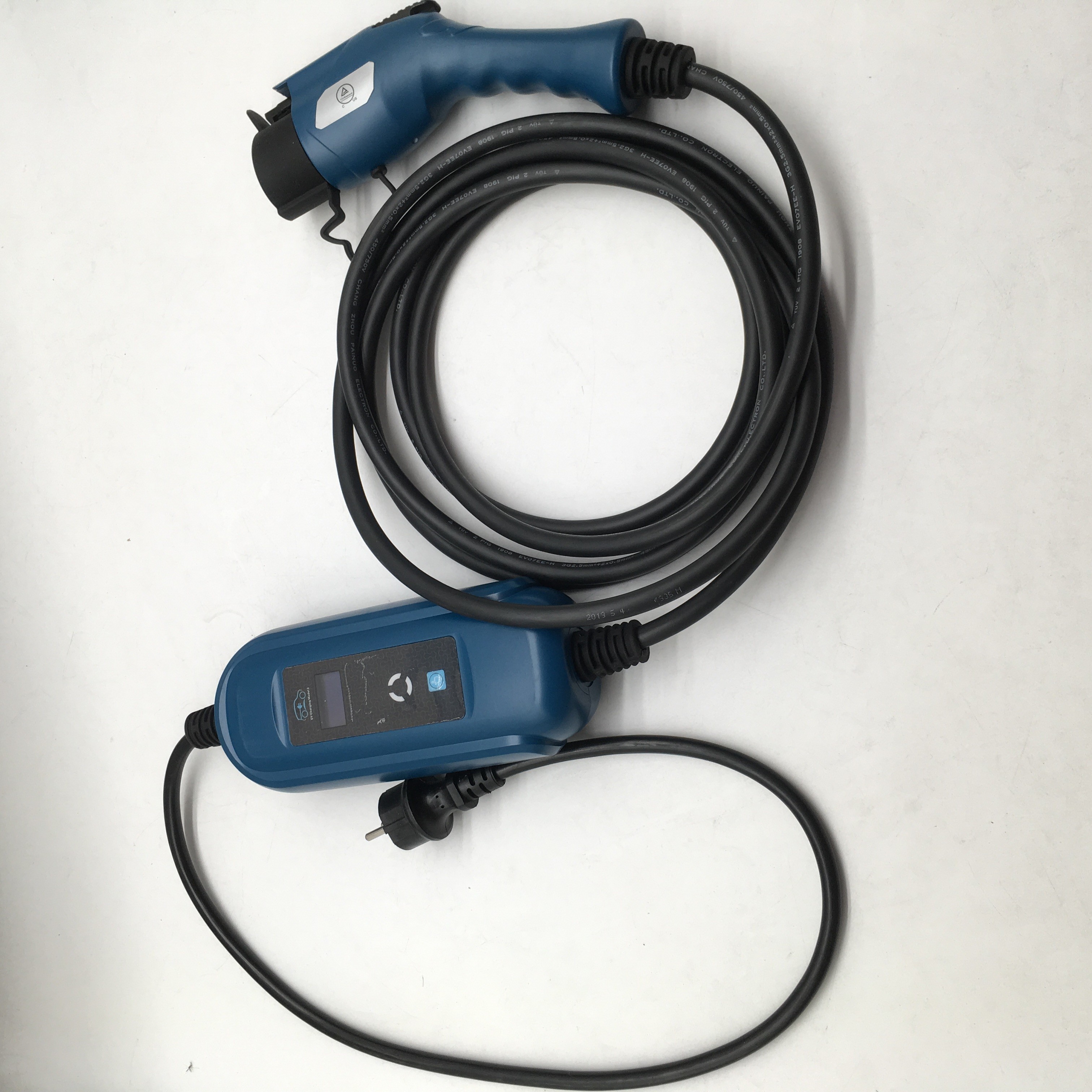

32A Level 2 Smart Electric Vehicle CAR Charger EV Charging Station
Length: 5m or customized
Connector: IEC 62196, SAE J1772, GBT
Plug: Schuko or other.
Nice shape and easy to use, protection class IP55(in mated conditions)
Product specification:
|
|
Power Supply
|
1P+N+PE
|
|
Rated Voltage
|
230V AC
|
|
Rated Current
|
32A
|
|
Frequency
|
50/60HZ
|
|
|
Output Voltage
|
230V AC
|
|
Output Current
|
32A
|
|
Output Power
|
7Kw
|
|
|
Charging Port
|
Type 2 Cable
|
|
Cable Length
|
3.5/4/5M
|
|
Enclosure
|
Plastic PC940A
|
|
LED Indicator
|
Yellow/ Red/Green
|
|
RFID Reader
|
Mifare ISO/IEC14443A
|
|
Start Mode
|
Plug&Play/Rfid card/App
|
|
Emergency Stop
|
Yes
|
|
|
RFID
|
YES
|
|
Wifi
|
Optional
|
|
4G
|
Optional
|
|
Ethernet
|
Optional
|
|
OCPP
|
OCPP 1.6 Json
|
|
|
Energy Meter
|
No
|
|
RCD
|
30mA Type A+6mA DC
|
|
Ingress Protection
|
IP65
|
|
Impact Protection
|
IK10
|
|
Certification
|
CE
|
|
Warranty
|
2Years
|
|
|
Installation
|
Wall-mount/Pole-mount
|
|
Work Temperature
|
-25℃~+50℃
|
|
Word Humidity
|
5%~95%non-condensing
|
|
Work Altitude
|
<2000M
|
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver plating
Sealing gasket: silicon rubber
Product Parameters
| Type |
CBYEN-ev16-P |
Plug the power |
80N<F<100N |
| Color |
Black/White/customized |
Patch life |
≥10000 |
| Rated Current |
8A/10A/13A/16A |
Fire rating |
UL94 V-0 |
| Rated Voltage |
110V~250V |
Waterproof rating |
IP55 |
| Resistance Voltage |
2000V |
Operating Temperature |
-30°C to50°C |
| Insulation resistance |
>1000MΩ |
Cable Specifications |
3*2.5mm2+2*0.5mm2 |
| Contact resistance |
less than 0.5mΩ |
The main material |
PA/Copper Alloy |
Functional definition
| Mark |
Functional Definition |
| 1-(L1) |
AC power |
| 2-(L2) |
AC power |
| 3-(L3) |
AC power |
| 4-(N) |
Neutral |
| 5-(PE) |
PE |
| 6-(CP) |
Control Confirmation |
| 7-(PP) |
Connection Confirmation |
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current:8A/10A/13A/16A adjustable.
The control box have Over Temperature protection:
When the internal temperature of the control box exceeds 85°C,enter over-temperature protection, stop charging. It will recover charging after the temperature drops to 65°C.
LED Display:
1. Charging Temperature
2. Charging Current
3.Charging Voltage
4. EnergyCharged in KW/h
5. Appointment time, charged time.
6. Set Current
7. Charging speed in KW
Method of use:
1. Press the blue button to change current:
2. Plug in the power plug.
3. Press the Blue button to select the current.
4. Connect the type 1 or type 2 adapter/plug to your car. ( When change current, the EV charger is not connected with car, or it can not be changed)
5. Press the green button to set charging time. It support to set charging 1-10 hours later. For example, it is 8 pm now, you want to start charging at 2 pm,you can set the charging time 6 hours.
Certificates
TUV&CE
