Product Description

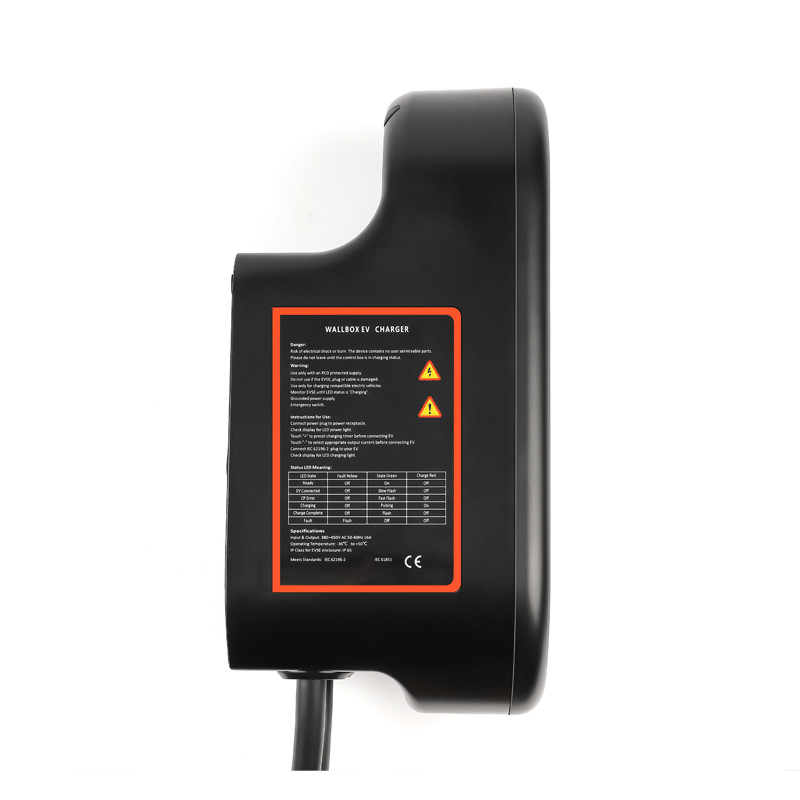

7kw Smart Electric Car Chargers Station Single Phase 32a Wallbox Ev Charger Type2
Mode 2 Poertable EV charger Home Charger 8A-10A-13A-16A Switchable and Time-delay.
Length: 5m or customized
Connector: IEC 62196, SAE J1772, GBT
Plug: Schuko or other.
Nice shape and easy to use, protection class IP55(in mated conditions)
Product specification:
Brand:TOPSUN
Rate Current:8A/10A/13A/16A
Rate Voltage:110V~450V
Rate Power:3.6~11kw
Cable length:5M or customized
Certificate:TUV,CE
Cable Specifications:5*2.5mm²+2*0.5mm²
Color: Black, Orange, Green, Blue, Grey, White, Red.
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver plating
Sealing gasket: silicon rubber
Product Parameters
| Type |
CBYEN-ev16-P |
Plug the power |
80N<F<100N |
| Color |
Black/White/customized |
Patch life |
≥10000 |
| Rated Current |
8A/10A/13A/16A |
Fire rating |
UL94 V-0 |
| Rated Voltage |
110V~450V |
Waterproof rating |
IP55 |
| Resistance Voltage |
2000V |
Operating Temperature |
-30°C to50°C |
| Insulation resistance |
>1000MΩ |
Cable Specifications |
5*2.5mm2+2*0.5mm2 |
| Contact resistance |
less than 0.5mΩ |
The main material |
PA/Copper Alloy |
Functional definition
| Mark |
Functional Definition |
| 1-(L1) |
AC power |
| 2-(L2) |
AC power |
| 3-(L3) |
AC power |
| 4-(N) |
Neutral |
| 5-(PE) |
PE |
| 6-(CP) |
Control Confirmation |
| 7-(PP) |
Connection Confirmation |
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current:8A/10A/13A/16A adjustable.
The control box have Over Temperature protection:
When the internal temperature of the control box exceeds 85°C,enter over-temperature protection, stop charging. It will recover charging after the temperature drops to 65°C.
LED Display:
1. Charging Temperature
2. Charging Current
3.Charging Voltage
4. EnergyCharged in KW/h
5. Appointment time, charged time.
6. Set Current
7. Charging speed in KW
Method of use:
1. Press the blue button to change current:
2. Plug in the power plug.
3. Press the Blue button to select the current.
4. Connect the type 1 or type 2 adapter/plug to your car. ( When change current, the EV charger is not connected with car, or it can not be changed)
5. Press the green button to set charging time. It support to set charging 1-10 hours later. For example, it is 8 pm now, you want to start charging at 2 pm,you can set the charging time 6 hours.
Certificates
TUV&CE
Why Choose Us
1, We had always adhered to the customer-oriented, excelsior as criterion, and win the market with quality to meet demand.
2, OEM Service Offered, Design Service Offered. 15 years’ experience and set up national standards for automotive connectors in China.
3, Fast delivery and 100% checking before shipment. Now we're exporting to worldwide with competitive prices , good quality and excellent services.
