Product Description

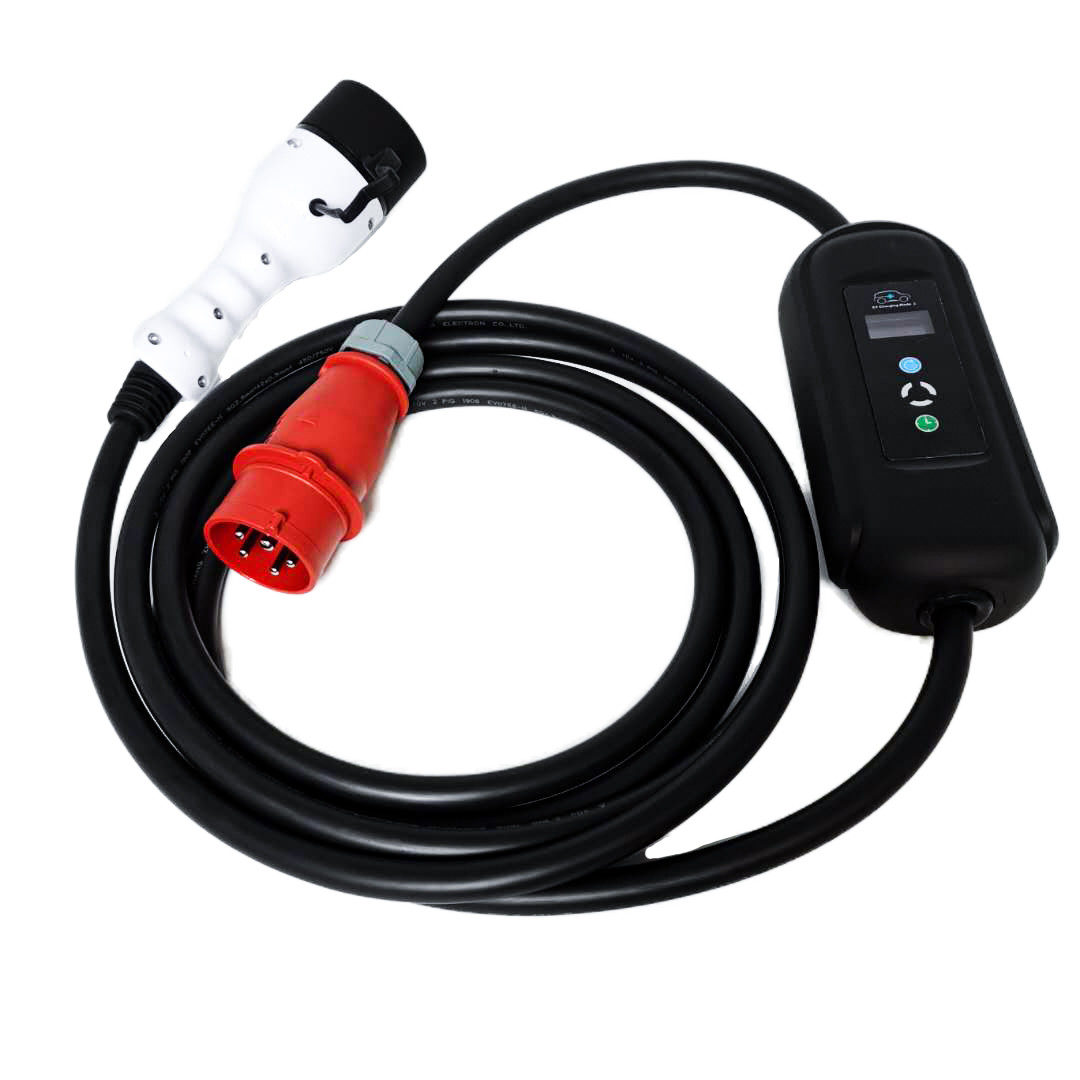

7KW Ev Charger J1772 Type 1 Level 2 EVSE Smart Electric Car Charger Station 32A Fast Charging Ev Charger Wallbox
* 3.5kw 7kw 11kw 22kw fast charging portable ev charger, fully charge a car within 4-8 hours
* Maximum 9 hours delay charging, avoiding day peak and saving cost charging during midnight
* Standard cable length 5m, 7.5m, 10m, total length over 6 m, 8.5 m, 11 m, customize length optional
* IP 65 suitable for indoor and outdoor
Product Parameters
|
Input/Output voltage
|
110~250Va.c.
|
110~450Va.c.
|
|
Frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
|
Max. current
|
16A/32A
|
16A/32A
|
|
EV connector
|
Type 1 & Type 2
|
Type 2
|
|
RCD
|
Type A
|
Type A+6mA d.c.
|
|
IP degree
|
IP65
|
IP65
|
|
Operating temperature
|
-25°C~+50°C
|
-25°C~+50°C
|
|
Relative humidity
|
5%RH~95%RH
|
5%RH~95%RH
|
|
Altitude
|
<2000m
|
<2000m
|
|
Static Power
|
<2W
|
<2W
|
|
Dimension
|
278mm(L)x81mm(D)
|
278mm(L)x81mm(D)
|
|
Standards
|
IEC/EN 62752
|
IEC/EN 62752
|
Product specification:
Brand:TOPSUN
Rate Current:8A/10A/13A/16A
Rate Voltage:110V~450V
Rate Power:3.6~11kw
Cable length:5M or customized
Certificate:TUV,CE
Cable Specifications:5*2.5mm²+2*0.5mm²
Color: Black, Orange, Green, Blue, Grey, White, Red.
Length: 5m or customized
Connector: IEC 62196, SAE J1772, GBT
Plug: Schuko or other.
Nice shape and easy to use, protection class IP55(in mated conditions)
Functional definition
| Mark |
Functional Definition |
| 1-(L1) |
AC power |
| 2-(L2) |
AC power |
| 3-(L3) |
AC power |
| 4-(N) |
Neutral |
| 5-(PE) |
PE |
| 6-(CP) |
Control Confirmation |
| 7-(PP) |
Connection Confirmation |
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current:8A/10A/13A/16A adjustable.
The control box have Over Temperature protection:
When the internal temperature of the control box exceeds 85°C,enter over-temperature protection, stop charging. It will recover charging after the temperature drops to 65°C.
LED Display:
1. Charging Temperature
2. Charging Current
3.Charging Voltage
4. EnergyCharged in KW/h
5. Appointment time, charged time.
6. Set Current
7. Charging speed in KW
Method of use:
1. Press the blue button to change current:
2. Plug in the power plug.
3. Press the Blue button to select the current.
4. Connect the type 1 or type 2 adapter/plug to your car. ( When change current, the EV charger is not connected with car, or it can not be changed)
5. Press the green button to set charging time. It support to set charging 1-10 hours later. For example, it is 8 pm now, you want to start charging at 2 pm,you can set the charging time 6 hours.
