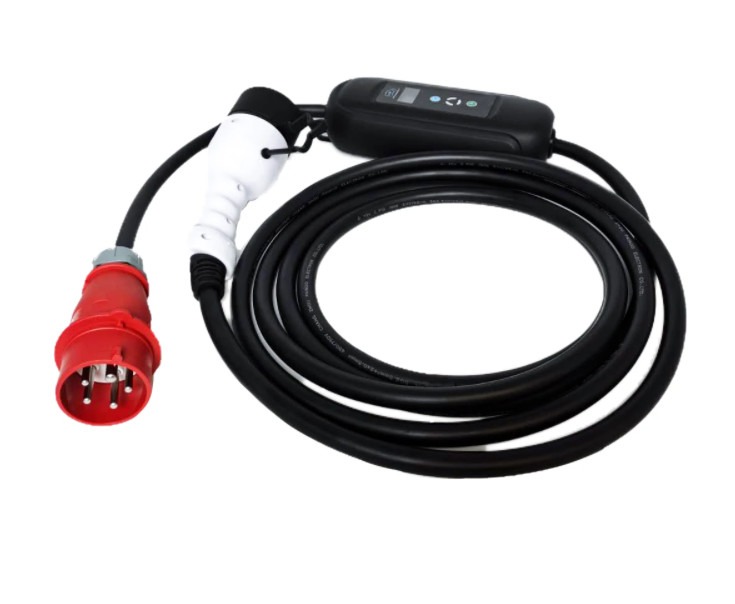

7KW AC Type2 Level2 Smart EV Wallbox Charger for Electric Car
Features
1. Conform to the provisions and requirements of IEC 62752,. IEC 61851.
2. Using riveting pressure process with none screw, have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3. TPE for cable insulation prolonging the aging resistance life-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4. Excellent protection performance, protection grade achieved IP55 (working condition).
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
TPE insulation, TPE Sheath EV Charging Cable for EV Plug & EV Socket, EV Charging Connector
Product specification:
Brand:TOPSUN
Rate Current:8A/10A/13A/16A
Rate Voltage:110V~450V
Rate Power:3.6~11kw
Cable length:5M or customized
Certificate:TUV,CE
Cable Specifications:5*2.5mm²+2*0.5mm²
Color: Black, Orange, Green, Blue, Grey, White, Red.
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver plating
Sealing gasket: silicon rubber
Product Parameters
| Type |
CBYEN-ev16-P |
Plug the power |
80N<F<100N |
| Color |
Black/White/customized |
Patch life |
≥10000 |
| Rated Current |
8A/10A/13A/16A |
Fire rating |
UL94 V-0 |
| Rated Voltage |
110V~450V |
Waterproof rating |
IP55 |
| Resistance Voltage |
2000V |
Operating Temperature |
-30°C to50°C |
| Insulation resistance |
>1000MΩ |
Cable Specifications |
5*2.5mm2+2*0.5mm2 |
| Contact resistance |
less than 0.5mΩ |
The main material |
PA/Copper Alloy |
Functional definition
| Mark |
Functional Definition |
| 1-(L1) |
AC power |
| 2-(L2) |
AC power |
| 3-(L3) |
AC power |
| 4-(N) |
Neutral |
| 5-(PE) |
PE |
| 6-(CP) |
Control Confirmation |
| 7-(PP) |
Connection Confirmation |
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current:8A/10A/13A/16A adjustable.
The control box have Over Temperature protection:
When the internal temperature of the control box exceeds 85°C,enter over-temperature protection, stop charging. It will recover charging after the temperature drops to 65°C.
LED Display:
1. Charging Temperature
2. Charging Current
3.Charging Voltage
4. EnergyCharged in KW/h
5. Appointment time, charged time.
6. Set Current
7. Charging speed in KW
Method of use:
1. Press the blue button to change current:
2. Plug in the power plug.
3. Press the Blue button to select the current.
4. Connect the type 1 or type 2 adapter/plug to your car. ( When change current, the EV charger is not connected with car, or it can not be changed)
5. Press the green button to set charging time. It support to set charging 1-10 hours later. For example, it is 8 pm now, you want to start charging at 2 pm,you can set the charging time 6 hours.
