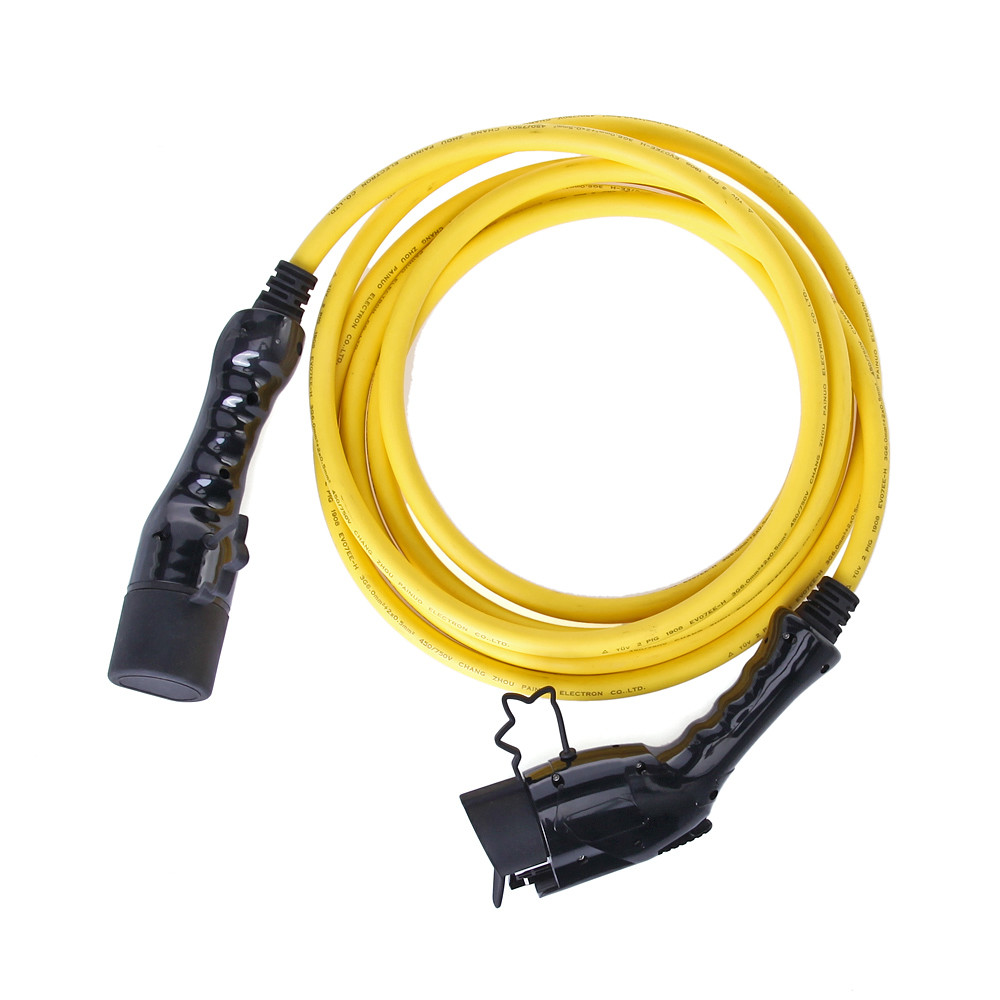

10A 13A Adjustable Type 2 Extra Long Ev Charging Cable Type 2 To Type 1 10m IP54

Contact Now

10A 13A Adjustable Type 2 Extra Long Ev Charging Cable Type 2 To Type 1 10m IP54

Minimum Order Quantity :	10 sets	Packaging Details :	Carton
Delivery Time :	5~10 days

Brand Name:	TOPSUN	Certification:	TUV, CE, UL
Model Number:	T-EN-EV32

Detail Information
Connector:	Type 2 Portable EV Charger Cable	Working Voltage:	110V~240V AC
Rated Current:	32A 1 Phase	IP:	IP54
Standard:	IEC 62196	Certificate:	TUV, CE
Working Temperature:	-30℃~+50℃	Contact Impedance:	0.5M Max
Warrenty:	3 Years
High Light:	IP54 10A extra long ev charging cable , IP54 13A extra long ev charging cable , type 2 cable10m IP54

Product Description

6A/8A/10A/13A/16A Adjustable Home Use Type 2 Portable EV Charger Cable

Materials

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber

Product Parameters

Type	EN-ev32-LT	Plug the power	80N<F<100N
Color	Black/White	Patch life	≥10000
Rated Current	32A	Fire rating	UL94 V-0
Rated Voltage	220V~250V	Waterproof rating	IP54
Resistance Voltage	2000V	Operating Temperature	-30°C to50°C
Insulation resistance	>1000MΩ	Cable Specifications	36mm2 -20.5mm2
Contact resistance	less than 0.5mΩ	The main material	PC/Copper Alloy

Functional definition:

Mark	Functional Definition
1-(L1)	AC power
2-(L2)	AC power
3-(L3)	AC power
4-(N)	Neutral
5-(PE)	PE
6-(CP)	Control Confirmation
7-(PP)	Connection Confirmation

Parameters

Rated current: 32A

Working voltage: 220V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

UL, TUV approved

Charging Cable Spec

TUV or UL 3*6mm2+2*0.5mm2

Cord length: 5m or customized

Orange or Black
