16.4ft Cable EV Charging Connector SAEJ1772 Ccs Combo 2 Connector Female Type
16.4ft Cable EV Charging Connector SAEJ1772 Ccs Combo 2 Connector Female Type
Contact Now

Detail Information
Application: Automotive Material: Plastic
Connector Type: Female Color: Black & White
Pin: EV 7 Way Plug Cord Lenth: 5m(16.4ft)
Rated Current: 16A Or 32A Rated Voltage: 250V Or 415V
High Light:

16.4ft cable EV Charging Connector

,

16.4ft EV Charging Connector SAEJ1772

,

16.4ft ccs combo 2 connector Female type

Product Description

7 Way Plug EV Connector Electric Car Charging Connector For Car



Application For Home,Office, Public Place,Service Area.



Product Paramenters
Product Definition
Electric Parameter
Stadnard
IEC 62196-2:2016/
SAEJ1772
Rated Current
32A
Charging Mode
Mode 3
Rated Voltage
250V
Connector Manner
B
Power Pin Numbert
3 ( L, N, PE )
Current Type
AC
Signal Pin Numbert
2 ( PP, CP )
Housing Color
white
Signal Pin Current
2A
Cable Color
Black
Insulation Resistance
≥5MΩ



Ambient Condition
Mechanical Performance
AmbientTemperature
( working )
-30℃--50℃
Insertion & Pullout Times
＞10000 times
AmbientTemperature
( storage )
-40℃--80℃
Insertion & Pullout Force
45N～100N

Ingress Protection

IP54

Withstanding Impact Force
Affordable 1 meter height fell or 2 ton car run over presure



62916 MALE PLUG
RATED CURRENT: 16A OR 32A
OPREATION VOLTAGE: 250V OR 415V
OPREATING TEMPERATURE: - 30"C~ + 50C
CASE MATERIAL: THERMOPLASTIC
MECHANICAL LIFE: NO-LOAD PLUG IN/PULL OUT
≥10000TIMES



62916 FEMALE SOCKET
RATED CURRENT: 16A OR 32A
OPREATION VOLTAGE: 250V OR 415V
OPREATING TEMPERATURE: - 30"C~ + 50'C
CASE MATERIAL: THERMOPLASTIC
MECHANICAL LIFE: NO-LOAD PLUG IN/PULL OUT
210000TIMES



62916 FEMALE PLUG
RATED CURRENT: 16A OR 32A
OPREATION VOLTAGE: 250V OR 415V
OPREATING TEMPERATURE: - 30°C~ + 50C
CASE MATERIAL: THERMOPLASTIC
MECHANICAL LIFE: NO-LOAD PLUG IN/PULL OUT
≥10000TIMES


62916 MALE PLUG
RATED CURRENT: 16A OR 32A
OPREATION VOLTAGE: 250V OR 415V
OPREATING TEMPERATURE: - 30C~ + 50'C
CASE MATERIAL: THERMOPLASTIC
MECHANICAL LIFE: NO-LOAD PLUG IN/PULL OUT
210000TIMES



LEVEL 2 TYPE1 HOME CHARGER
RATED CURRENT AND VOLTAGE: 110V AC 16A
OPREATING TEMPERATURE: - 30°~ + 50'C
CASE MATERIAL: THERMOPLASTIC
MECHANICAL LIFE: NO-LOAD PLUG IN/PULL
CONTROL Box MEET SEAJ1 J17722010 CONTROL

SAE 1772 MALE SOCKET
RATED CURRENT: 16A OR 32A oR 40A OR 50A
OPREATIONVOLTAGE: 250V
OPREATING TEMPERATURE: 30C~ + 50C
CASE MATERIAL: THERMOPLASTIC
MECHANICAL LIFE: NO.LOAD PLUG INA
INPULL OuTz10000TIMES

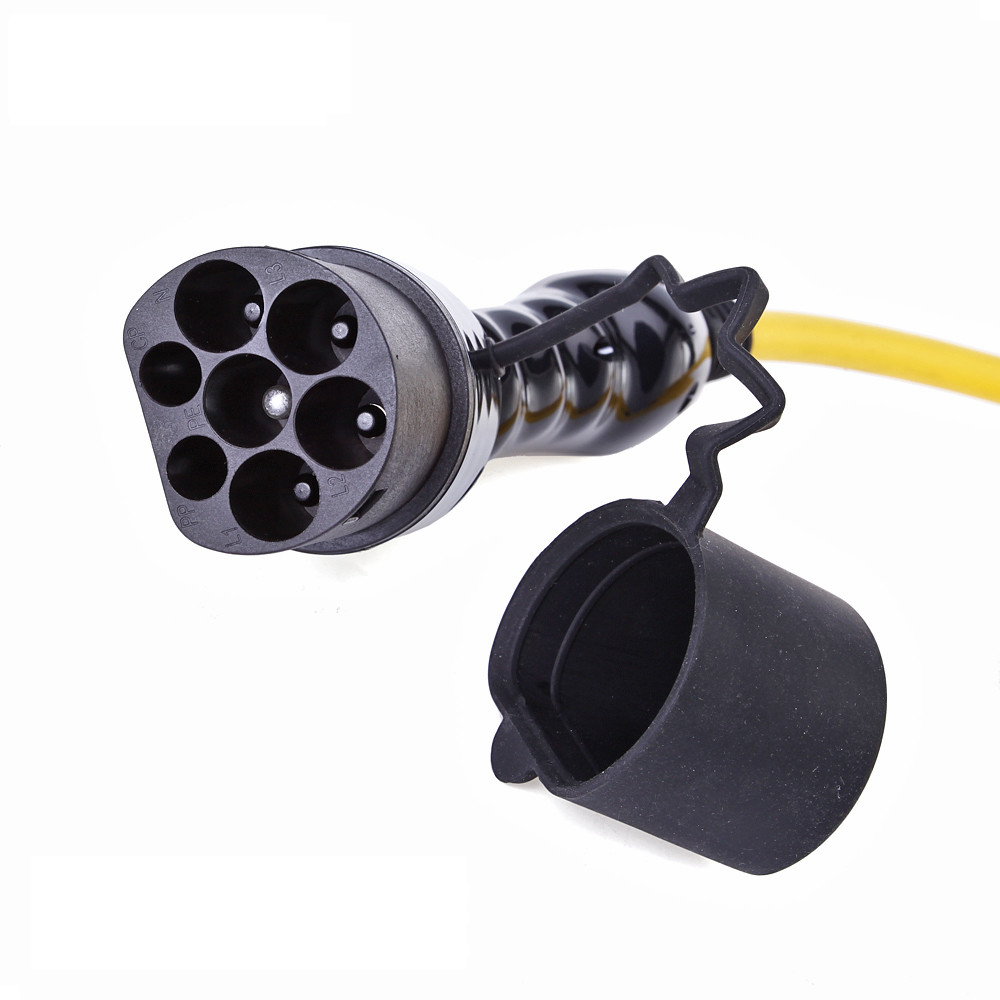

16.4ft Cable EV Charging Connector SAEJ1772 Ccs Combo 2 Connector Female Type 0

16.4ft Cable EV Charging Connector SAEJ1772 Ccs Combo 2 Connector Female Type 1
