16amp 32amp 250V Rated Electric Car Charging Connectors Ccs Type 1 Type 2
Contact Person : sales
Phone Number : 13961612056
WhatsApp : +8613961612056
Detail Information |
|||
Name: | Type 2 To Type 1 EV Connector | Material: | Plastic |
---|---|---|---|
Connector: | Type 2 To Type 1 | Color: | Black & White |
Application: | Home,Office | Cord Lenth: | 5m(16.4ft) |
Rated Current: | 32A | Rated Voltage: | 250V Or 415V |
High Light: | IP54 250V 5m Charging Connector,IP54 415V EV Charging Connector,type 1 ev connector 3.6kw |
Product Description

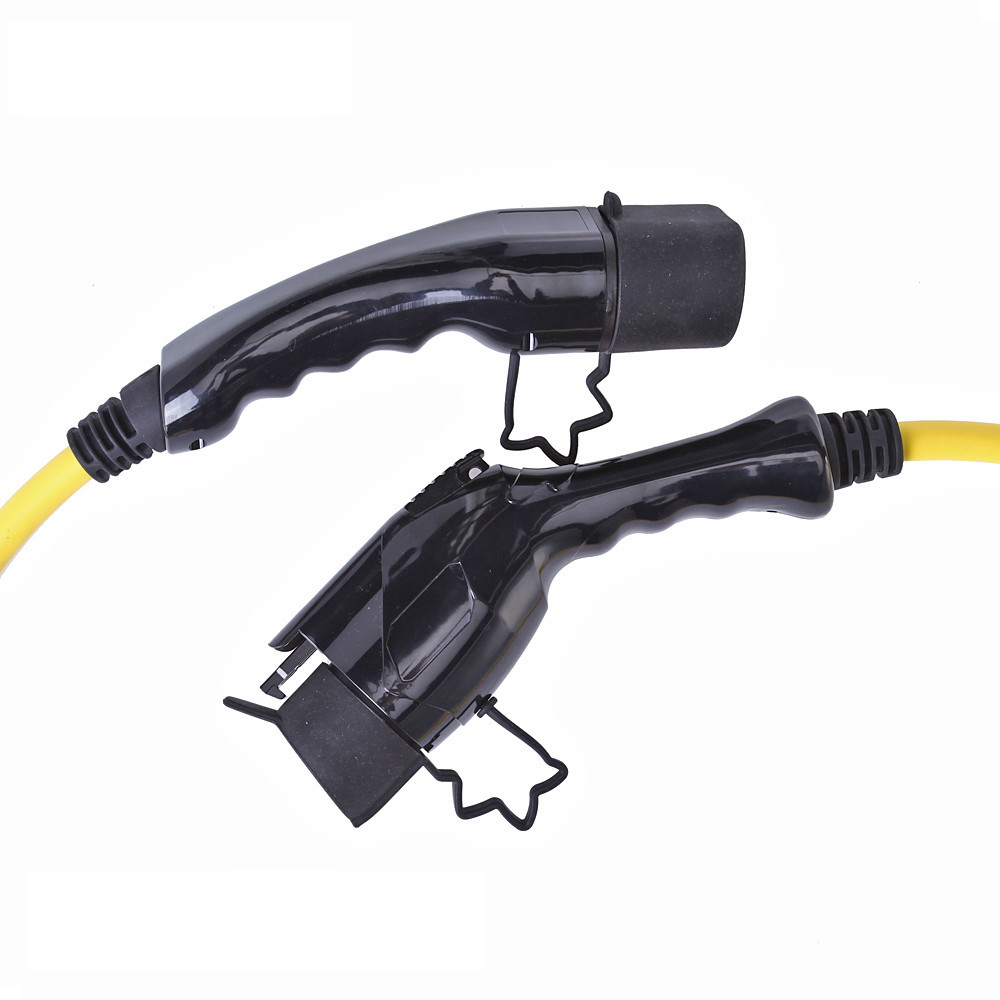

EV Connector Type 2 To Type 1 32A Adapter Type 2 EV Charging Cable
Safe and Stable Charge
The pins are made of sliver plated copper with
better conductivity and limited heat accumulation.
16A 1 phase, 3.6kw;
16A 3 phases, 11kw;
32A 1 phase, 7.2kw;
32A 3 phases, 22kw;
Product Definition | Electric Parameter | ||
Stadnard | IEC 62196-2:2016/ SAEJ1772 | Rated Current | 32A |
Charging Mode | Mode 3 | Rated Voltage | 250V |
Connector Manner | B | Power Pin Numbert | 3 ( L, N, PE ) |
Current Type | AC | Signal Pin Numbert | 2 ( PP, CP ) |
Housing Color | white | Signal Pin Current | 2A |
Cable Color | Black | Insulation Resistance | ≥5MΩ |
Major Material | ||||
Plug Material | Reinforced Thermoplastic, UL94V-0 | |||
Housing Material | Reinforced Thermoplastic, UL94V-0 | |||
Cap Material | PUR | |||
Pin Material | Copper Alloy, Silver Plated | |||
Cable Configuration | ||||
Single Phase 32 A | 3*6 mm²+1*0.5mm² | |||
Cable Style | flat cable | |||
Cable Material | TPU |
1. 3.6kw, 7.2kw ,11kw, 22kw with 5m black white cable, or customized, meet IEC 62196-2 standard
2. Higher safety level, support outdoor using
3. Authoritatively certificated from CE, CCC, ROHS and so on
4. 1-year warranty for after-sale service
5. Customized service on LOGO, length, color and inner box
Customized Serivce
Products accept OEM, ODM and related customization. Acceptable custom parts include but are not limited to.
· The color of the plug, LOGO
· Cable length, color, LOGO
· The pattern on the packing carton, LOGO
Cautions
· The charging cable is only for EV charging using
· Don't submerge the charging cable in water
· Don't put finger into the charging plug
· Don't use the device when the cable is damaged
· Don't dis-assemble or refit the product
