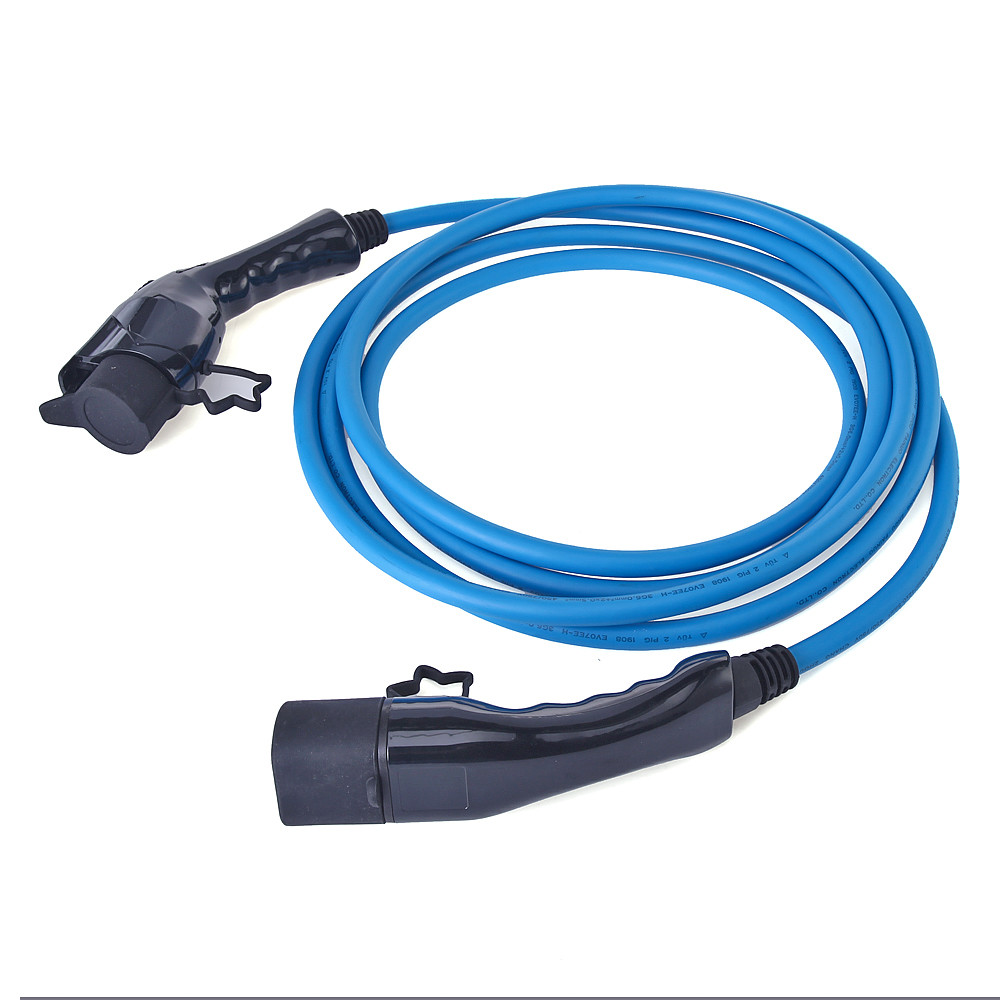

TUV 32A 240V Mode 3 Type 2 Charging Cable IEC62196 Fast Electric Charging Stations

Product Description

32A 240V Extension Cord For Electric Car 1 Phase Electric Vehicle Extension Cord

How To Use EV Charging

1. Firstly, the most important step is to make sure the charger is well connected to the power.
2. Secondly, use the integrated Type 2 charging cable plug to connect the charging station with your electric vehicle.
3. Once the charging cable has clicked in place you are ready to start the charge.
4. Also, there is the option to activate the charging station.How to stop the charging
1. Firstly, disconnect the Type 2 plug from the electric vehicle’s side when you finish charging.
2. If you wish to manually stop the charging you can do this by pressing the Emergency Button (the red button on the side of the charger) in case of an emergency.
How to check the charging status
1. You can monitor the charging process in real time from the LED screen display.

Materials

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber

Product Parameters

Functional definition:

Parameters

Rated current: 32A

Working voltage: 220V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

UL, TUV approved

Charging Cable Spec

TUV or UL 3*6mm2+2*0.5mm2

Cord length: 5m or customized

Orange or Black
