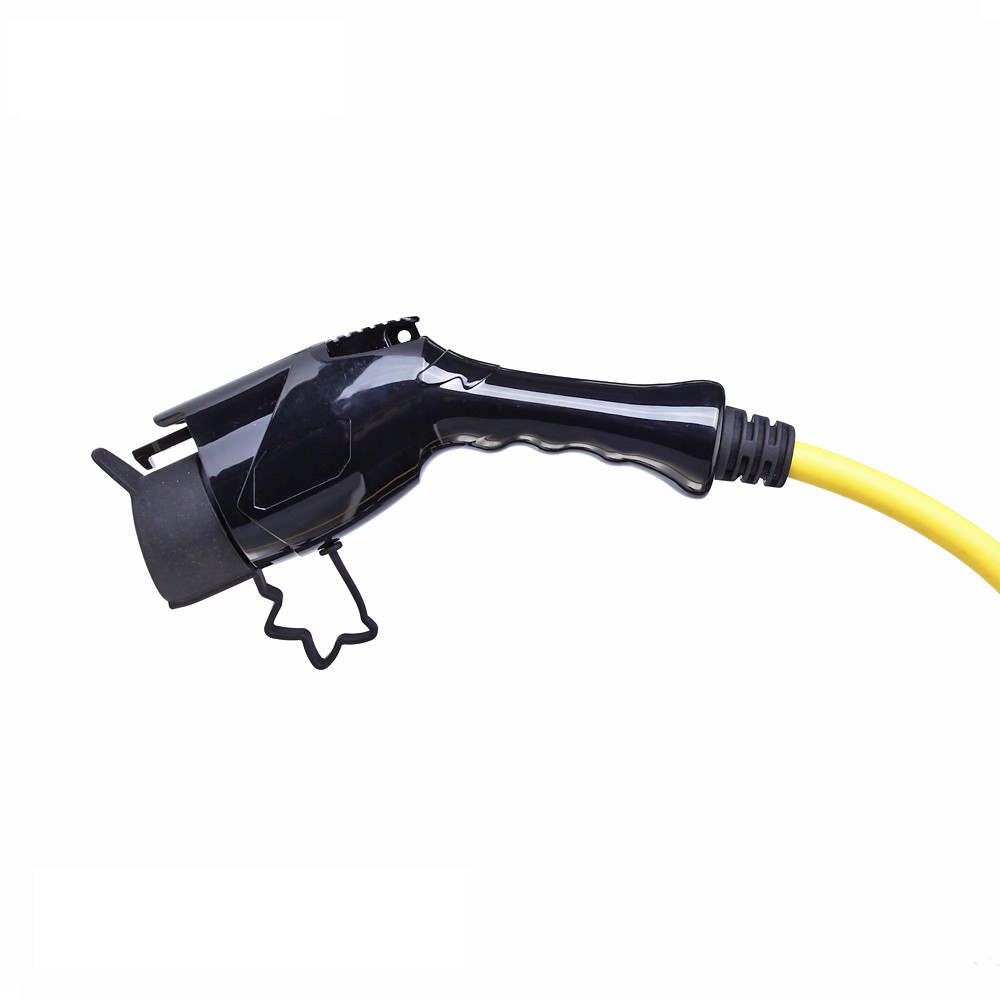

32A 7KW Ev Charging Cable Mode 3 SAE J1772 Power Extension Cable Extension Cord

Minimum Order Quantity : 10 sets Packaging Details : Carton
Delivery Time : 5~10 days
Brand Name: TOPSUN Certification: TUV, CE, UL
Model Number: T-UL-EV32

Detail Information

Connector: SAE J1772 Extension Cord Rated Voltage: 220V~250V
Rated Current: 32A Protection Type: IP54
Standard: SAE J1772 / IEC 62196 Nennleistung: 7KW
Working Temperature: -30℃~+50℃ Length: 5 Meters/ Customized
Warrenty: 3 Years
High Light:

32A ev charging cable mode 3

,

7KW ev charging cable mode 3

,

SAE J1772 power extension cable

Product Description

32A EV Charging Extension Cable 7KW SAE J1772 Extension Cord


1. 3.6kw, 7.2 kw with 5m black cable or customized, meet SAE J1772 IEC 62196-2 standard
2. Higher safety level, support outdoor using
3. Authoritatively certificated from CE, CCC, ROHS and so on
4. 1-year warranty for after-sale service
5. Customized service on LOGO, length, color and inner box



Customized Serivce
Products accept OEM, ODM and related customization. Acceptable custom parts include but are not limited to.
· The color of the plug, LOGO
· Cable length, color, LOGO
· The pattern on the packing carton, LOGO



Cautions
· The charging cable is only for EV charging using
· Don't submerge the charging cable in water
· Don't put finger into the charging plug
· Don't use the device when the cable is damaged
· Don't dis-assemble or refit the product


Product Parameters






Electrical Performance
Rated current
16A
Rated voltage
250V
Insulation resistance
>1000MΩ(DC500V)
Pins temperature rise
<50K
Withstand voltage
2000V
Contact impedance
0.5mΩMax


Mechanical Properties
Mechanical life
no-load plug>10000times
Impact resistance
be able to afford 1m drop and 2tons vehicle run over pressure
Insertion force
45N

Raw Material
Shell material
thermoplastics, flame retardant grade UL94-0
Pins
Copper alloy, silver plated+top thermoplastic
Environmental Performance
Temperature
-30℃~+50℃
Rated Current
Cable Specifification
Shell and cable
16A Single Phase
3x2.5mm²+2x0.5mm²
Shell color: black white optional
Cable color: black orange optional
32A Single Phase
3x6mm²+2x0.5mm²


Why Choose Us:

1, we are manufacturer. And we had always adhered to the customer-oriented, excelsior as criterion, and win the market with quality to meet demand.
2, OEM Service Offered, Design Service Offered. We have one team with around 20 years’ experience and set up national standards for automotive connectors in China.

3, Fast delivery and 100% checking before shipment. Now we're exporting to worldwide with competitive prices , good quality and excellent services.
