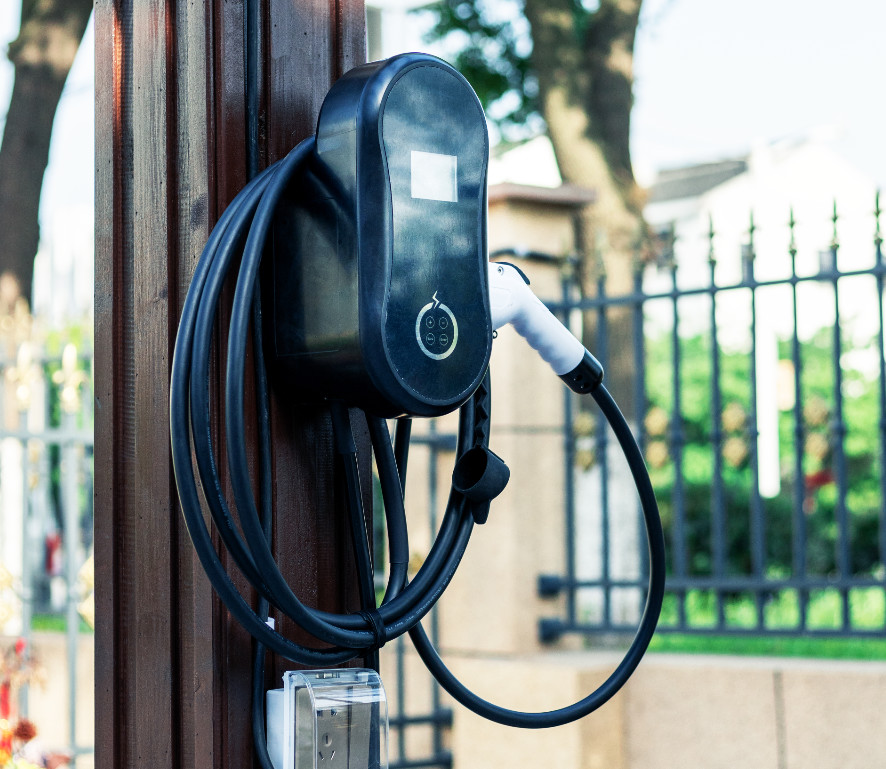

3.68KW 8A 16AMP Electric Charging Point At Home Ev Home Wall Charger With LED
3.68KW 8A 16AMP Electric Charging Point At Home Ev Home Wall Charger With LED
Contact Now

Detail Information
Product Name: Portable Electric Vehicle Charger Rated Output Power: 3.6KW
Rated Current: 16A Operating Frequency: 50Hz 60Hz
User Interface: LED Color: White/Black
Connection: L+N+PE Packing: Box
High Light:

3.68KW electric charging point at home

,

8A 16AMP electric charging point at home

,

ev home wall charger with LED

Product Description

IEC 61851 16A Portable Electric Vehicle Charger 5M Cable

The Functional Features of Portable AC EV Charger



1. Intelligent control chip,efficient and safe operation
2. 80V~250V wide range voltage design
3. Self-stop after full charge, no ham to the battery
4. Anti-vehicle crushing design



AC Nominal
Input
Phases / Lines
1 Phase + Neutral + PE
Voltage
230 V± 10%
Frequency
50Hz
AC Nominal
Output
Voltage
230 V± 10%
Current
8A 10A 13A 16A(4 Gears Adjustable)
Power
3.68KW (Max)
Structure Design
Housing Material
Aviation aluminum
LED Indicator
4 indicators
Display Screen
LED display
Power Cord Plug
UK / US / Schuko/ CEE / Nema(Optional)
Charging Outlet
One charging plug (Type 2)
Plug Cable Length
0.5M
Gun Cable Length
4.5M
Environmental
Operating Temperature
-30 ~ +50 °C
Working Humidity
5%~95% Without condensation
Working Altitude
<2000M
Index
Protection Grade
IP65(Third party report)
Application Site
Indoor / Outdoor
Cooling Method
Natural cooling
Security Protection
Multiple Protection
Over/Under voltage protection, Over/Under frequency protection,
Over/Under temperature protection, Over current protection,
Current leakage protection, Grounding protection.
MTBF
50,000 hours
Safety Standard
IEC62752, IEC61851, IEC62192 / SAE J1772
Warranty
1 years
Package Information
Product Dimension
238*84*44mm (Control Box)
Package Dimension
365*285*85mm
Net Weight
2KG
Gross Weight
2.5KG
External Packing
Carrying case + Carton box



 Features

*Level 2 Charger: Our portable electric car charger offers 110-250V and 10-32A to rejuvenate your J-plug electric vehicle with up to 7.2 kWh of juice, 5x faster than most cars' default chargers

*Wide Compatibility: This mobile EV charging station works for all IEC 62196 compatible electric cars and offers rapid stable charging compatible with models from Tesla, Chevrolet, Ford, BMW, Mercedes-Benz, Toyota, Honda, Nissan, Ferrari, and more!

* Highly Portective: The premium control circuitry protects your car against irregular grids and even lightning strikes, handing insufficient, excessive, and unstable frequency, voltage, and current as well as eliminating any overheating, improper grounding, or earth leakage

* Smart LCD Display: The LCD screen offers you complete charging status and lets you monitor power, current, voltage, temperature, and session length in real time

* Convenient Operation: The ergonomic handle offers sure and comfortable grip at all times.


*Muti-protection Function:Over-heat protection, over-voltage protection, waterproof protection, leakage protection, over-current protection, under-voltage protection, lighting protection
