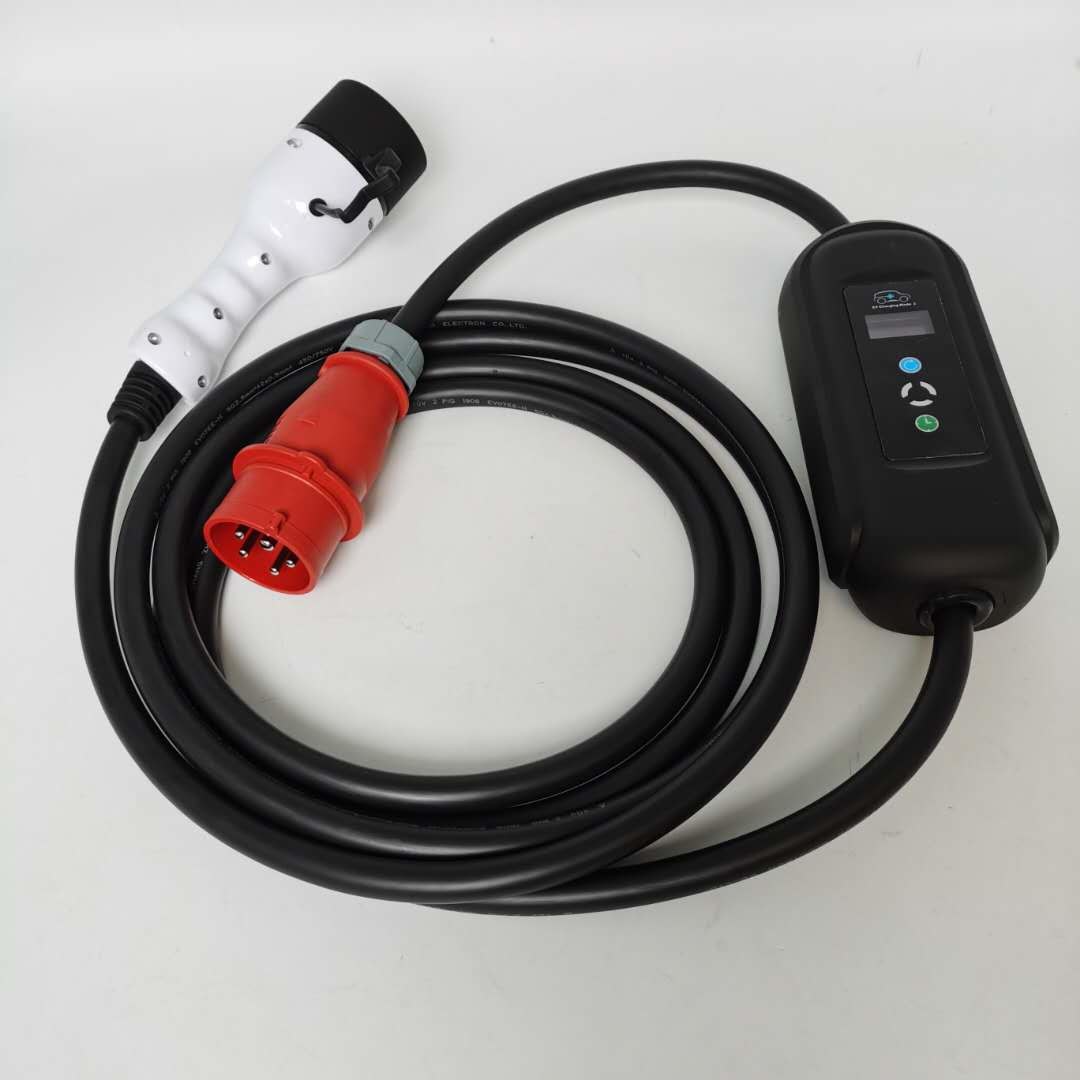

50kWh 10Amp Ev Car Portable Charger Portable Charging Station For Electric Cars Level 2
50kWh 10Amp Ev Car Portable Charger Portable Charging Station For Electric Cars Level 2
Contact Now

Detail Information
Product Name: AC EV Portable Charger Cord Lenght: 5m Or Customized
Rated Current: 8A/10A/13A/16A Case Color: Black
Charging Standard: Type 2/ IEC 62196-2 Function: Remote Control, APP Control, Colorful Lights, Voice Interaction, Screen
Connection: L+N+PE IP Protection Class: IP 66
High Light:

50kWh ev car portable charger

,

10Amp ev car portable charger

,

portable level 2 ev charger ISO9001

Product Description

8A 10A 13A 16A 32A Current Adjustable Home EV Portable Charger



Control box

Leakage protection
Over voltage/under voltage protection
Over load protection
Lighting protectionAmperew options
1. Fix ampere 10A
2. Fix ampere 16A
3. Fix ampere 32A
4. Adjustable 6-8-10-13-16A
5. Adjustable 10-16-20-24-32A
6. Adjustable 10-16A
7. Adjustable 6-8-10-13A
8. Adjustable 6-8-10-15A
9. Adjustable 6-8-10A



Plug type
IEC 62196-2 Type 2
Power supply plug
/
Control box
LCD digital display
Adjustable amperes
10A-32A
Operational temperature
-30 °C to +50 °C
Vandalism-proof
No
UV resistant
Yes
Certificate
/
Housing
Plastic
Over-current protection
Integrated
Overvoltage protection
Integrated
Under-voltage protection
Integrated
Leakage current protection
Integrated
Lightning protection
Integrated
Cable length
5 m or customized
Weight
2.3 kg
Brutto Weight
2.5 kg
Warranty
24 months



EV Charging Power and Time
Charger
AC/DC
Rated Power
30kWh Battery
60kWh Battery
90kWh Battery
Schuko 16A
AC
3.6kW
8hrs
16hrs
24hrs
Schuko 32A
AC
7.2kWh
4hrs
8hrs
12hrs
1-phase 16A
AC
3.6kW
8hrs
16hrs
24hrs
1-phase 32A
AC
7.2kWh
4hrs
8hrs
12hrs
3-phase 16A
AC
11kW
3hrs
6hrs
9hrs
3-phase 32A
AC
22kW
1.5hrs
3hrs
4.5hrs
DC Fast charge
DC
50kWh
40mins
80mins
120mins
Tesla Supercharger
DC
120kW
15mins
30mins
45mins







Inlet plug

Mechanical Properties
Mechanical life:No-load plug in /out >10000 times
Coupled insertion force: 45NImpact of external force: Can afford 1M height drop and 2T vehicle run over pressure

Environmental Performance:
Working Temperature: -30°C ~+ 50°C

Plug Material
ABS+thermoplastic, flame retardant grade UL94 V-0
Terminal: copper alloy, silver plating

Shell color: black/white optional
