Wallbox 220V 7KW Smart EV Charger Smart Home Electric Car Charging Station IEC 62196
Contact Person : sales
Phone Number : 13961612056
WhatsApp : +8613961612056
Detail Information |
|||
Application: | Electric Vehicle Charging Station | Start Method: | "Plug And Play" Or RFID Card |
---|---|---|---|
Connection: | Type 1 And Type 2 | Voltage: | 220-240V |
Color: | White, Black Or Other | Plug Standard: | IEC 62196-2/SAE J1772 |
Fire-protection Rating: | UL94 V0 | Plug: | Schuko Or Other |
High Light: | 240V Smart EV Charger,IEC62196 Smart EV Charger,wifi enabled ev charger 3.5kw |
Product Description

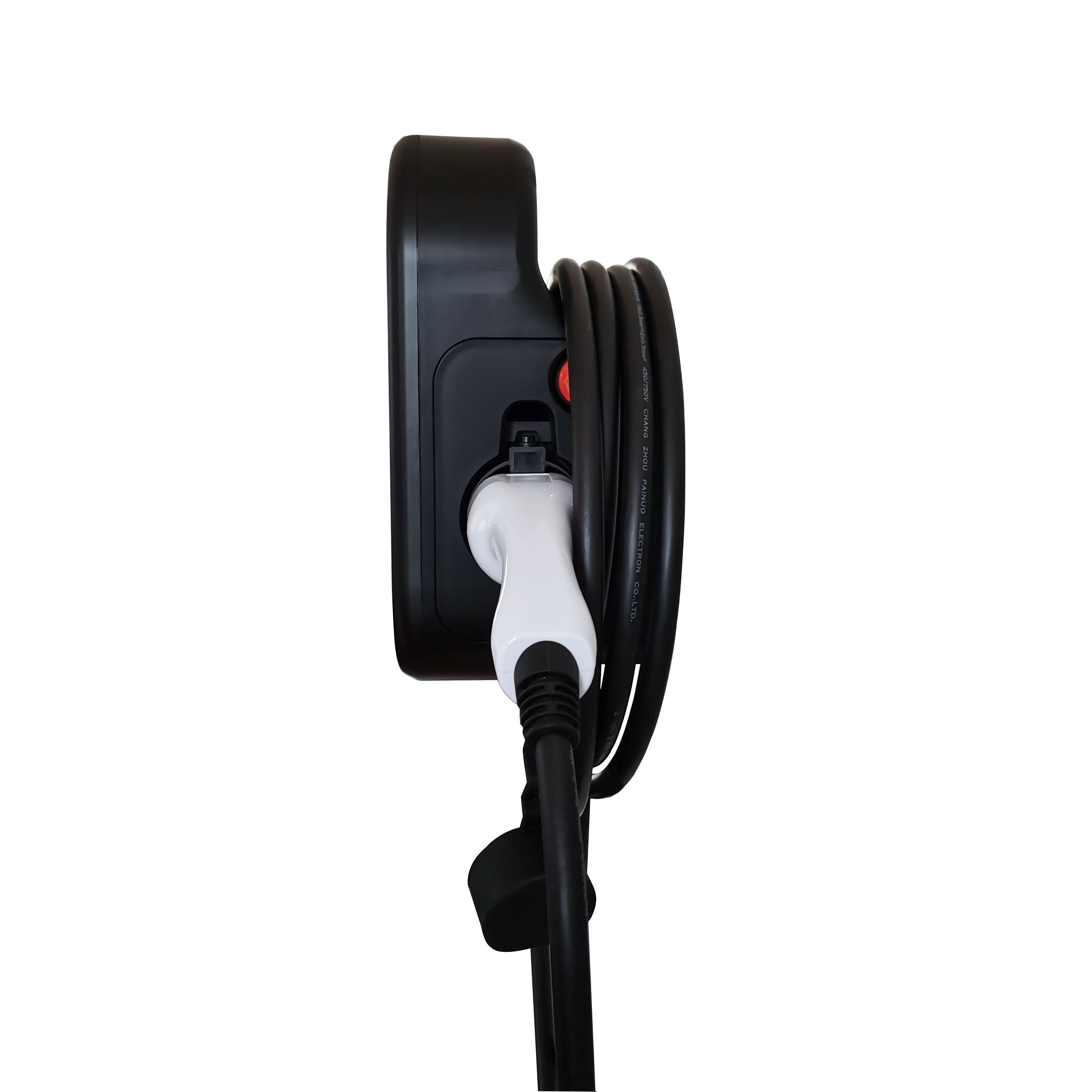

Black Smart Electric Car Charger With WiFi EVSE Electric Vehicle Charger UL94 V0
1. APP Control
* Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market
2. Load balance management:
* Restricting the total charging load protects the local grid
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.
3. Specification
* Material: The front panel is tempered glass, which has the advantage of Anti- scratch and high-quality visual effects. The back cover is high quality plate metal with Special Integral molding, it is safe for indoor and outdoor applications.
* OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;
* 3 inch highlight LCD display: Shows live charging current, voltage, power consumption, time
* Versatile Installation wall mount or pedestal applications
4. Protection:
* RCD Type B inside,it is more safe than Type A.
* High quality production and design standards for safe and reliable use with multiple fault protection: Overvoltage Protection,Undervoltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection, Over-temp Protection, Surge Protection and etc.
Power Specification
|
|||
|
US Standard
|
EU Standard
|
|
Charging Connector Type
|
SAE J1772 (Type 1)
|
IEC 62196-2 (Type 2)
|
|
AC Power Input Rating
|
AC Level 2, 240V
|
230V±15%
|
|
Frequency Rating
|
50/60 Hz
|
||
AC Power Output Rating
|
3.5kw/16A
|
||
7kw/32A
|
|||
10kw/40A (US Standard optional)
|
|||
User Interface & Control
|
|||
Emergency Stop Button
|
Yes
|
Plug-and-Charging
|
Yes
|
RFID Card Charging
|
Yes
|
App Charging
|
Yes
|
Ethernet Interface
|
Yes
|
Wifi Function
|
Yes
|
OCPP Protocol
|
OCPP 1.6
|
|
|
Protection
|
|||
Over Voltage Protection
|
Yes
|
Under Voltage Protection
|
Yes
|
Over Load Protection
|
Yes
|
Short Circuit Protection
|
Yes
|
Earth Leakage Protection
|
Yes
|
Ground Protection
|
Yes
|
Over-temp Protection
|
Yes
|
Surge Protection
|
Yes
|
RCD
|
Type A
|
|
|
Environmental
|
|||
Storage Temperature
|
-40 ~ 75℃
|
Operating Temperature
|
-30 ~ 55℃
|
Operating Humidity
|
Up tp 95%, non-condensing
|
Altitude
|
≤2000m
|
Cooling Method
|
Natural Cooling
|
|
|
M3P Wallbox Mechanical
|
|||
IP Code
|
IP65
|
Dimension(H×W×D,mm)
|
310×220×95
|
Weight
|
7kg
|
Charging Cable Length
|
5m or Customize
|
Enclosure Material
|
PC
|
|
|
M3T Mounting Pole(Optional)
|
|||
Dimension(H×W×D,mm)
|
1400×200×100
|
Weight
|
<8kg
|
Enclosure Material
|
Metal
|
|
|
