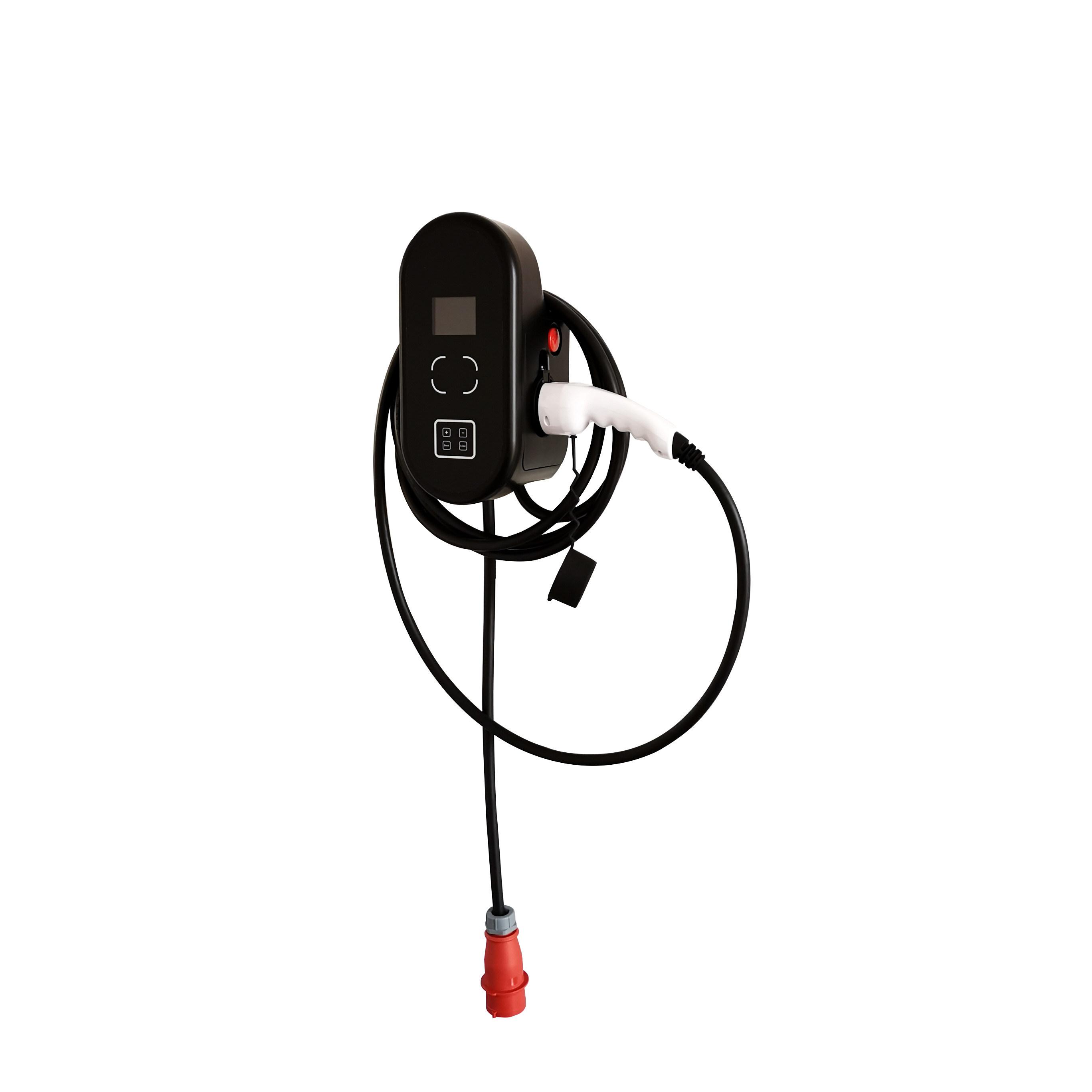

11KW Smart EV Charger Electric Car Charging Stations 32 Amp 16A 3 Phase

Minimum Order Quantity : 10 sets Packaging Details : carton
Delivery Time : 5~10 days
Place of Origin: China Brand Name: TOPSUN
Certification: TUV,CE,RoHS Model Number: CBEN-ev16-P

Detail Information

Working Temperaturep: -30~+50℃ Rated Current: 32 Amp
Feature: Over-voltage Protection Color: White, Black Or Other
Plug Standard: IEC 62196-2/SAE J1772 Connector: Type 2 Socket/outlet
Application: Electric Vehicle FAST Charging Weight: 7kg
High Light:

11KW Smart EV Charger

,

Smart EV Charger 32 Amp

,

electric car charging stations 16A 3 Phase

Product Description

11KW Smart Home Car Charger 16A 3Phase Electric Car Charging EV Station

Do not connect the circut by yourself without professional guidance
Do not use the charger when the inside of the plug is wet
Do not install the charger by yourself before reading the instructions
Do not use the charger for other purposes except for electric car charging
SPECIAL ATTENTION:Do not try to disassemble the device by yourself under any circumstances ,this may cause damage to the internal precison parts ,and you will not be able to enjoy after-sales service



Product DefinitionElectric Parameter
StadnardIEC 62196-2:2016/Rated Current16A
SAEJ1772
Charging ModeMode 3Rated Voltage250V
Connector MannerBPower Pin Numbert3 ( L, N, PE )
Current TypeACSignal Pin Numbert2 ( PP, CP )
Housing ColorwhiteSignal Pin Current2A
Cable ColorBlackInsulation Resistance≥5MΩ
Ambient ConditionMechanical Performance
AmbientTemperature-30℃--50℃Insertion & Pullout Times>10000 times
( working )
AmbientTemperature-40℃--80℃Insertion & Pullout Force45N~100N
( storage )
Ingress ProtectionIP55Withstanding Impact ForceAffordable 1 meter height fell or 2 ton car run over presure


Customer Service
We can provide customers with professional product advice and purchase options.
All emails will be responded within 24 hours during working days.
We have online customer service in English, French, German and Spanish. You can communicate with ease, or contact us through email anytime.
All customers will get one-on-one service.


Delivery Time
We have warehouses throughout Europe and North America.
Samples or test orders can be delivered within 2-5 working days.
Orders in standard products above 100pcs could be delivered within 7-15 working days.
Orders that require customization could be produced within 20-30 working days.


Customized Service
We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.
OEM includes color, length, logo, packaging, etc.
ODM includes product appearance design, function setting, new product development, etc.
MOQ is depend on different customized requests.


After Sale Service
The warranty of all our products is one year. The specific after-sale plan will be free for replacement or charging a certain
maintenance cost according to the specific situations.
However, according to the feedbacks from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory. And all of our products are certificated by top testing
institutions such as CE from Europe and CSA from Canada. Providing safe and guaranteed products is always one of our greatest strengths.
