Type 1 Or Type 2 Smart Charging For Electric Vehicles EV Wallbox Charger For Electric Car

Minimum Order Quantity : 10 sets Packaging Details : carton
Delivery Time : 5~10 days
Place of Origin: China Brand Name: TOPSUN
Certification: TUV,CE,RoHS Model Number: CBEN-ev16-P

Detail Information

Material: PC/Silicon Rubber/Themo Plastic Pin: Copper With Silver Plated
Working Temperaturep: -30~+50℃ Rated Current: 8-10-13-16A Switchable
Working Voltage: 110V~450V IP: 55
Color: White, Black Or Other Plug Standard: IEC 62196-2/SAE J1772
Time-delay: 10 Hours Max. Fire-protection Rating: UL94 V0
Plug: Schuko Or Other
High Light:

7.2kWh electric vehicle charging cord

,

Schuko 32A electric vehicle charging cord

,

16Amp smart home ev charger

Product Description

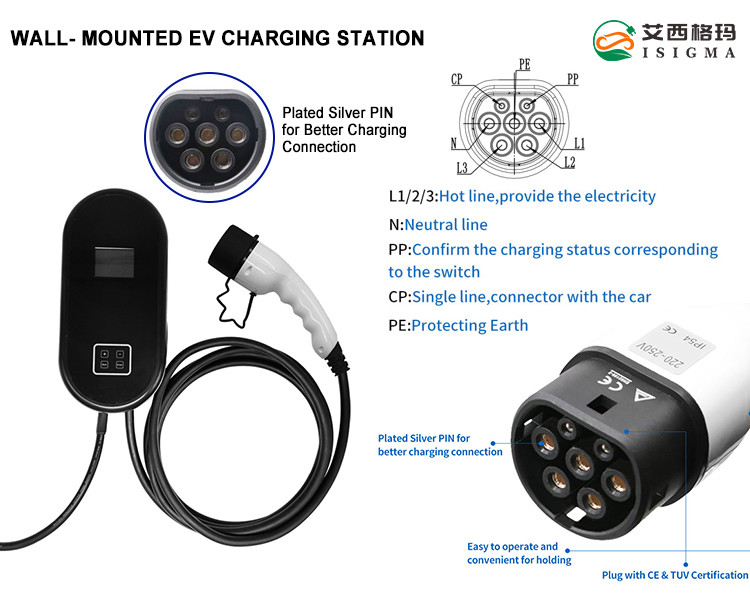

Type 1 Or Type 2 Smart Charging For Electric Vehicles EV Wallbox Charger For Electric Car



Intelligent Control

Wireless communication OCPP communication

protocol with the backend

Smart charge or scheduled charge by App



Innovativeness

Minimal size, streamline

design Home use with intelligent App control



Flexible Option

Type 1 or Type 2 charging cable

App operation or plug and play

Wall-mounted or floor-stand installation



Secure and Safe

6mA DC residual current protection

Anti-welding protection











EV Charging Power and Time











Charger

AC/DC

Rated Power

30kWh Battery

60kWh Battery

90kWh Battery

Schuko 16A

AC

3.6kW

8hrs

16hrs

24hrs

Schuko 32A

AC

7.2kWh

4hrs

8hrs

12hrs

1-phase 16A

AC

3.6kW

8hrs

16hrs

24hrs

1-phase 32A

AC

7.2kWh

4hrs

8hrs

12hrs

3-phase 16A

AC

11kW

3hrs

6hrs

9hrs

3-phase 32A

AC

22kW

1.5hrs

3hrs

4.5hrs

DC Fast charge

DC

50kWh

40mins

80mins

120mins

Tesla Supercharger

DC

120kW

15mins

30mins

45mins



Attention to know



EV chargers are splash, water and dust resistant and have been tested under strictly controlled laboratory

conditions to achieve an IP65 rating in accordance with IEC standard 62196. However, the resistance to splashes, water and dust is not permanent and may weaken over time under normal use. Damage caused by liquids is not covered by the warranty.



To prevent damage to your charger from liquids, please avoid the following situations :

1. Exposing the charger to pressurised water or high velocity water flow.

2. Intentionally submerging the charger in water.

3.Operating the charger beyond the recommended temperature range or in extremely humid environments

4. Dropping the charger or subjecting it to other shocks.

5. Disassemble the charger, including removing the screws.



If the charger comes into contact with liquid, turn off all power until it is completely dry.

Placing the unit in front of a fan so that cold air is blowing directly on the charging connector may help to speed up the drying process.



Do not use an external heat source to dry the charger, or insert foreign objects such as cotton swabs or paper towels into the charging port.



Type 1 Or Type 2 Smart Charging For Electric Vehicles EV Wallbox Charger For Electric Car 0
