Schuko 110V Smart EV Charger 2 Chargers 16A 3 Phase Electric Car Charging Cable Types

Minimum Order Quantity :	10 sets	Packaging Details :	carton
Delivery Time :	5~10 days

Place of Origin:	China	Brand Name:	TOPSUN
Certification:	TUV,CE,RoHS	Model Number:	CBEN-ev16-P

Detail Information
Rated Current:	8-10-13-16A Switchable	Working Voltage:	110V~450V
IP:	55	Color:	White, Black Or Other
Plug Standard:	IEC 62196-2/SAE J1772	Plug:	Schuko Or Other
Control:	Auto/Button/Key/Card	Connection:	Type 1/type 2
High Light:	Schuko Smart EV Charger , 110V Smart EV Charger , SAE J1772 electric car charging cable types

Product Description

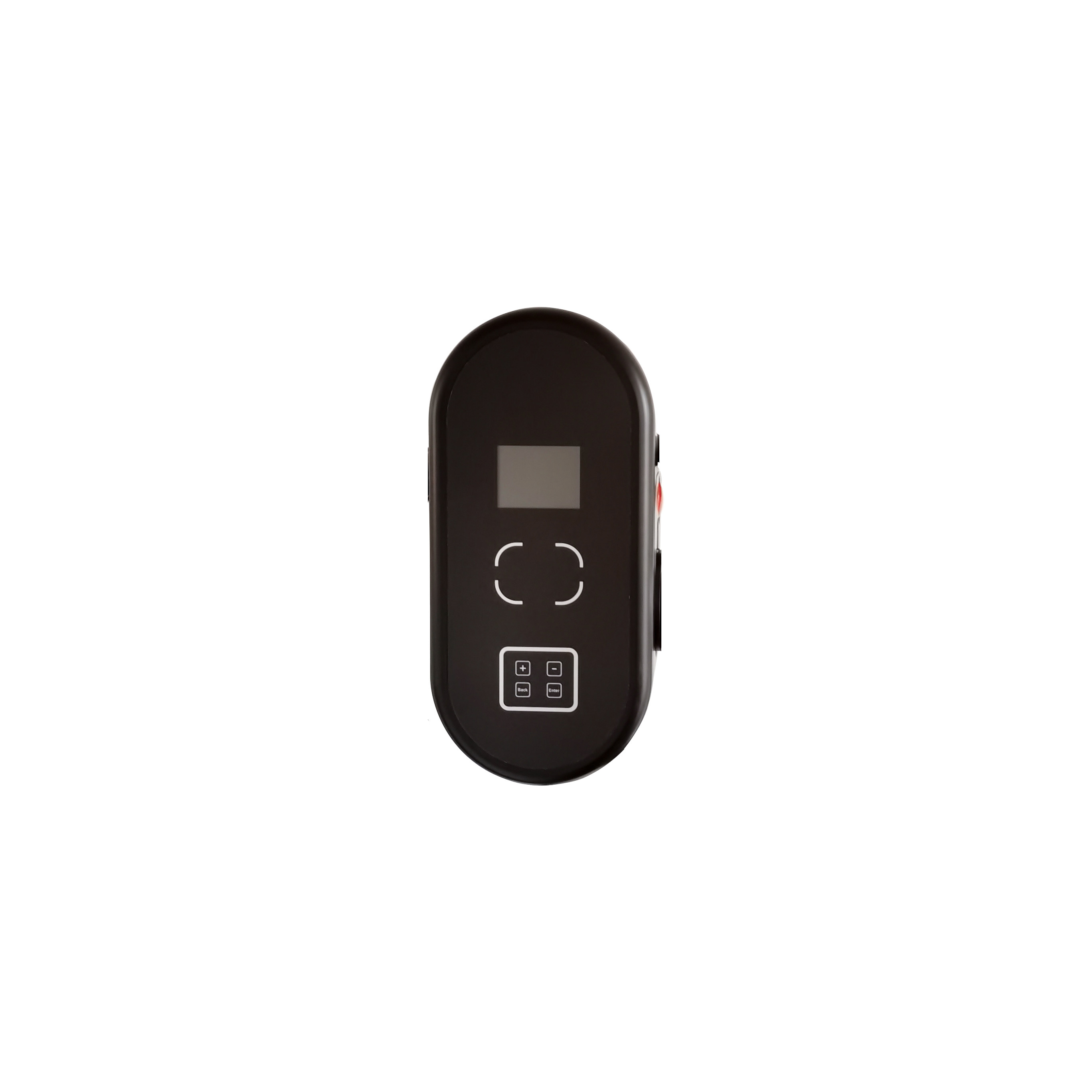

Schuko Plug Chargepoint Residential & Commercial Smart Level 2 Chargers 16A 3 Phase

IEC 62196 Type2 to Schuko 5m cable for Mode 2 charging with Control Box. A portable and easy charging solution for when you are traveling or you are away from a traditional charging station. This cable allows you to charge your EV/PHEV that has Type 2 port from main household/public sockets. Although is not recommended for everyday use, it is advised to have this charger as a spare for emergency situations.

——Input & Output——
Input/Output Voltage	230Vac±10%	Output current	16A 3 Phase
Input frequency	55±10%	Charging gun type	Type2:IEC 62196-2 /Type1:SAE J1772 /GB/T20234.2
Rated power	7 KW	Cable length	5 meters
Power Factor	>0.99	Overall efficiency	0.96
——Protection——
Overvoltage protection	yes	Undervoltage protection	yes
Overload protection	yes	Short circuit protection	yes
Earth leakage protection	yes	Over temperature protection	yes
Lightning protection	yes	Overcurrent protection	yes
——Function and Accessory——
Network connection	Ethernet	Visual Indication	LED Indicator light
Communication Protocol	OCPP 1.6	Push Button	Emergency Stop
LCD Display	without	Language	English
RCD	Type A	RFID	yes
——Working environment——
Protection degree	IP55	Maximum altitude	Up to 2000m
Environment temperature	-20℃~+75℃	Cooling	Natural air cooling
Storage temperature	-40℃~+70℃	Operating humidity	≤95% non-comdensing
Applicable Scene	Indoor/Outdoor	Acoustic noise	<55dB
Standby power consumpiton	5W
——Package——
Dimension (W/H/D)	400283115	Weight	6kg
Certificate	CE, TUV, ISO,IP55, IK10

Control box

Leakage protection
Over voltage/under voltage protection
Over load protection
Lighting protectionAmperew options
1. Fix ampere 10A
2. Fix ampere 16A
3. Fix ampere 32A
4. Adjustable 6-8-10-13-16A
5. Adjustable 10-16-20-24-32A
6. Adjustable 10-16A
7. Adjustable 6-8-10-13A
8. Adjustable 6-8-10-15A
9. Adjustable 6-8-10A

Inlet plug

Mechanical Properties
Mechanical life:No-load plug in /out >10000 times
Coupled insertion force: 45NImpact of external force: Can afford 1M height drop and 2T vehicle run over pressure

Environmental Performance:
Working Temperature: -30°C ~+ 50°C

Plug Material
ABS+thermoplastic, flame retardant grade UL94 V-0
Terminal: copper alloy, silver plating

Shell color: black/white optional
