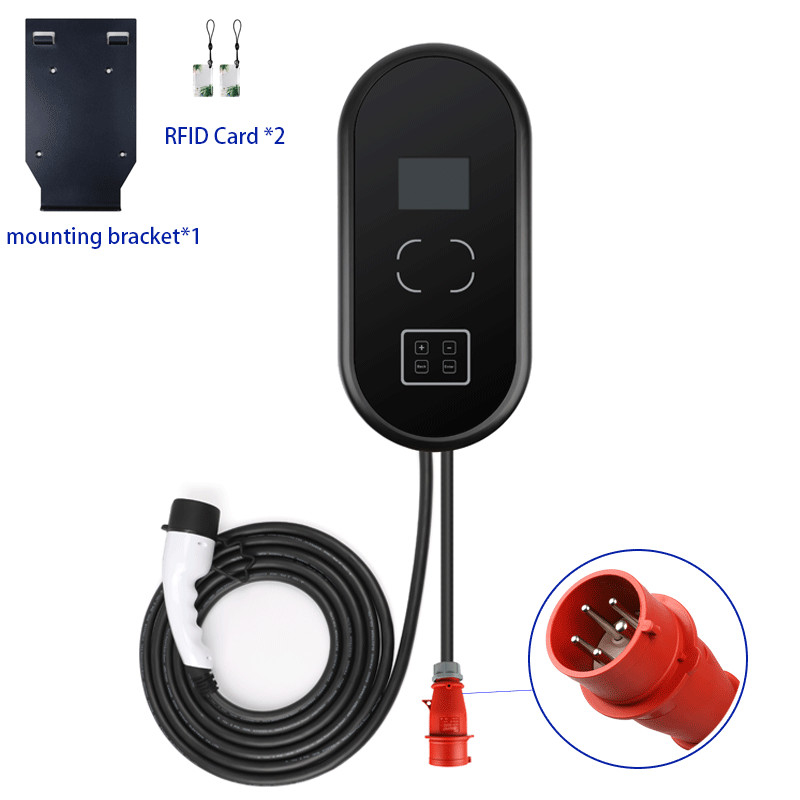

Wall Mounted EV Charging Station 22KW Smart EV Charger 32A 3 Phase WIFI Type2

Minimum Order Quantity : 10 sets Packaging Details : carton
Delivery Time : 5~10 days
Place of Origin: China Brand Name: TOPSUN
Certification: TUV,CE,RoHS Model Number: CBEN-ev16-P

Detail Information

Material: PC/Silicon Rubber/Themo Plastic Pin: Copper With Silver Plated
Working Temperaturep: -30~+50℃ Rated Current: 8-10-13-16A Switchable
Working Voltage: 110V~450V IP: 55
Color: White, Black Or Other Plug Standard: IEC 62196-2/SAE J1772
Time-delay: 10 Hours Max. Fire-protection Rating: UL94 V0
Plug: Schuko Or Other
High Light:

22KW Wall Mounted smart ev charging station

,

smart ev charging station 32amp

,

110V electric car type 2 cable

Product Description

Wall Mounted EV Charging Station 22KW Smart EV Charger 32A 3 Phase WIFI Type2



CAUTION:

1. Don't submerge the ev charging box in water;
2. Don't step on, fold or knot the cable;
3. Don't drop the EV charging box or place a heavy object on it;
4. Don't place the charging cable near high temperature object when charging;
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C;
6. Power-supply side input cable should be at least 3*6mm, with a standard 32A socket;
It is suggested that the power distribution is done by the professionals;
7. Don't put fingers into the charging connector when the power plug is still connecting to the
power;
8. Don't use this ev charging box when the cable is damaged;
9. The ev charging box is only for ev charging using;
10. Don't use this device with an extension cord or adaptor.











Keyword

universal electric vehicle charger,ev smart charger,ev charger manufacturer

Installation Method

Portable

Rated Power

3.5KW

Charging mode

Plug &Charge

Size

210*345*120mm

(H * W * D)

Weight

2.2kg(Without column)

Input

Input voltage

AC220V 50Hz(L1+L2+L3+N+PE)

Input Current

Each phase 0~32A

Input interface

reserved CAN terminal

Leakage Protection

Type B RCD 30mA + 6mA

Output

Output voltage

AC 220V±20%(ABC+N+PE)

Output current

0-16A

Connection method

Number of plug

1

Charging connection method

1,Connection method C (plug version)

2,Connection method B (socket version)

Plug wire length

5m(customizable)

Plug standard

Type-2



Wall Mounted EV Charging Station 22KW Smart EV Charger 32A 3 Phase WIFI Type2 0
