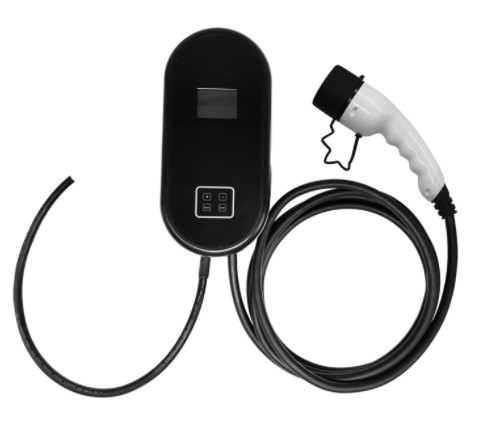

7.2kw 220VAC EV Charger Cable 32 Amp Ev Charging With Level 2 Connector

Minimum Order Quantity :	10 sets	Packaging Details :	Carton
Delivery Time :	5~10 days

Brand Name:	TOPSUN	Certification:	TUV, CE, UL
Model Number:	T-EN-EV32

Detail Information
Product Name:	Single Phase EV Charging Cable	Rated Voltage:	220V~250V
Rated Current:	16A 1 Phase	Application:	Residential / General-Purpose
Cable Length:	5m Or Customized	Impact Resistance:	Be Able To Afford 1m Drop And 2tons Vehicle Run Over Pressure
Warrenty:	3 Years	Mechanical Life:	No-load Plug>10000times
High Light:	220VAC ip54 EV Charger Cable , ip54 EV Charger Cable Level 2 Connector , 7.2kw 32 amp ev charging cable

Product Description

Single Phase Level 2 Connector Chargers Gun Electric Vehicle Type 2 To Type 2 Ev Charging Cable 32a

1. 3.6kw, 7.2 kw with 5m black cable or customized, meet SAE J1772 IEC 62196-2 standard
2. Higher safety level, support outdoor using
3. Authoritatively certificated from CE, CCC, ROHS and so on
4. 1-year warranty for after-sale service
5. Customized service on LOGO, length, color and inner box

Customized Serivce
Products accept OEM, ODM and related customization. Acceptable custom parts include but are not limited to.
· The color of the plug, LOGO
· Cable length, color, LOGO
· The pattern on the packing carton, LOGO

Cautions
· The charging cable is only for EV charging using
· Don't submerge the charging cable in water
· Don't put finger into the charging plug
· Don't use the device when the cable is damaged
· Don't dis-assemble or refit the product

Electrical Performance	Rated current	16A
	Rated voltage	250V
	Insulation resistance	>1000MΩ(DC500V)
	Pins temperature rise	<50K
	Withstand voltage	2000V
	Contact impedance	0.5mΩMax
Mechanical Properties	Mechanical life	no-load plug>10000times
	Impact resistance	be able to afford 1m drop and 2tons vehicle run over pressure
	Insertion force	45N
Raw Material	Shell material	thermoplastics, flame retardant grade UL94-0
Raw Material	Pins	Copper alloy, silver plated+top thermoplastic
Environmental Performance	Temperature	-30℃~+50℃

Rated Current	Cable Specifification	Shell and cable
16A Single Phase	3x2.5mm²+2x0.5mm²	Shell color: black white optional Cable color: black orange optional
32A Single Phase	3x6mm²+2x0.5mm²
