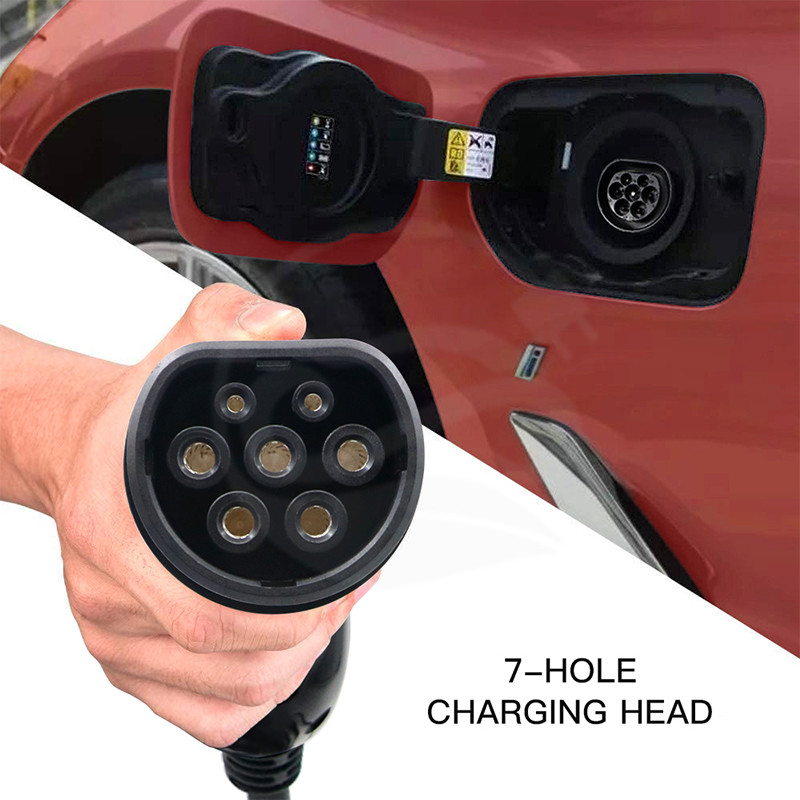

5 Meter 16A EV Charger Cable 220VAC 22kw Type 2 Charging Mode 3

Minimum Order Quantity :	10 sets	Packaging Details :	Carton
Delivery Time :	5~10 days

Brand Name:	TOPSUN	Certification:	TUV, CE, UL
Model Number:	T-EN-EV32

Detail Information
Name:	Type 1 Electric Car Charger Cable	Rated Voltage:	220V~250V
Rated Current:	16A 1 Phase	IP:	IP54
Model Number:	SAE J1772	Conductor:	Bare Copper
Working Life::	More Than 10000 Times	Warrenty:	3 Years
High Light:	5M 16A EV Charger Cable , IP54 EV Charger Cable 220VAC , 22kw type 2 charging cable

Product Description

5 Meters Long Cable 16A Type 1 SAE J1772 EV Electric Car Charger EV Charging Cable

Applications
Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...

Specification

The Product Definition		Mechanical Behavior
Standard	IEC 62196-2	Insertion & Pullout Times	> 10,000 times
Charging Mode	Mode 3	Insertion & Pullout Times	> 150 N
Current Type	AC	Withstanding Impact Force	2t car run over force
Ambient Condition		Electrical Characteristics
Ambient Temperature(working)	-40℃~90℃	Rated Current	16A/32A
Ambient Temperature(storage)	-40℃~80℃	Rated Voltage	250Vac/480Vac
Ingress Protection	IP55(mated)	Insulation Resistance	<5,000MOhm
Cable Configuration
16A Single Phase		32.5mm2+10.75mm2
16A Three Phase		52.5mm2+10.75mm2
32A Single Phase		36mm2+10.75mm2
32A Three Phase		56mm2+10.75mm2

Electrical Performance

1. Rated current:16A/32A/63A
2. Operating voltage: 250V AC
3. Insulation resisitance:>1000M(DC500V)
4. Therminal temperature rise:<50K
5. Withstand voltage:2000V
6. Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements
7. Contact impedance: 0.5m Max

Mechanical properties

1. Mechanical life: no-load plug in/pull out >10000 times
2. Insertion and Extration Force: 45N<F<80N

5 Meter 16A EV Charger Cable 220VAC 22kw Type 2 Charging Mode 3 0
