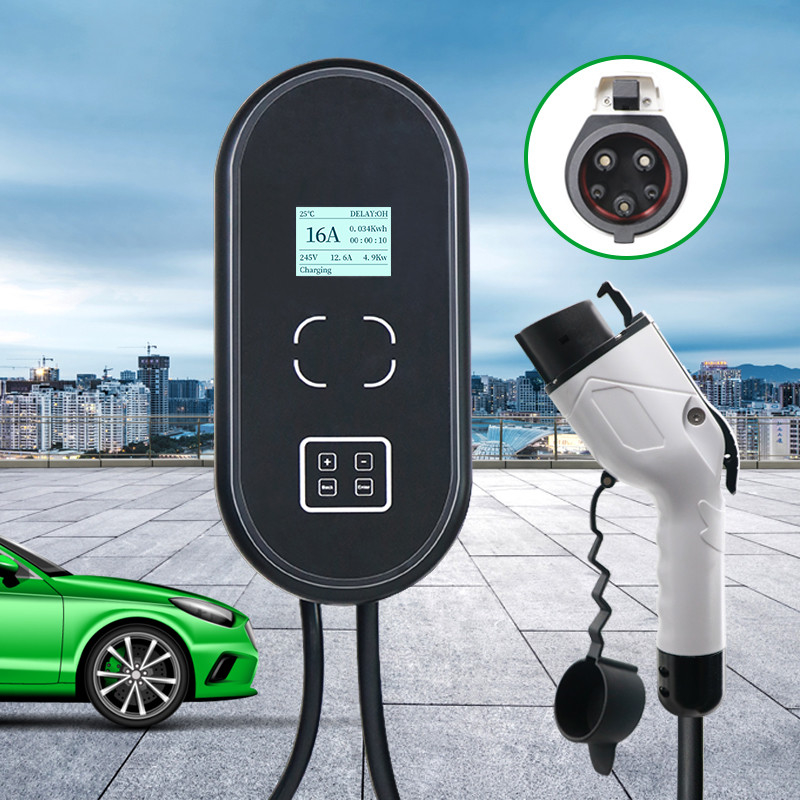

IP54 Public EV Charger Cable IEC62196 15m Type 2 Ev Cable TUV

Product Description

IP54 Type 2 Public Charging Cable IEC 62196 Mennekes Mode 3 Charging Cable

The main performance indicators insertion force and separation

Mechanical properties
Box size: Length*width*high=175*80*55
Machine life: ≥10000times
Insertion force and separation: ≤ 100N;

The work environment
Temperature range: 25 ℃ ~ + 40 ℃ (ambient temperature)
Humidity: 95% (40 ℃)
Pollution level: 2
Protection grade: charging gun inserted state: IP55
Control box: IP55

Electric vehicle charging control box to meet the requirements of the SAEJ1172 also has the following functions:
With input overvoltage protection under-voltage protection over-current protection with automatic stop function and
over temperature protection function.
Over voltage protection: 230 * 1.2 AC
Under voltage protection: 230 * 0.8 AC
Over current protection: 16A
Automatic power off: when the charging current lasting 0.5 hours less than 0.3 A, automatically disconnect output, when the charging time lasted 36 hours, disconnect the output automatically
Over temperature protection: built-in temperature sensor, the internal temperature reaches 80 degrees, suspension of work, the temperature dropped to 70 degrees to return to work.
Leakage protection: After the leakage current is larger than 100 ma, cut off the output within 100 mm, and tip leakage
The above protection error in 3%.
