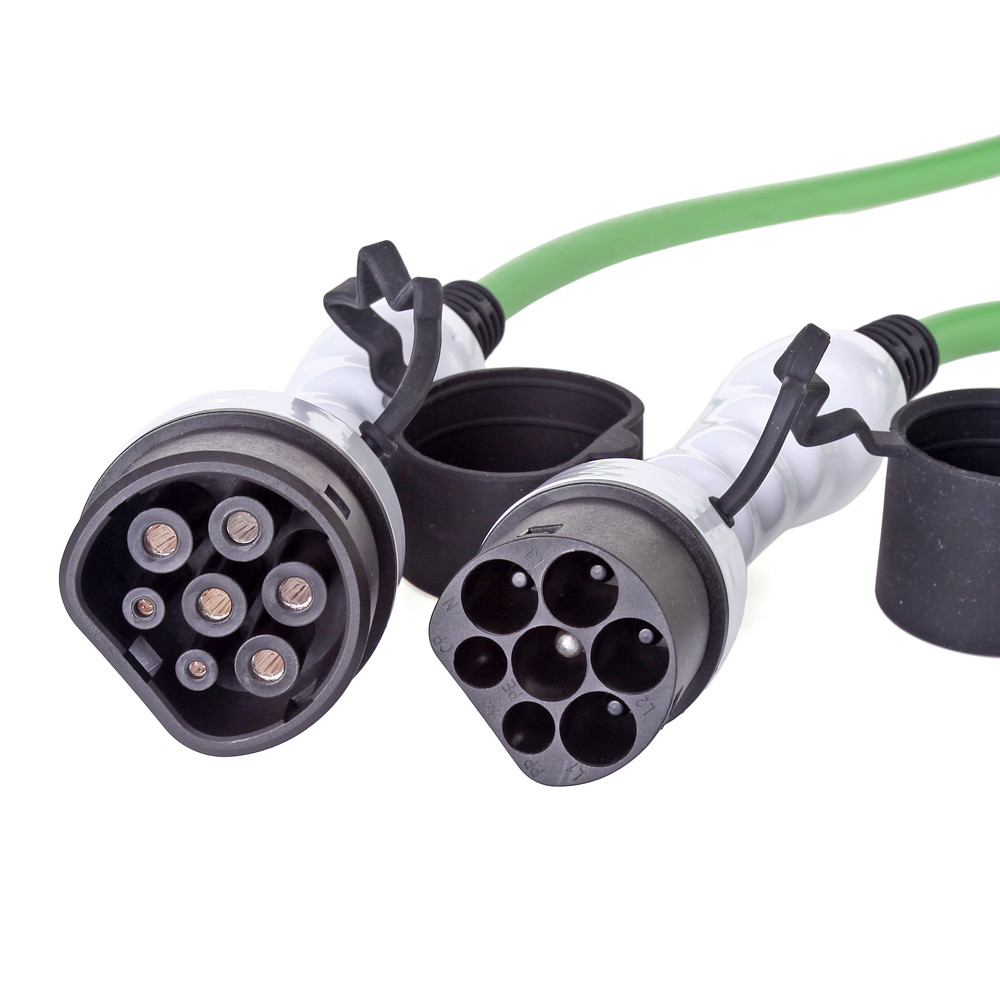

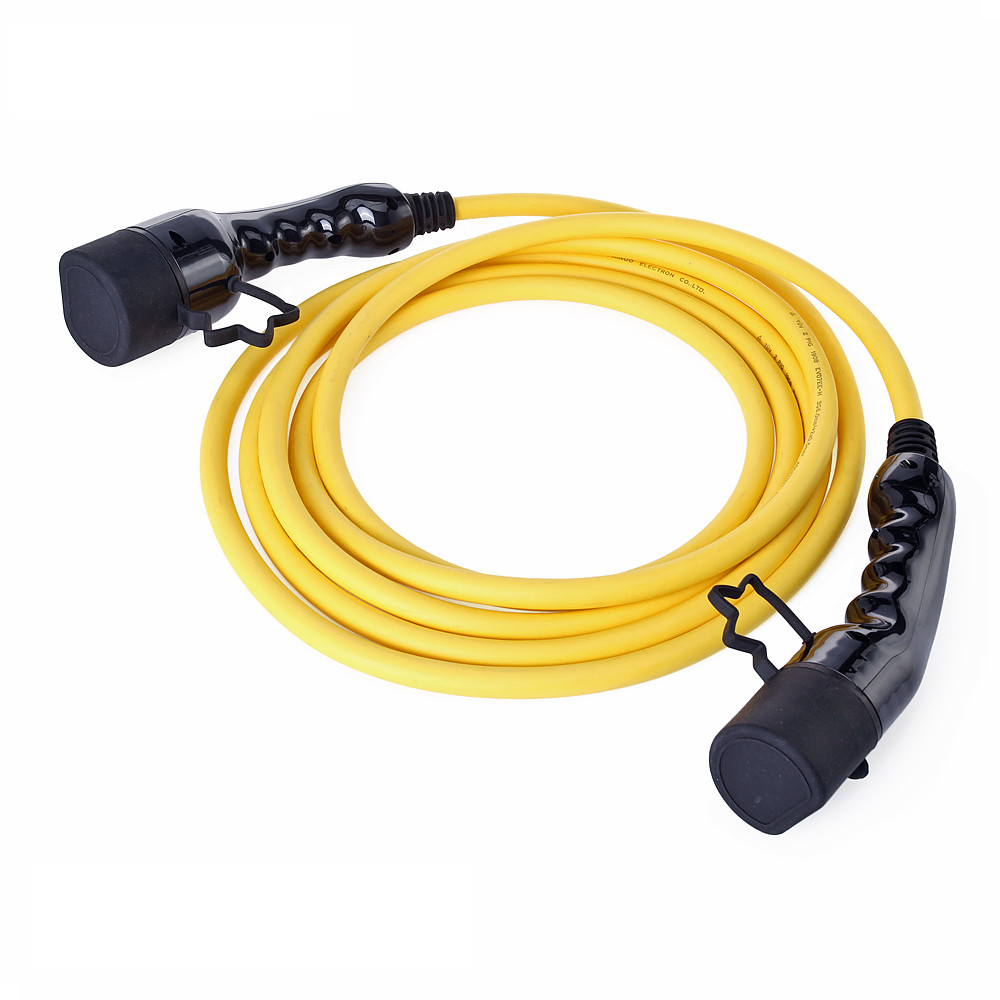

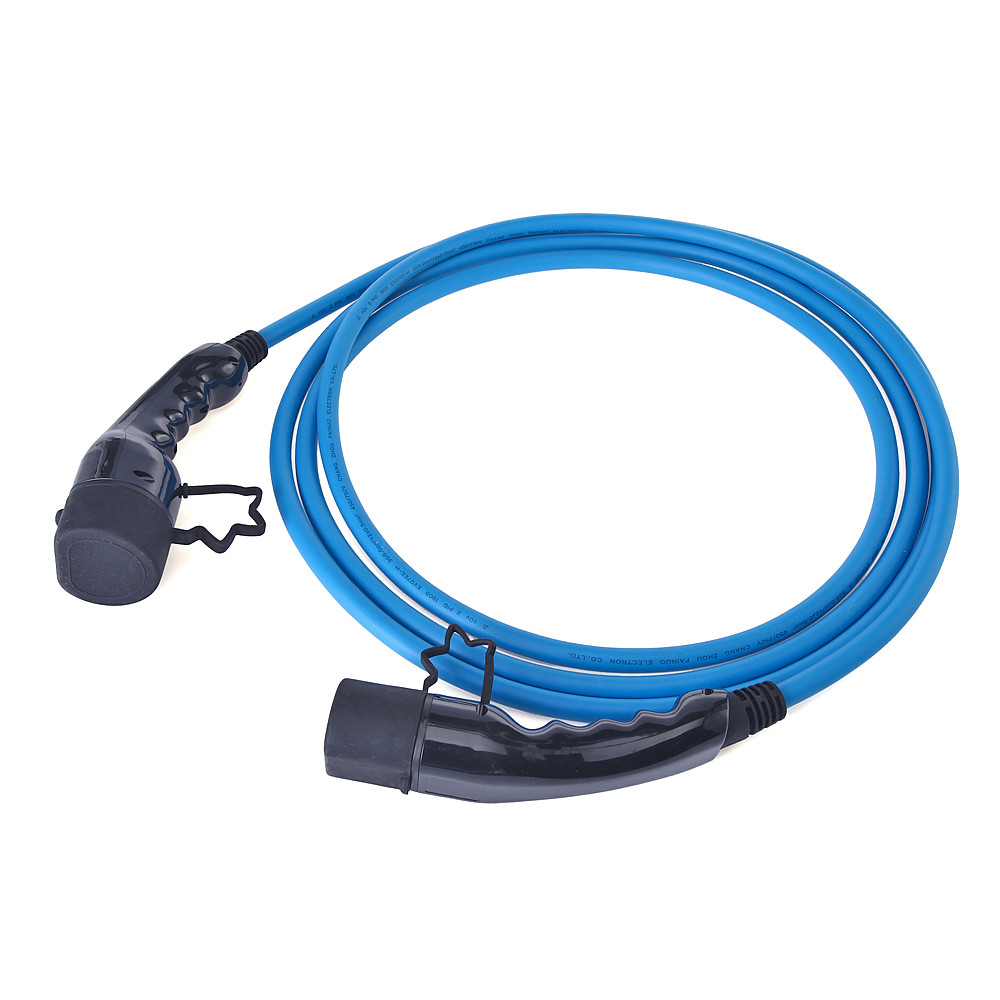

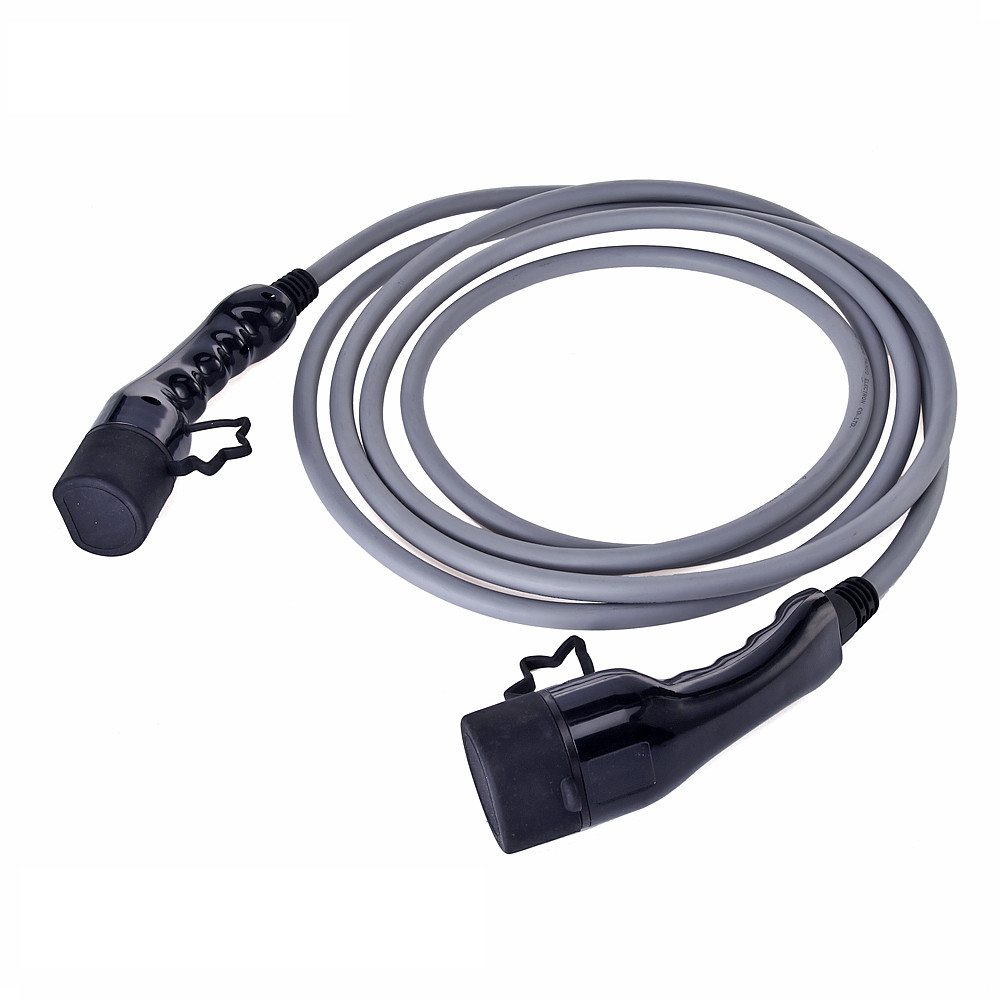

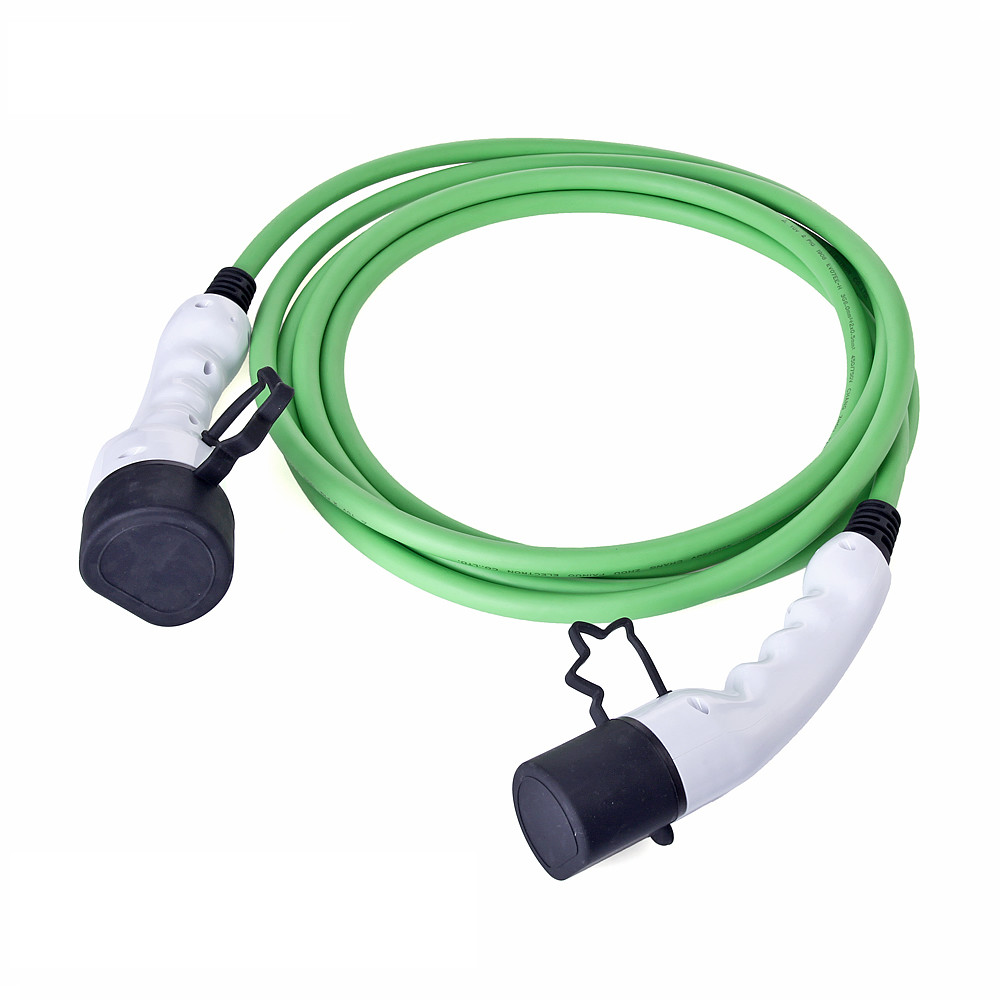

32A 1 Phase IP54 EV Charger Cable Type 2 To Type 2 Ev 3 Pin Charging 3 X 6mm2

Product Description

32A 1 Phase IP54 EV Charger Cable Type 2 to Type 2 ev 3 pin charging

Parameters

Rated current: 32A

Working voltage: 220V AC

Insulation resistance: > 1000M Ω

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact impedance: 0.5m Ω Max

Vibration resistance: Meet JDQ 53.3 requirements

Working temperature: -30°C ~+ 50°C

UL, TUV approved

Charging Cable Spec

TUV or UL 3*6mm2+2*0.5mm2

Cord length: 5m or customized

Orange or Black

Materials

Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)

Contact Pin: Copper alloy, silver or nickel plating

Sealing gasket: rubber or silicon rubber

Product Parameters

Functional definition:

Why Choose Us:

1, we are manufacturer. And we had always adhered to the customer-oriented, excelsior as criterion, and win the market with quality to meet demand.

2, OEM Service Offered, Design Service Offered. We have one team with around 20 years’ experience and set up national standards for automotive connectors in China.

3, Fast delivery and 100% checking before shipment. Now we're exporting to worldwide with competitive prices , good quality and excellent services.
