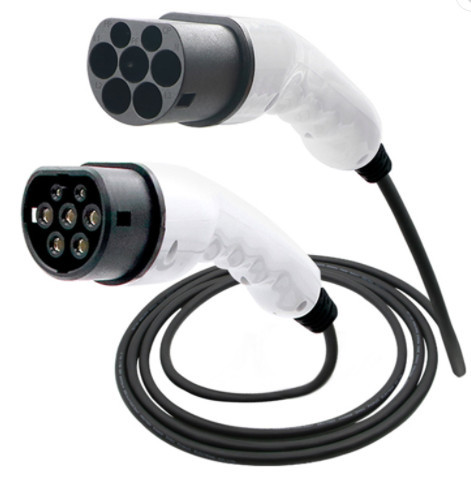

250V Electric Vehicle Ev Charging Cable Type 2 Chargepoint TUV SAEJ1772 IP67

250V Electric Car Charging Cable Type 2 Chargepoint Replacement Cable TUV

Audi A3-etron
BMW 330e phev
BMW i3
BMW i8
BMW x5
Hyundai Ioniq
Mahindra e20
Mercedes B class electric
Mercedes s550 phev
Mercedes c350 phev
Porsche cayenne s e-hybrid
Porsche panamera s e-hybrid
Renault Zoe
Renault Zoe Z.E. 40
Smart fortwo electric
Smart forfour electric
Tesla model S
Tesla model X
Volkswagen e-up
Volkswagen e-golf
Volkswagen golf GTE
Volvo XC 90
Volvo V60


Electric vehicle charging control box to meet the requirements of the SAEJ1172 also has the following functions:
With input overvoltage protection under-voltage protection over-current protection with automatic stop function and
over temperature protection function.
Over voltage protection: 230 * 1.2 AC
Under voltage protection: 230 * 0.8 AC
Over current protection: 16A
Automatic power off: when the charging current lasting 0.5 hours less than 0.3 A, automatically disconnect output,
when the charging time lasted 36 hours, disconnect the output automatically
Over temperature protection: built-in temperature sensor, the internal temperature reaches 80 degrees, suspension of
work, the temperature dropped to 70 degrees to return to work.
Leakage protection: After the leakage current is larger than 100 ma, cut off the output within 100 mm, and tip leakage
The above protection error in 3%.

Electric vehicle charging control box of working state

Brief manual
1. Insert the power plug into outlet, make sure the socket with reated current below 16A.
2. Press the Amp Selection button for test the current.Choose the current type you need.
3. Insert the vehicle connector charging gun into your vehicle's inlet.
4. The screen showing CONNECTED, then start charging.
5. Middle bottom you can make time delay chose the 1-9hour charge later.
6. Right bottom you can choose charging hours.
